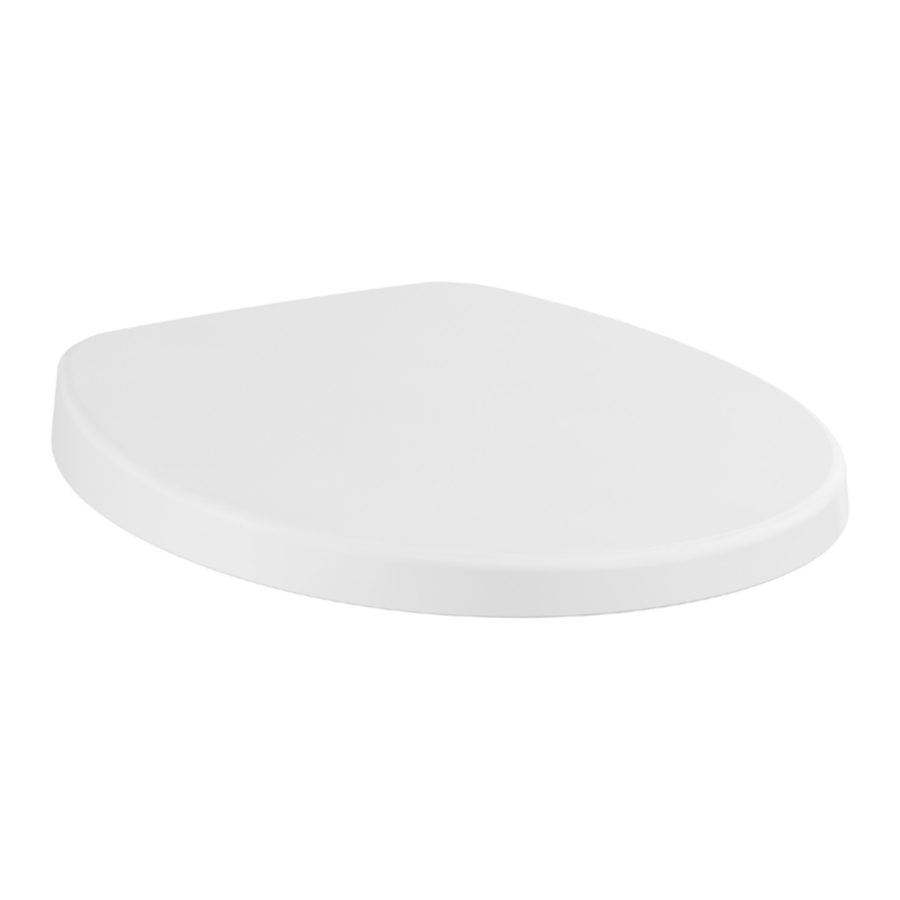

American Standard Champion Manual

REGISTER WARRANTY

Try the easy-scan QR code to quickly enter your information or find your product's detailed warranty here:
AmericanStandard.ca/support/warranty

Registering allows you to keep your product information safe, and us the ability to contact you in the event of a product recall or any news about your purchase.

And if ever you have a question or need help...?
Call us at 1-855-815-0004

INSTALLATION PREPARATION

Thank you for selecting American Standard – the benchmark of fine quality for over 150 years. To ensure this product is installed properly, please read these instructions carefully before you begin. Certain installations may require professional help.

  • Please unpack carefully and identify all parts needed for installation by using the Box Contents page as a reference. Inspect the product and report any damages or missing parts immediately to customer care by calling (800) 442-1902. Follow the prompts for consumer/bathing. Local building codes vary by location. Observe all local plumbing and building codes.
    NOTE: Take extra care in handling the surface.
    Use only non-abrasive cloths to avoid scratching.
    Parts needed for installation
  • Wear protective equipment during installation to avoid injury.
  • Please keep these instructions for after care and customer service details.

Image shown may vary from product purchased.

INSTALLATION

TOP MOUNT WITH RUBBER PLUG

INSTALLATION - TOP MOUNT WITH RUBBER PLUG
Side view of the toilet seat installation parts.

  1. For ease of installation of black rubber plugs, insert steel bolt (capture a few threads), and wet the lower area with some water (soapy water works best).
  2. NOTE: FLANGE MUST REMAIN ABOVE THE SURFACE.
    DO NOT ALLOW PLUG TO FALL THROUGH!

  3. Once plug is in place, unscrew and remove bolts and keep nearby for step 6.
  4. Attach Hinge Gaskets to bottom of Hinge Base. Make sure Alignment Tabs on Hinge Gaskets match the slots under the Hinge Base.
    Align hinges over holes on toilet bowl.
  5. Insert the plastic adjustment washers with flat surface facing up.
  6. When the seat is properly aligned with the front edge of the bowl, slip the bolt through the washer and the bowl bolt holes.
  7. Once properly positioned, tighten the bolts with your wrench.
  8. The hinge cap covers are designed to snap lock on to the hinge. Position the hinge covers and push down on the cover.

BOTTOM MOUNT WITH PLASTIC WING NUT

INSTALLATION - BOTTOM MOUNT WITH PLASTIC WING NUT
Side view of the toilet seat installation parts.

  1. Attach Hinge Gaskets to bottom of Hinge Base. Make sure Alignment Tabs on Hinge Gaskets match the slots under the Hinge Base.
    Align hinges over holes on toilet bowl.
  2. The installation kit includes two sets of stainless washers: 2 with center holes and 2 with offset holes.
    The offset washers hole can be set forward or back allowing the seat to be moved back from or to the forward edge of the bowl rim.
  3. When the seat is properly aligned with the front edge of the bowl, slip the bolt through the washer and the bowl bolt holes.
  4. With the plastic bolts installed, thread the winged plastic nuts on to the bolts.
  5. Tighten the bolts using a screwdriver.
  6. The hinge cap covers are designed to snap lock on to the hinge. Position the hinge covers and push down on the cover.

BOTTOM MOUNT WITH ZIP NUTS


Side view of the toilet seat installation parts.

  1. Attach Hinge Gaskets to bottom of Hinge Base. Make sure Alignment Tabs on Hinge Gaskets match the slots under the Hinge Base.
    Align hinges over holes on toilet bowl.
  2. The installation kit includes two sets of stainless washers: 2 with center holes and 2 with offset holes.
    The offset washers hole can be set forward or back allowing the seat to be moved back from or to the forward edge of the bowl rim.
  3. When the seat is properly aligned with the front edge of the bowl, slip the bolt through the washer and the bowl bolt holes.
  4. When opened, nuts can slip over threads for rapid installation.
  5. When closed nuts lock onto threads allowing final tightening with screwdriver or supplied attachment handles.
  6. The hinge cap covers are designed to snap lock on to the hinge. Position the hinge covers and push down on the cover.
  7. Tighten the bolts using a screwdriver.
  8. REMOVAL
  9. REMOVAL
  10. REMOVAL

BOTTOM MOUNT WITH POSTS FOR METAL HINGES

INSTALLATION - BOTTOM MOUNT WITH METAL HINGE POSTS
Side view of the toilet seat installation parts.

  1. Align holes on hinge and hinge gasket. Press fit to secure in place.
    INSTALLING BOTTOM MOUNT WITH METAL HINGES - Step 1
  2. Screw threaded rod into hinge.
    INSTALLING BOTTOM MOUNT WITH METAL HINGES - Step 2
  3. Align seat on bowl by inserting the threaded rods into the holes on the bowl.
  4. Secure seat in place by tightening plastic nuts onto threaded rods.

CARE AND CLEANING

When cleaning your toilet seat wash it with a mild, soapy water: rinse the seat thoroughly with clear water and dry with a soft cloth.
Avoid detergents, disinfectants, or cleaning products in aerosol cans. Never use abrasive scouring powders on your seat. Some bathroom chemicals and cosmetics may damage the seat's finish. After installation, check the tightness of the bolts from time to time to ensure a tight fit.

TELL US WHAT YOU THINK!
Please leave us a product review or story at AmericanStandard.com/reviews

Find installation videos at
youtube.com/americanstandard

Register your warranty and sign up for an idea-filled newsletter at
AmericanStandard.ca/support/warranty

PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION IMPORTANT:
Registration of the seat must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*

INSTRUCTIONS: Register your seat at www.americanstandard.com. Please save your proof of purchase (sale receipt). If you need assistance or do not have access to our website, please contact American Standard Customer Care at: (800) 442-1902. An American Standard representative will assist in completing the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.

SHARE YOUR NEW PRODUCT!
Tag us @american_standard on Instagram and show us how your new product looks.

WANT MORE INFO?
For questions or help call us at 855-815-0004, or visit AmericanStandard.ca

UNITED STATES
American Standard Brands
865 Centennial Ave.
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States, warranty information may also be obtained by calling the following toll free number: (855) 815-0004 www.AmericanStandard.com

CANADA
LIXIL Canada, Inc.
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: (800) 387-0369
www.AmericanStandard.ca
