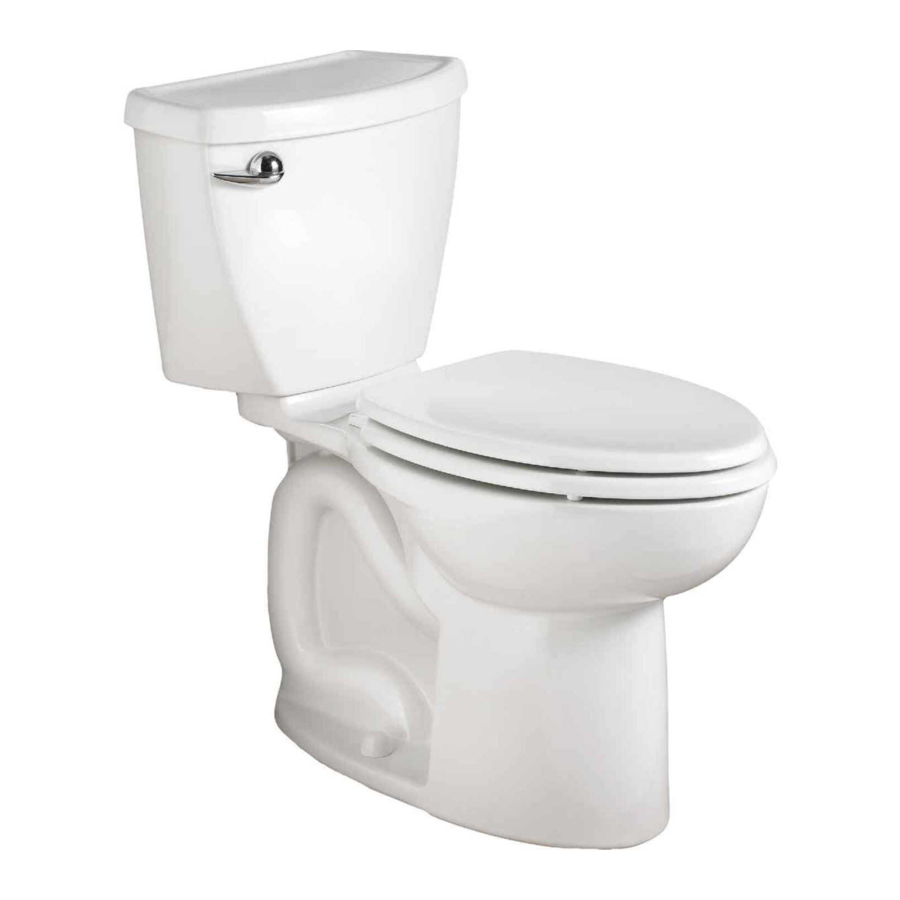

American Standard Cadet 3 Manual

Inside The Box

Before You Start

For Assistance Call Customer Care at: (800) 442-1902
www.americanstandard.com

If Removing An Existing Toilet
Turn Off Water Supply

Flush to remove water from tank; sponge remaining water from bowl before removing toilet.

Clean Flange

If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gasses.

Installation Instructions

BACK-TO-BACK INSTALLATION

Recommended fitting type for back-to-back installations.

Depending upon your plumbing and venting conditions, the flow from this toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.

BACK-TO-BACK INSTALLATION - Step 1

Press Firmly
BACK-TO-BACK INSTALLATION - Step 2

Apply Weight Evenly. Do Not Move After Placement. Water Tight Seal May Break.
BACK-TO-BACK INSTALLATION - Step 3

Hand Tighten Only. Do Not Overtighten.
BACK-TO-BACK INSTALLATION - Step 4

Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china contact.
BACK-TO-BACK INSTALLATION - Step 6
information NOTE: To ease installation, push down on the top of the tank while tightening handles.

Use Handle From Step 6
BACK-TO-BACK INSTALLATION - Step 7

Connect Water Supply Line. (Sold Separately) Hand Tighten Nut.
Turn On Water Supply

Seat Adjustment
BACK-TO-BACK INSTALLATION - Step 9

Overtightening of water supply line nuts could result in breakage and potential flooding. If the connection leaks after hand tightening, replace the supply line. Do not use any type of sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.

Adjust Water Level To Level Indicated On Tank By Turning Water Level Adjustment Knob To Move Float Cup Up Or Down.
BACK-TO-BACK INSTALLATION - Step 10

Care And Cleaning

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth.

Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.

Troubleshooting Guide

See Step 9 For Diagram

Problem	Possible Cause	Corrective Action
Does not flush	Water supply valve closed. Supply line blocked. Flush valve chain too loose or disconnected. Sand or debris lodged in water control.	Open valve and allow water to fill tank. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble. Readjust chain length as required. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmasterguide.pdf
Poor or sluggish flush	Bowl water level too low. Supply valve partly closed. Partially clogged trapway and/or drain pipe and/or vent. Supply pressure too low.	Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damaged. Open supply valve fully. Be sure that proper supply tube size is used. Remove obstruction. Consult a plumber if necessary. Normal supply pressure must be at least 20 psi.
Toilet leaks	Poor supply line connection. Poor bowl to tank/floor connection.	Review Step 8 of installation procedure. Review Step 1 through 6 of installation procedure.
Toilet does not shut off	Flapper seal leaking or deformed. Sand or debris lodged in water control. Flush valve chain too tight, holding flapper open.	Clean debris from seal surface. Replace flapper seal as needed. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmasterguide.pdf Readjust chain length as needed.
Toilet bowl rocks after installation	Wax ring not fully compressed. Floor not level.	Retighten bowl-to-floor knobs. Use toilet shims and /or place a bead of caulk around the base of the toilet.

Warranty

This toilet comes with a limited lifetime warranty on chinaware, a limited 5 year warranty on all mechanical parts of the toilet, and a limited 1 year warranty on the toilet seat if included with product.

In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario Canada L5R 3M3
Toll Free: (800) 387-0369
www.americanstandard.ca

In Mexico:
American Standard B&K Mexico S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx

In the United States:
American Standard Brands P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Customer Care

For residents of the United States, warranty information may also be obtained by calling the following toll free number: (800) 442-1902

www.americanstandard.com

Registration of the toilet must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*

INSTRUCTIONS: Register your toilet at www.americanstandard.com. Please save your proof of purchase (sale receipt).

If you need assistance or do not have access to our website, please contact American Standard Customer Care at: (800) 442-1902. An American Standard representative will assist in completing the warranty registration.

* In California, your warranty rights remain intact even if you do not complete the registration process.
