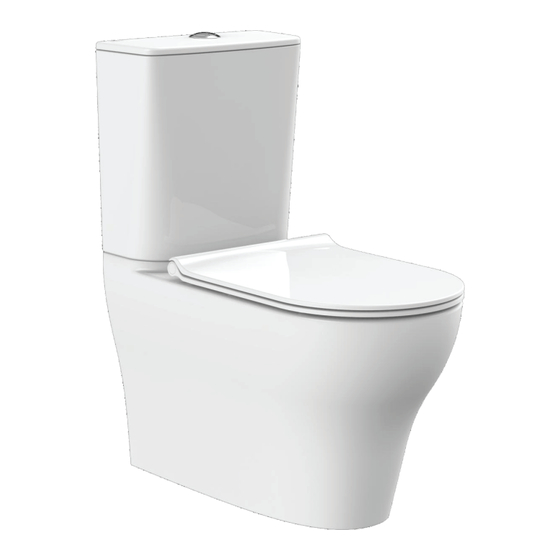

CLOSE COUPLE TOILET
Installation Manual
Cygnet Hygiene Rim Over-height Square
Cygnet Hygiene Rim Square
Back Inlet
The more
stars the more
water efficient
3.5
litres
average flush
4.5 L per full flush / 3 L per half flush
In accordance with AS/NZS 6400
Licence No. 0050
LIXIL (Thailand) Public Company Limited
x1
x1
x1
x1
-1-
x1
x1
x1
Option
1
x1
x1
Option
2
Sep. 2022
M33159 Rev.03
Advertisement
Related Manuals for American Standard Cygnet Hygiene Rim Over-height Square
Summary of Contents for American Standard Cygnet Hygiene Rim Over-height Square
- Page 1 CLOSE COUPLE TOILET Installation Manual Cygnet Hygiene Rim Over-height Square Cygnet Hygiene Rim Square Back Inlet Option Option The more stars the more water efficient litres average flush 4.5 L per full flush / 3 L per half flush In accordance with AS/NZS 6400 Licence No.
- Page 2 Cygnet Hygiene Rim Over-height Square w/ normal S&C FINISHED FLOOR FINISHED FLOOR 140-260 Cygnet Hygiene Rim Square w/ normal S&C FINISHED FLOOR FINISHED FLOOR 140-260 Cygnet Hygiene Rim Over-height Square w/ Spalet E-bidet 330mm WATER SUPPLY 300mm FINISHED FLOOR FINISHED FLOOR...
- Page 3 2.1 / 2.2 Ø10 Option 2: Spalet Installation Model Height (A) Cygnet Hygiene Rim Over-height Square 750/800 mm. Cygnet Hygiene Rim Square 700/750 mm. ROUGHING - IN CONNECTOR ROUGHING - IN CONNECTOR ROUGHING-IN CONNECTOR CUTOUT (B) CUTOUT (B) CUTOUT (B) 140-149 mm.
- Page 4 Ø22 The exible hose in this cistern must not be submerged in water at any time. 12.1 / 12.2 13.1 / 13.2 1. Cistern is installed properly 2. All moving components operate freely 3. All couplings are tightened correctly 4. Check carefully for leaks 5.
