NEO MODERN

CCAS2073/CCAS2074

Installation Manual

Remark: This installation manual is only for installing the ceramic parts. For the tank trim or seat & cover installing,

please refer to relative manual.

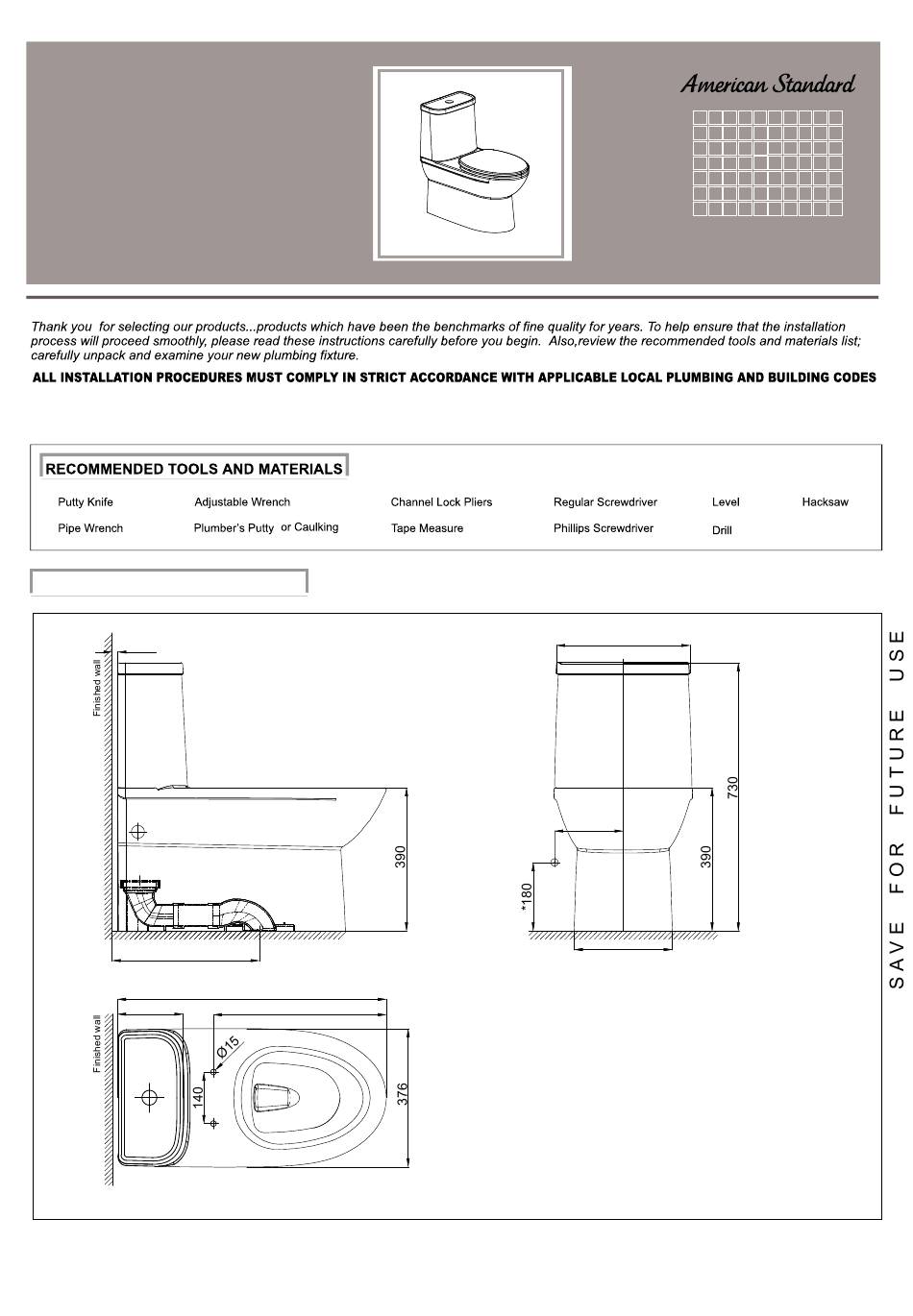

ROUGHING-IN DIMENSIONS

0~30

305/400

179

Finished floor

735

470

*180

Dimensioning diagrams are provided for each model.

Note: dimensions are nominal and may vary within the

range of manufacturing tolerances.

- 1 -

363

285

Finished floor

Unit: mm

Jan .19

Rev.05

Need help?

Do you have a question about the NEO MODERN CCAS2073 and is the answer not in the manual?

Page 1 NEO MODERN CCAS2073/CCAS2074 Installation Manual Remark: This installation manual is only for installing the ceramic parts. For the tank trim or seat & cover installing, please refer to relative manual. ROUGHING-IN DIMENSIONS 0~30 *180 Finished floor Finished floor 305/400 Dimensioning diagrams are provided for each model. Note: dimensions are nominal and may vary within the range of manufacturing tolerances.
Page 2 PIPING PREPARATION Unit: mm MARK MOUNTING HOLES A. Insert the flange into the waste outlet B. Set proprely the VC on the floor, mark pipe, ensuring that the arrow is pointing the location to be drilled. (the figure toward the floor. just as reference) PUNCHING INSTALL PLASTIC TRAPWAY...
Page 3 ASSEMBLE THE TANK POSITION THE TOILET Assemble the tank fittings. Lift the toilet with the tank trim assembly, position the toilet on the floor as picture shown. Attach the water supply hose properly to the water control valve on the tank and tighten snugly by hand. CHECK LEVEL After the above installation, check level of the toilet.
Page 4 Do not use cleansers in tank. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any tank fitting damage caused by the use of cleaners containing chlorine (calcium hypochlorite).
