CLOSE COUPLE TOILET
Installation Manual

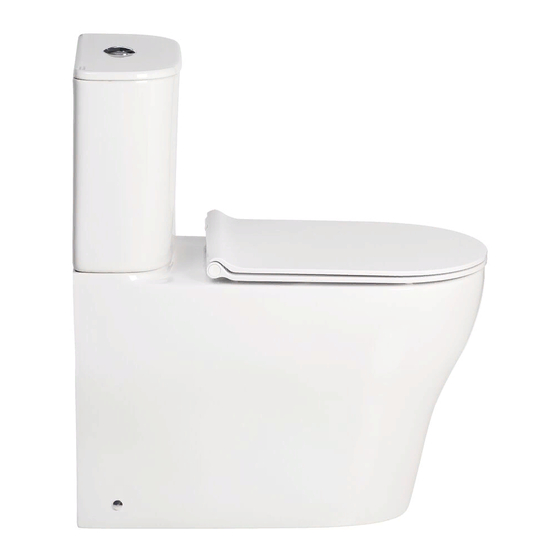

Cygnet Hygiene Rim Over-height Round
Cygnet Hygiene Rim Round
Back Inlet
The more
stars the more
water efficient
3.5
litres
average flush
4.5 L per full flush / 3 L per half flush
In accordance with AS/NZS 6400
Licence No. 0050
LIXIL (Thailand) Public Company Limited
x1
x1
x1
x1
-1-
x1
x1
x1
x1
x1
Apr. 2020
Mxxxx Rev.00
Advertisement
Related Manuals for American Standard Cygnet Hygiene Rim Over-height Round 1810107
Summary of Contents for American Standard Cygnet Hygiene Rim Over-height Round 1810107
- Page 1 CLOSE COUPLE TOILET Installation Manual Cygnet Hygiene Rim Over-height Round Cygnet Hygiene Rim Round Back Inlet The more stars the more water efficient litres average flush 4.5 L per full flush / 3 L per half flush In accordance with AS/NZS 6400 Licence No.
- Page 2 Cygnet Hygiene Rim Over-height Round FINISHED FLOOR FINISHED FLOOR 140-260 Cygnet Hygiene Rim Round FINISHED FLOOR FINISHED FLOOR 140-260 Ø10 Ø10 Model Height (A) Cygnet Hygiene Rim Over-height Round 750 mm. Cygnet Hygiene Rim Round 700 mm. Apr. 2020 Mxxxx Rev.00...
- Page 3 ROUGHING - IN CONNECTOR CUTOUT (B) 140-149 mm. 10 mm. 150-159 mm. 20 mm. CONNECTOR CONNECTOR ROUGHING - IN ROUGHING-IN CUTOUT (B) CUTOUT (B) 160-170 mm. 30 mm. 221-230 mm. 90 mm. 231-240 mm. 100 mm. 171-180 mm. 40 mm. 241-250 mm.
- Page 4 Ø22 The flexible hose in this cistern must not be submerged in water at any time. IMPORTANT Before turning on water supply check: 1. Cistern is installed properly 2. All moving components operate freely 3. All couplings are tightened correctly Now ll cistern and recheck water level: 4.
