TP-Link Omada EAP650 Quick Installation Manual page 2

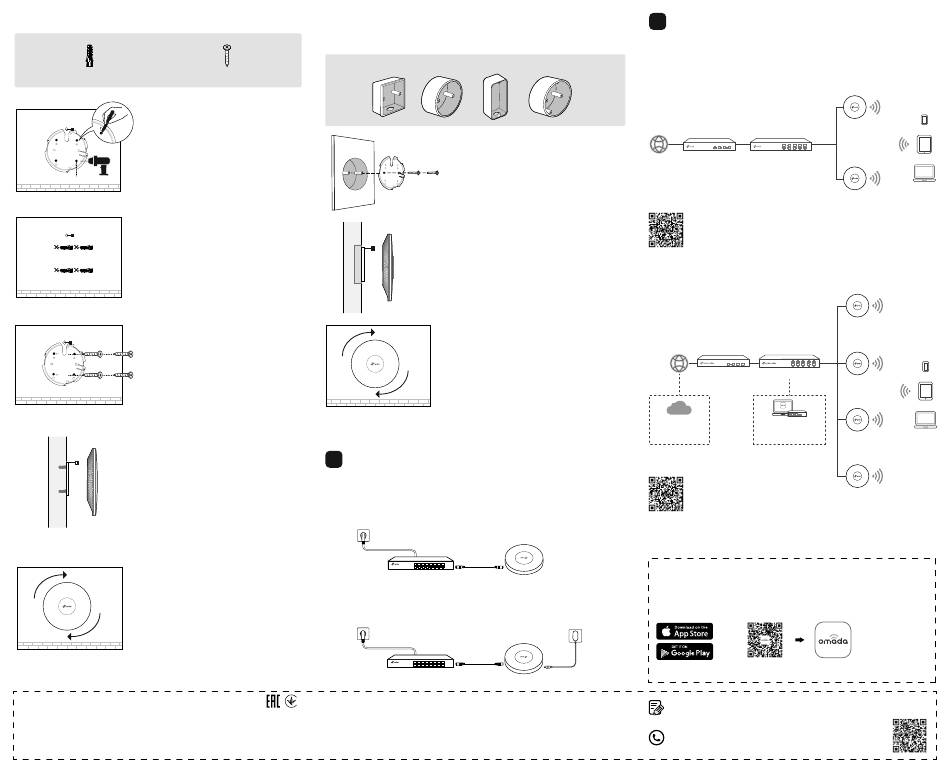

Option 3: Wall Mounting
Plastic Wall Anchors
1
If your Ethernet cable feeds through the wall,
position the mounting bracket below the
cable hole.
Mark positions for the screw holes, then drill
holes at the marked positions.
Φ 7.6 mm (19/64 in)
2
Insert the plastic wall anchors into the holes.
3
Secure the mounting bracket to the wall by
driving the self-tapping screws into the
anchors. Make sure that the shoulders of the
mounting bracket are on the outside.
4
Connect the Ethernet cable to the Ethernet
port on the EAP.
5
Attach the EAP to the mounting bracket, then
rotate it until it locks into place.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Adapter shall be installed near the equipment and shall be easily accessible.
• The EAP can be powered only by a power adapter or a PSE device (such as a PoE switch) which complies
with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1.
Option 4: Junction Box Mounting
Prepare the cables and the junction box in advance. Ensure that the mounting holes align
to your junction box.
*Compatible junction boxes:
Self-tapping Screws
3
Power Supply
Power on the EAP by a power adapter or a PSE device (such as a PoE switch).
Option 1: Via PoE Switch
Connect the EAP to a PoE switch via an Ethernet cable.
Note: For PoE power supply specifications, refer to the product label.
Option 2: Via Power Adapter
Connect the EAP to a standard electrical wall outlet via a power adapter.
Note: Power adapter is not included in the package contents of certain models. For details, refer to the product specifications or
datasheet. For power supply specifications, refer to the product label.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU and (EU) 2015/863.
The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/
1
Route the cables through the square cable hole
on the mounting bracket, and secure the
mounting bracket to the junction box using
screws.
2
Connect the Ethernet cable to the Ethernet
port on the EAP.
3
Attach the EAP to the mounting bracket, then
rotate it until it locks into place.
PoE Switch
Power Adapter
Switch
4
Software Configuration
Option 1: Standalone Mode
Configure and manage EAPs separately on the standalone web page (https://tplinkeap.net).
Note: The EAP's standalone web page is inaccessible while the EAP is managed by a Controller.
Gateway/Router Switch
Scan for Standalone EAP Start Guide
Option 2: Controller Mode
Configure and manage EAPs (and other Omada devices) in batches on an Omada Controller.
Gateway/Router Switch
Controller
Or
Omada Omada
Cloud-Based Hardware/Software
Controller Controller
Scan for Omada Controller Start Guide
For more configurations, refer to the user guides of the Controller and EAPs. The guides
can be found in the download center of our official website:
https://www.tp-link.com/support/download/?type=smb
Omada App
With the TP-Link Omada app, you can access and manage your Omada devices at a
local site or remotely with a tap on your phone. You can download and install the
TP-Link Omada app from the App Store or Google Play.
or
Scan for Omada Omada
To ask questions, find answers, and communicate with TP-Link users or engineers,
please visit https://community.tp-link.com/business to join TP-Link Community.
For technical support, the user guide and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the QR
code.
EAP
Clients
EAP
EAP
EAP
Clients
EAP
EAP
