TP-Link Omada EAP650-Desktop Quick Installation Manual

Quick Installation Guide
Desktop Access Point
Setup Videos Download Center
Note: This guide uses EAP650-Desktop for demonstration. Images may differ from your actual product.
©2024 TP-Link 7106511611 REV1.0.1
1
Hardware Overview
LED Indication
Blue On: Power supply is normal.
Flash Orange: Power supply is insufficient.
Power
Off: Power is off, or LEDs are turned off.
On: The EAP is initializing or working normally.
Off: The EAP is working abnormally.
Flash: • Flash Twice: Initialization is complete.
System
• Flash Once per Second: The EAP is upgrading or resetting.
• Quick Flash: The Controller is locating the EAP.
• Sustained Flash: The EAP is in the isolated state.
Green On: The port is receiving 802.3bt PoE power.
IN
Orange On: The port is receiving non-802.3bt PoE power
(ETH0)
Off: The port is not connected or not receiving PoE power.
On: The port is supplying power to a PoE powered device.
OUT
Off: The port is not connected or not supplying power.
(ETH1)
On: The port is linked but has no activity.
Link/Act
Flash: The port is transmitting or receiving data.
(ETH0~ETH3)
Off: The port is not linked.
On: The SIP account is registered successfully.
Slow Flash: The phone is off hook.
FXS
Quick Flash: The phone is ringing.
Off: No SIP account is registered.
Button Description
With the EAP powered on, press and hold the button for about 5
seconds until the System LED flashes, then release the button.
RESET
The EAP will restore to factory settings.
Press the button to turn on/off the LEDs.
LED
Interface Description
Power Connect to a power socket via the provided power adapter.
ETH0 Connect to a power sourcing equipment for both data
(PoE IN) transmission and PoE input .
**
ETH1 Connect to a PoE powered device for both data transmission and
(PoE OUT) PoE output .
***
ETH2 ~ ETH3 Connect to a client device to transmit data.
FXS Connect to a phone to make and receive calls over the internet.
When the Locate feature is activated in the Omada Controller, the System LED will flash quickly for 10
*
minutes to help you locate and identify the device. You can disable this feature manually to stop the device
from flashing.
802.3at/bt PoE input is required. 802.3af and passive PoE inputs will disable 5 GHz band and PoE output and
**
thus not recommended.
The device can supply PoE output power only when it is receiving 802.3at/bt PoE input power.
***
2

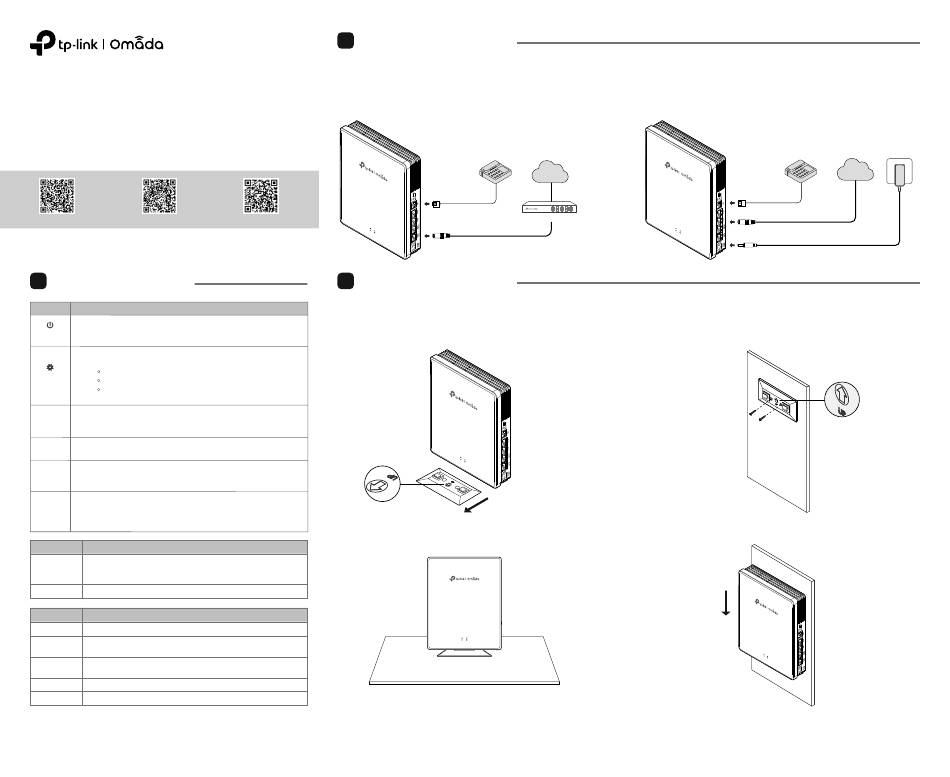

Hardware Connection
The EAP can only be powered by a power adapter, or by a PSE device (such as a PoE switch) that complies with Power Source Class 2 (PS2) or
Limited Power Source (LPS) defined in the standard of IEC 62368-1.
Note: For power supply specifications, refer to the product label.
Option 1: Power by PoE Switch
Business Community
3
Hardware Installation
Option 1: Desktop Mounting
1. Attach the EAP to the provided multi-functional base as shown in
the figure.
*
.
**
2. Place the EAP vertically on a horizontal surface (such as a desktop
or shelf) that is out of children's reach.
Internet
Phone
Connect to FXS port
PoE Switch
Connect to ETH0 (PoE IN) port
Option 2: Power by Power Adapter
Phone
Connect to FXS port
Connect to an Ethernet port
Connect to Power port
Option 2: Wall Mounting
1. Secure the provided multi-functional base to the wall in the correct
direction with the provided screws.
2. Attach the EAP to the base as shown in the figure.
Power Adapter
Internet
