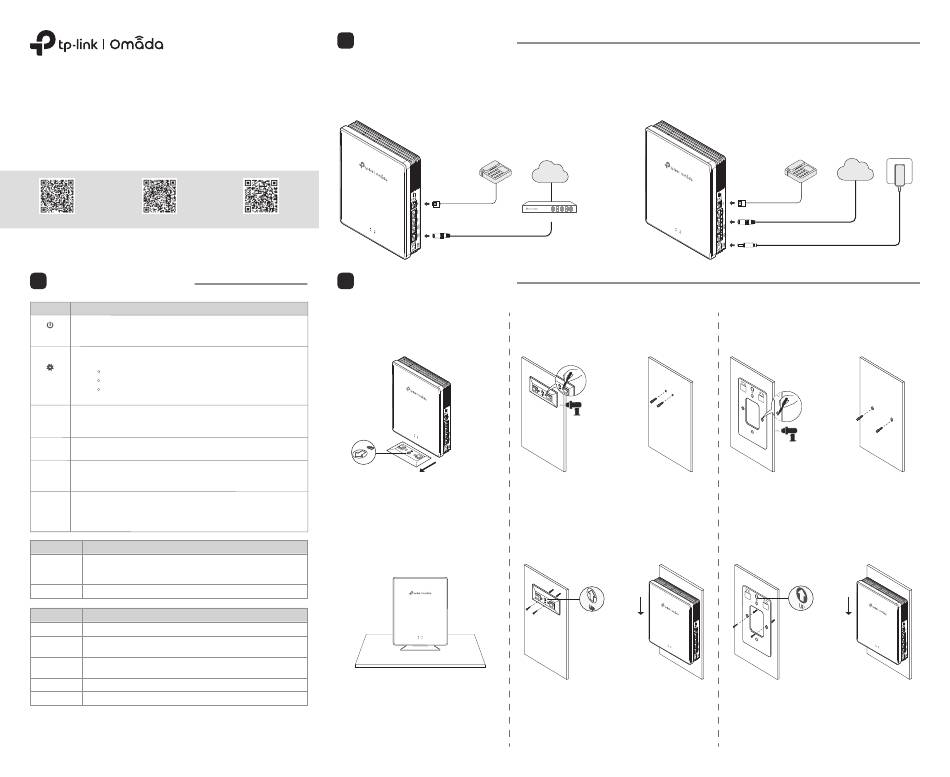

TP-Link Omada EAP650GP-Desktop Quick Installation Manual

Quick Installation Guide
Desktop Access Point
Setup Videos Download Center
Note: This guide uses EAP650-Desktop for demonstration. Images may differ from your actual product.
©2025 TP-Link 7106511976 REV1.1.0
1
Hardware Overview
LED Indication
Blue On: Power supply is normal.
Flash Orange: Power supply is insufficient.
Power
Off: Power is off, or LEDs are turned off.
On: The EAP is initializing or working normally.
Off: The EAP is working abnormally.
Flash: • Flash Twice: Initialization is complete.
System
• Flash Once per Second: The EAP is upgrading or resetting.
• Quick Flash: The Controller is locating the EAP.
• Sustained Flash: The EAP is in the isolated state.
Green On: The port is receiving 802.3bt PoE power.
IN
Orange On: The port is receiving non-802.3bt PoE power
(ETH0)
Off: The port is not connected or not receiving PoE power.
On: The port is supplying power to a PoE powered device.
OUT
Off: The port is not connected or not supplying power.
(ETH1)
On: The port is linked but has no activity.
Link/Act
Flash: The port is transmitting or receiving data.
(ETH0~ETH3)
Off: The port is not linked.
On: The SIP account is registered successfully.
Slow Flash: The phone is off hook.
FXS
Quick Flash: The phone is ringing.
Off: No SIP account is registered.
Button Description
With the EAP powered on, press and hold the button for about 5
seconds until the System LED flashes, then release the button.
RESET
The EAP will restore to factory settings.
Press the button to turn on/off the LEDs.
LED
Interface Description
Power Connect to a power socket via the provided power adapter.
ETH0 Connect to a power sourcing equipment for both data
(PoE IN) transmission and PoE input .
**
ETH1 Connect to a PoE powered device for both data transmission and
(PoE OUT) PoE output .
***
ETH2 ~ ETH3 Connect to a client device to transmit data.
FXS Connect to a phone to make and receive calls over the internet.
When the Locate feature is activated in the Omada Controller, the System LED will flash quickly for 10
*
minutes to help you locate and identify the device. You can disable this feature manually to stop the device
from flashing.
802.3at/bt PoE input is required. 802.3af and passive PoE inputs will disable 5 GHz band and PoE output and
**
thus not recommended.
The device can supply PoE output power only when it is receiving 802.3at/bt PoE input power.
***
2
Hardware Connection
The EAP can only be powered by a power adapter, or by a PSE device (such as a PoE switch) that complies with Power Source Class 2 (PS2) or
Limited Power Source (LPS) defined in the standard of IEC 62368-1.
Note: For power supply specifications, refer to the product label.
Option 1: Power by PoE Switch
Business Community
3
Hardware Installation
Option 1: Desktop Mounting
1. Attach the EAP to the multi-functional base.
*
.
**
2. Place the EAP vertically on a horizontal surface
(such as a desktop or shelf) that is out of
children's reach.
Internet
Phone
Connect to FXS port
PoE Switch
Connect to ETH0 (PoE IN) port
Option 2: Wall Mounting
1. Mark and drill holes for
mounting.
Diameter: 7.6 to 9.0 mm
Depth ＞ 38 mm
3. Secure the multi-functional
base to the wall in the
correct direction.
Option 2: Power by Power Adapter
Connect to FXS port
Connect to an Ethernet port
Connect to Power port
Option 3: Wall Mounting
(using the multi-functional base)
1. Mark and drill holes for
2. Insert the plastic wall
mounting.
anchors into the holes.
Diameter: 7.6 to 9.0 mm
Depth ＞ 38 mm
4. Attach the EAP to the 3. Secure the mounting
base. bracket to the wall in the
correct direction.
Power Adapter
Internet
Phone
(using the mounting bracket)
2. Insert the plastic wall
anchors into the holes.
4. Attach the EAP to the
bracket.
