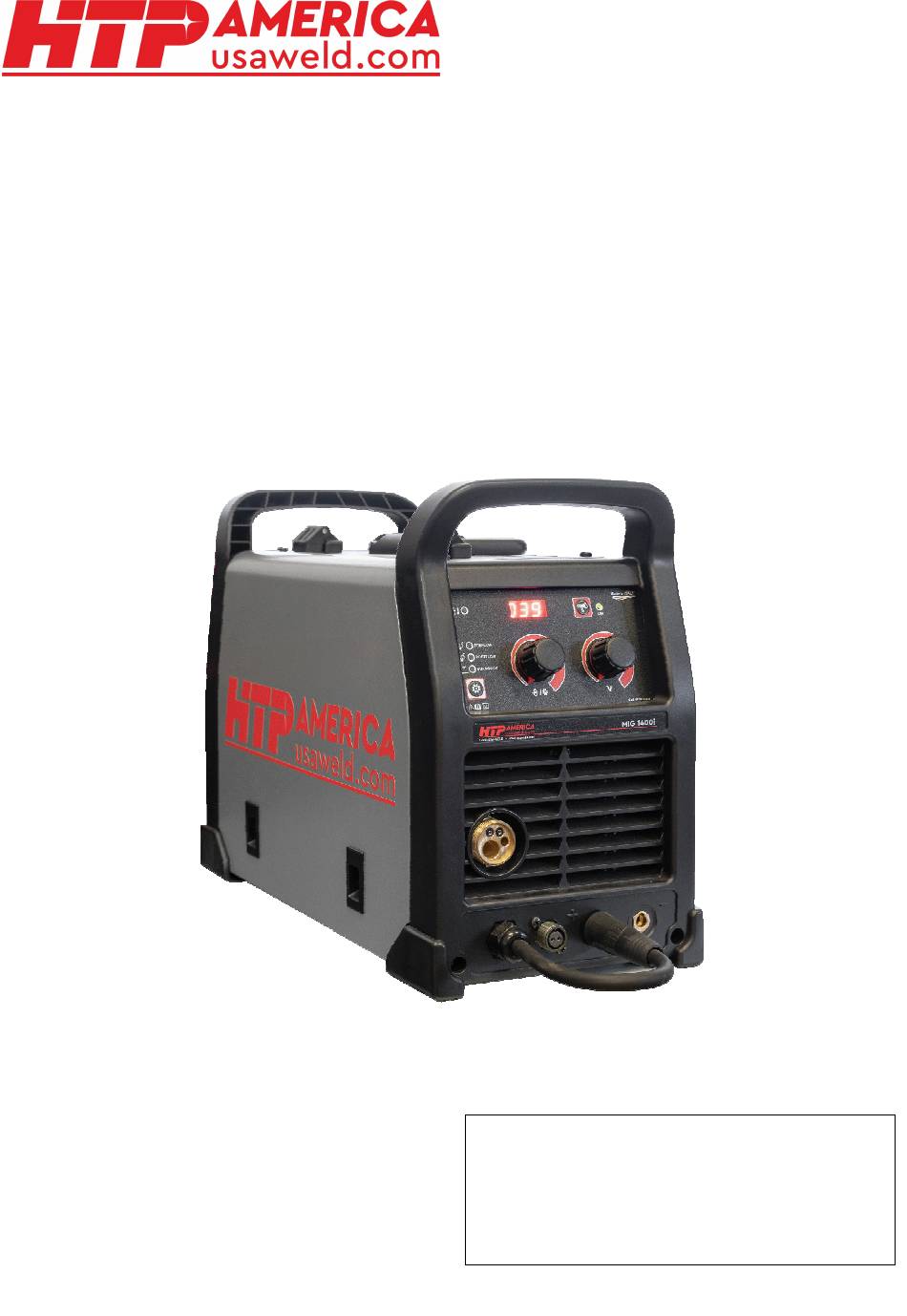

- Page 1 MIG 1400i 180 Joey Drive Elk Grove Village, IL 60007-1304 Ph.: (847) 357-0700 Fax: (847) 357-0744 Web: www.usaweld.com...
-
Page 3: Warranty
Thirty (30) Days after discovery. HTP America, Inc. has reserved the right to make changes in design or add any improvements to its products, at any time, without incurring any obligation to install the same on equipment. -
Page 4: Safety Suggestions
3) SAFETY SUGGESTIONS It is forbidden for people with PACEMAKERS to use or come near the machine. When welding near sensitive electronics, for example in hospitals or assisted living homes or around computers or computer control modules in vehicles, we STRONGLY recommend turning off HF (high-frequency arc start). -
Page 5: Electric Shock Can Kill
ELECTRIC SHOCK CAN KILL Exposed, electrically hot conductors, other bare metal in the welding circuit, or ungrounded, electrically hot equipment can fatally shock a person whose body becomes a conductor. Do not stand, sit, lie, lean on, or touch a wet surface when welding. - Disconnect the power supply before working on the welding machine. -
Page 7: Specifications
4) SPECIFICATIONS Mig 1400i Single Phase : 120V Input Voltage ( volts ) : Mig 1400i MIG MANUAL Welding Modes Pre-Flow ( Seconds ) MIG : 0,1 - 1 Post Flow ( Seconds ) MIG : 0,1 – 10 Burn Back YES ( adjustable ) . - Page 8 DATA PLATE MIG 1400i...
-
Page 9: Front Panel Connections
FRONT PANEL CONNECTIONS Fig. 1 Z – Central connector for MIG gun. Connects MIG welding guns and push-pull guns to the machine. The Euro Connector includes a trigger connection as well as a gas connection. The wire from the internal wire feed unit also feeds through the Euro Connector. U –... -
Page 10: Rear Connections
REAR CONNECTIONS Fig. 2 P – Power switch Q – Port for MIG and Spool Gun shielding gas R – Input power cable... -
Page 11: Electrical Connections
(no other lights or grinders or any other appliances shall share the circuit with the welding machine). The Mig 1400i can be operated on a 15amp 110/120volt circuit but with even more limitations in regard on maximum output and duty cycle, for best results welding on 110/120 volt a dedicated 20amp circuit is recommended. -
Page 12: Front Panel Controls
FRONT PANEL CONTROLS Fig. 3 PRE FLOW LED ; POST FLOW LED ; BURN BACK LED; SETTINGS BUTTON; WIRE SPEED / SETTINGS-KNOB ; VOLTS-KNOB ; SPOOL GUN LED ; SPOOL GUN BUTTON; DISPLAY; OVER TEMPERATURE LED;... -
Page 13: Factory Reset
MIG MANUAL MODE SPOOL GUN SETTING In order to use the Spool Gun Kit 601986000L needs to be added. Turn left knob ( Fig.3,ref.5 ) to set the wire Press the button SPOOL GUN ( Fig.3,ref.8 ) feed speed and turn right knob ( Fig.3,ref.6 ) to activate the function. - Page 14 WIRING DIAGRAM – MIG 1400 i...
-
Page 15: Exploded View
EXPLODED VIEW... - Page 16 PART LIST – MIG 1400i Position Description Part # Front Label 66180400: Mig 1400i Logo / Name Label Cable Relief 66091200 Socket 64420000 Knob 66106200 Potentiometer 61383700 Front Plastic Panel 6616210K Front Panel 6209980K Logic Front Panel PCB 601997000L Insulating Support...
- Page 17 EXPLODED VIEW WIRE FEEDER N° DESCRIPTION CODE 2- R Wire drive Assembly SF14030, Motor SF 24V 40W 613849000L Retaining screw 6346900000 Torch adapter 6349900000 Connecting screw M12x1.5x35mm,brass 6362500000 Current-gas connection screw,brass 6362600000 Wire guide tube 5 x 2 x 57mm, brass 6363700000...
- Page 18 ROLLS SPECIFICATIONS TYPE OF GROOVES ROLL PRESSURE WIRE MILD STEEL / STAINLESS STEEL/ CuSi 63160 .023/.030 63162 .030/.035 ALUMINUM 63464 .035 AL FLUX CORED 63498 .035 Flux...
