2. Removing the MAIN UNIT (Continued)
5) Remove 7 screws from the top of MAIN UNIT.
6) Unsolder 2 points at the antenna connector.
7) Remove the MAIN UNIT from the chassis.

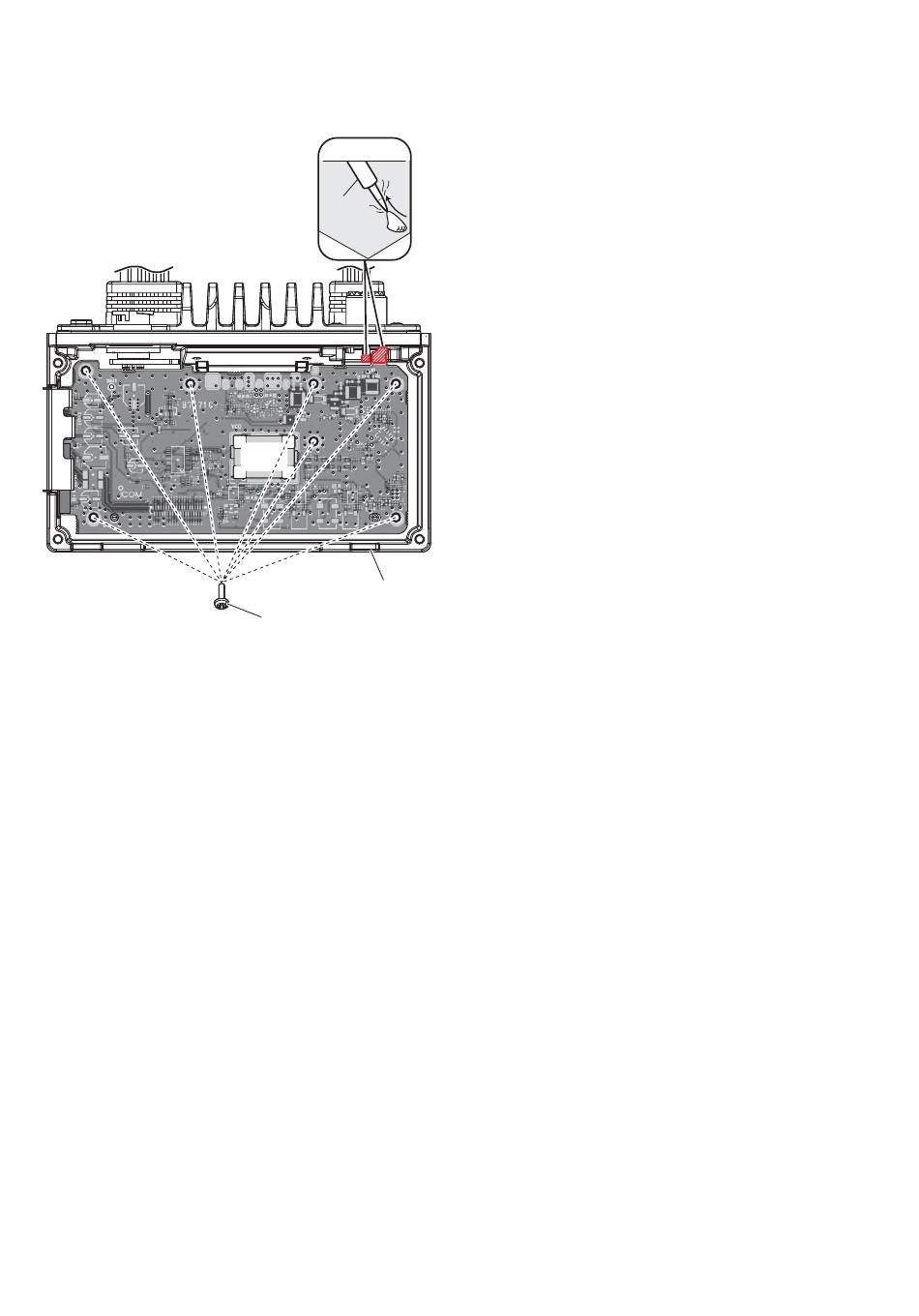

(Top view)
MAIN UNIT
MAIN UNIT
MAIN UNIT
UNSOLDER
Solder
remover
Chassis
Screw x7
3 - 2
