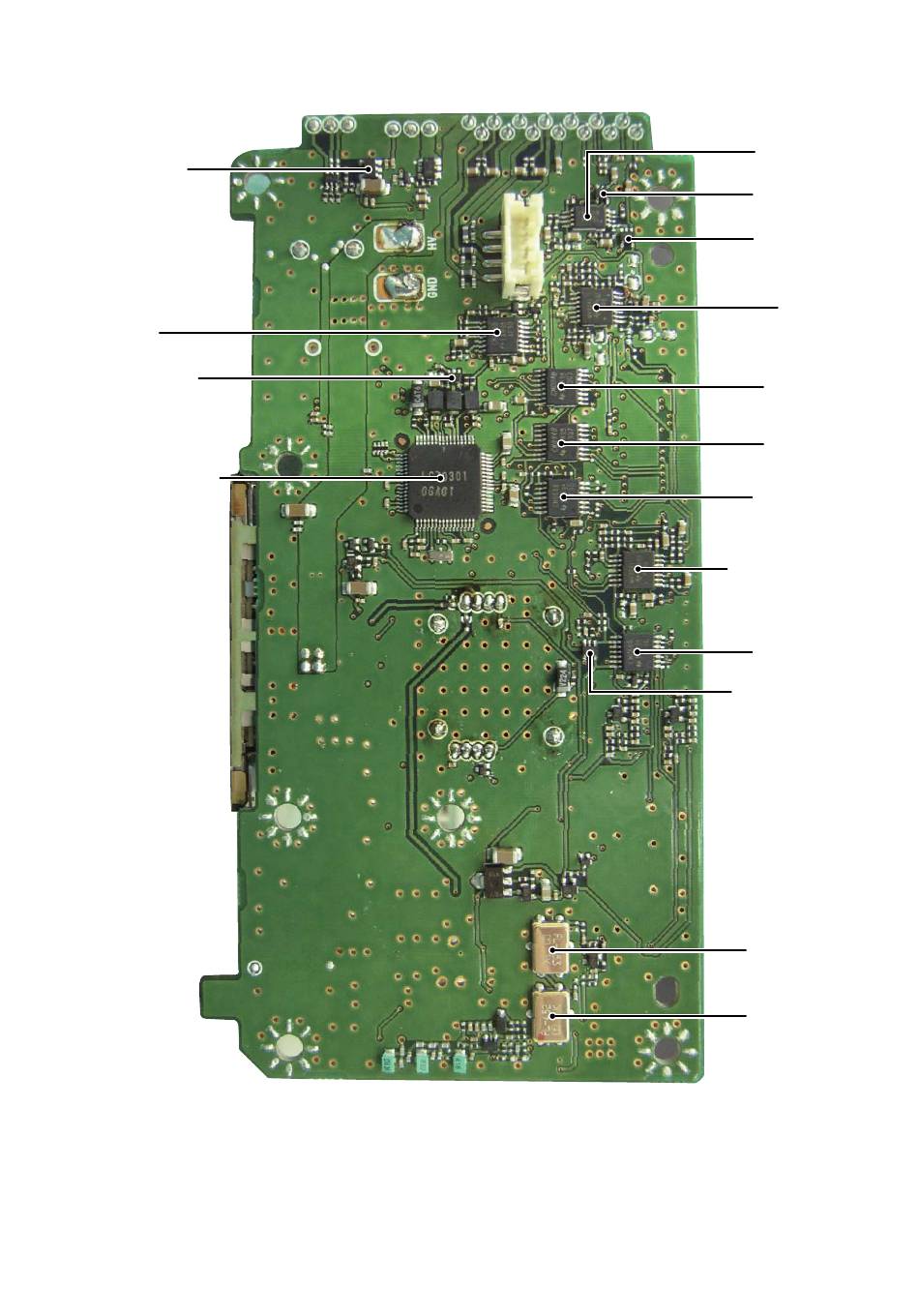

• MAIN UNIT
(BOTTOM VIEW)
+3 V REGULATOR
(IC511)
AF MUTE SW
(IC502)
+1.1 V REGULATOR
(IC903)
NOISE CANCELING LSI
(IC903)
2 - 3
AF PRE-AMP
(IC702)
AF MUTE SW
(IC703)
AF MUTE SW
(IC704)
MIC AMP
(IC513)
EXPANDER
(IC802)
EXPANDER
(IC801)
AF MUTE SW
(IC503)
AF BPF/MIC AMP
(IC506)
AF MUTE SW
(IC504)
HORN MUTE SW
(IC505)
1ST IF FILTER
(For CH70)
(FI303)
1ST IF FILTER
(For CH70)
(FI302)
