Pytes Ecox 12200 User Manual page 10

4
Battery Installation
4.3.2 Multiple Batteries
Connect batteries in series and parallel via power adapter cables to increases voltage
and capacity.
!
Caution
• Check if the voltage difference between the batteries is less than 0.1 VDC before using them in
series connection, or 0.5 VDC in parallel connection. If not, please balance the voltage first.
Otherwise, over-current protection may be triggered due to the large voltage difference.
• Do not mix batteries of different brands, types, models or life spans.
• In order to prolong the life span of the batteries, please make sure the length, diameter and
internal resistance of the power cables are the same when using multiple batteries.
Note
• Please refer to Section 5.3.1 for terminal connection and external devices connection.
• When batteries are used in series and parallel connection, it is recommended to use with a
busbar to distribute power effectively.
• The power cable connection methods provided in the manual are for reference only. The actual
optimal connection method varies depending on the cable size, equipment devices connected
and environmental conditions.
2200
2BOCO -ECOX1

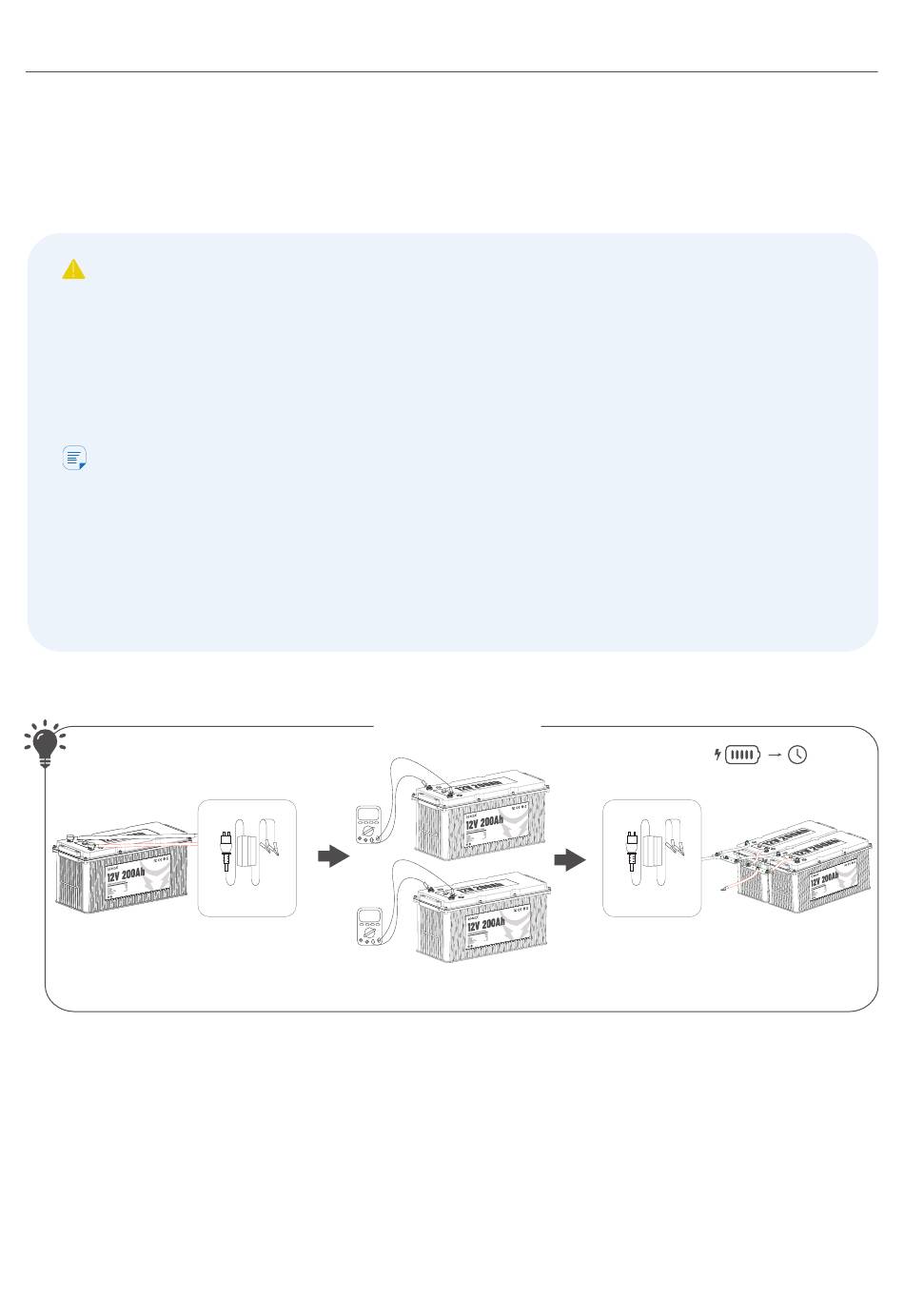

① Charge batteries separately until the voltage difference between them ≤ 0.1 VDC.
4
Voltage Balance
13.68V
Charger
13.58V
ECOX12 200
2BOCO-
Charger
2200
2BOCO -ECOX1
② Connect the batteries in parallel and fully
charge them, then float charge them for 24
hours.
100%
24 h
12200
2BOCO -ECOX
