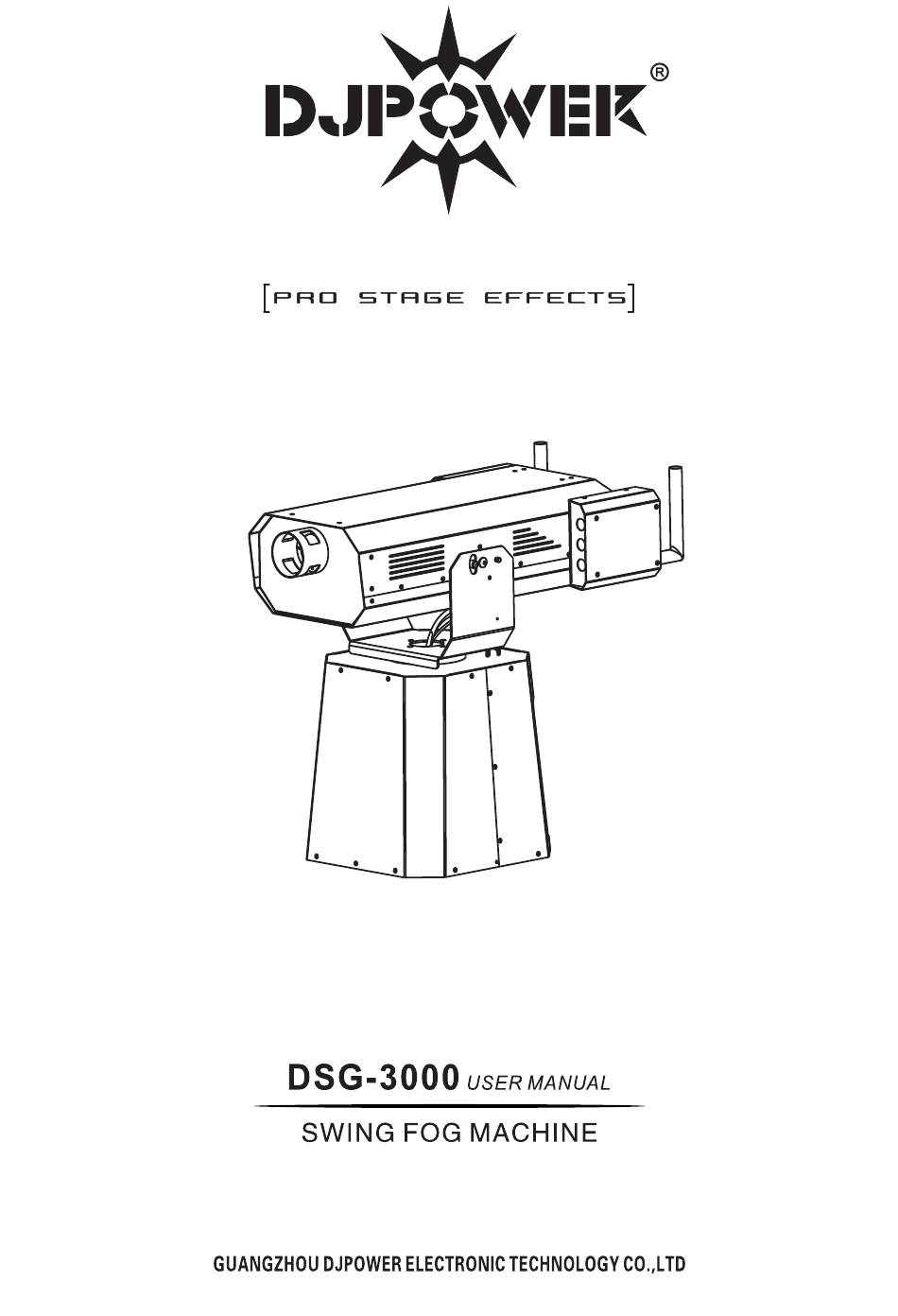

djpower DSG-3000 User Manual

Swing fog machine

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSG-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for djpower DSG-3000

  • Page 2: Before You Begin

    The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.
  • Page 3 • The product is very hot during operation and it remains hot for a long time after operation has stopped. Do not touch the product’s nozzle. • Make sure that children, unauthorised people and animals do not obtain access to the machine. 1.5.2 Mounting and Rigging •...
  • Page 4 2 INTRODUCTION Introduction DSG-3000 is a new dual nozzle swing fog machine launched by DJPOWER. With the help of super jet patented technology, it can instantly create a strong column of fog. The output distance can reach about 10 meters. The angle can be adjusted arbitrarily at 120 degrees. The design of the hand-held handle at the rear of the machine allows the fog output angle to swing as desired.
  • Page 5 Product Overview Product Dimensions - 4 -...
  • Page 6: Technical Specifications

    3 TECHNICAL SPECIFICATIONS Input Voltage & Rate AC 220 V~240 V, 50/60 Hz Current Limiter Type Breaker AC Power Current Limiter Specifications 15 A/250 V Total Power Consumption 2,500 W Heating Heat Up Time Appr. 9 min LED Power 3W × 6 LED Color Capacity Fluid Tank Capacity...
  • Page 7: Preparing For Operation

    4.2.2 Rigging DJPOWER recommends using the following general guidelines when mounting this product. • Before deciding on a location for the product, make sure there is easy access to the product for maintenance and programming purposes.
  • Page 8: On-Device Control Panel

    • Press <MENU> repeatedly to switch menu pages. • Press <ENTER>/<STOP> to go back to Standby Page at any time. 5.3.2 Menu Map Parameter Display Description Range Welcome DJPOWER Software version Version 1 Pages - 7 -...
  • Page 9: Manual Operation

    The handle button controls the smoke work • DSG-3000 handle controlled smoke output: After the machine is heated, on the display page "Ready to fog", press the handle button to start fog output; release the handle button to stop fog.
  • Page 10 DMX Mode & Operation(Optional function, the machine does not have DMX control by default) The Machine DSG-3000 works with a DMX controller. • Connect the product to a suitable power outlet.
  • Page 11: Technical Information

    Here are the recommended cleaning steps: 1. Please use DJPOWER original consumables to prolong the service life of the machine. Do not let non- professionals disassemble the machine, let alone refit the machine, to avoid danger 2.
