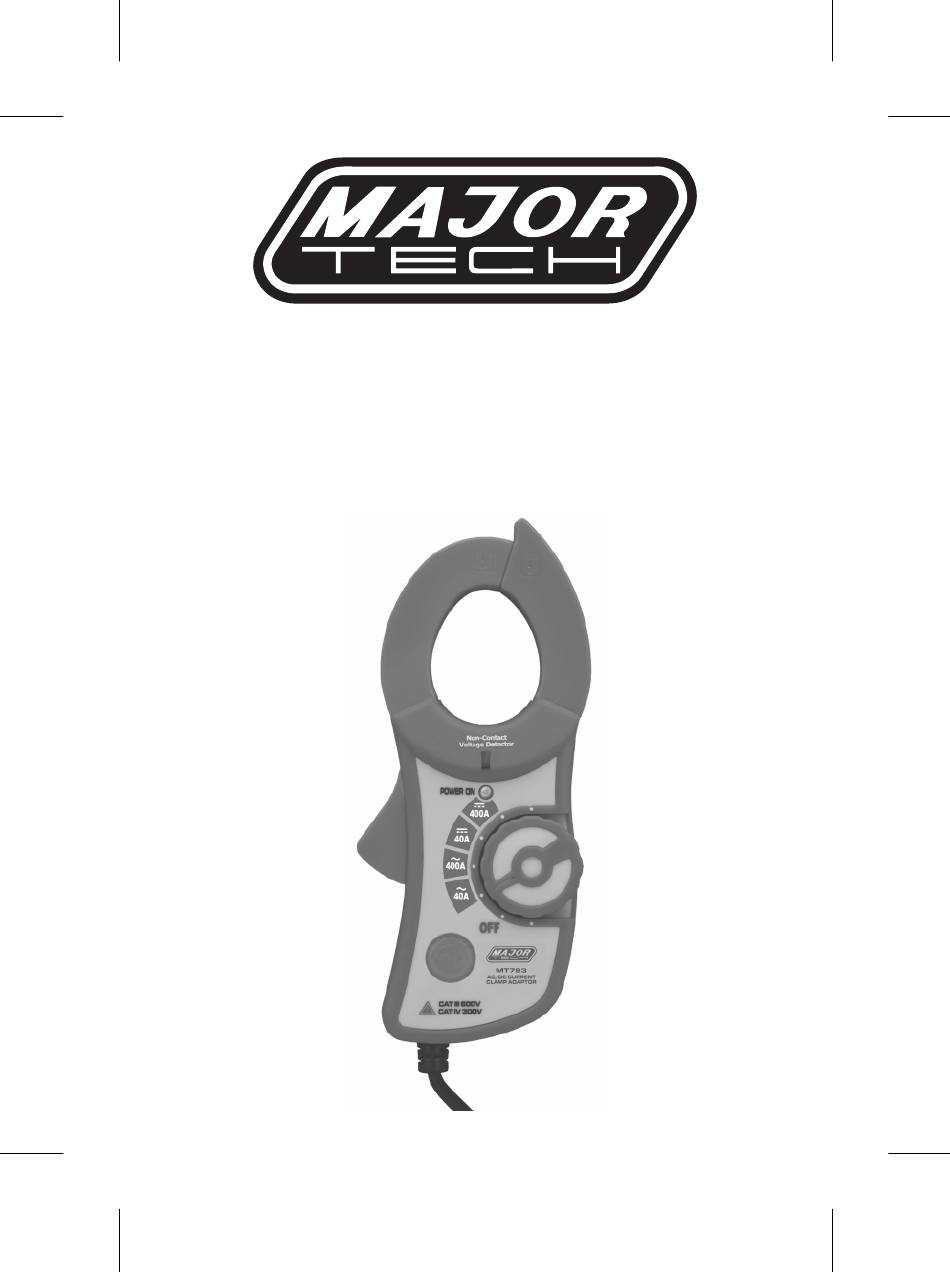

- Page 1 INSTRUCTION MANUAL MT783 400A AC/DC CLAMP ADAPTOR...
-
Page 3: Table Of Contents
Contents Page no 1. Introduction ..................4 2. Application Procedures...............4 3. Application Notes................4 4. Non-contact AC Voltage Measurements..........5 5. Operator Safety.................5 6. Specifications..................5 6.1. Accuracy - Current Clamp Accuracy..........5 6.2. General Specifications..............6 7. Warranty..................7... -
Page 4: Introduction
1. INTRODUCTION The MT783 400A AC/DC clamp-on adaptor designed to be compatible with any instrument capable of 4000 or 6000 count millivolt measurements. The clamp-on adaptor provides an output of 10mV/A on 40A range and 1mV/A on 400A range AC/DC with a frequency response of 50/60Hz. When measuring the current there is no need to break the circuit or affect the insulation. -
Page 5: Non-Contact Ac Voltage Measurements
4. NON-CONTACT AC VOLTAGE MEASUREMENTS WARNING: Risk of Electrocution. Before use, always test the Non- Contact Voltage Detector on a known live circuit to verify proper operation. 1. Touch the probe tip to the live conductor or insert it into the live side of an electrical outlet. -
Page 6: General Specifications
6.2. General Specifications Function Range Conductor Size Ø30mm Maximum Low Battery Indicator Red LED Operating Temperature 0°C to 50°C, 70% R.H. Storage Temperature -20°C to 70°C, 80% R.H. Batteries 2x AAA 1.5V Electrical (at 23±5°C, 70% R.H Maximum) Safety Information This meter complies with class II, over- voltage CAT III - 600V and CAT IV - 300V in accordance with EN 61010-1, and EN... -
Page 7: Warranty
7. WARRANTY Warranty Coverage Major Tech warrants its test instruments to be free from defects in materials or workmanship under normal use and service for a period of two (2) years from the date of shipment. This warranty is extended exclusively to the original purchaser, provided the online Product Registration has been completed on either www.major-tech.com or... - Page 8 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
