INSTRUCTION MANUAL

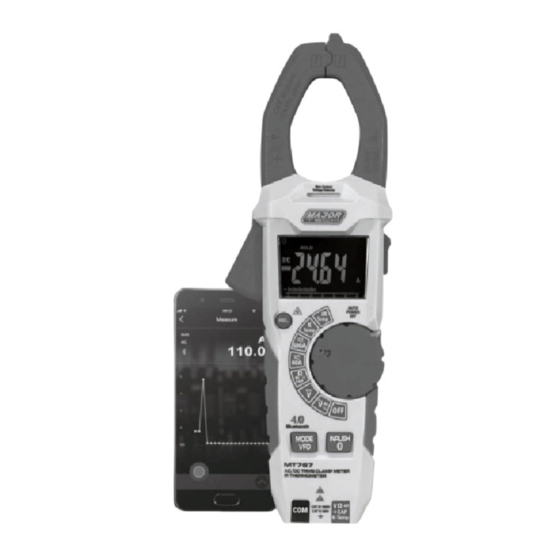

MT767
600A AC/DC CLAMP METER
WITH IR THERMOMETER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT767 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Major tech MT767

Summary of Contents for Major tech MT767

  • Page 1 INSTRUCTION MANUAL MT767 600A AC/DC CLAMP METER WITH IR THERMOMETER...

  • Page 3: Table Of Contents

    Contents Page no ..................1. Safety 1.1. International Safety Symbols............4 1.2. Safety Notes................4 ................1.3. Warnings ................1.4. Cautions 2. Meter Description................5 3. Display Icons..................5 ................4. Specifications 4.1. AC Current (50/60Hz)..............5 4.2. DC Current................5 4.3. DC Voltage................6 4.4. AC Voltage................6 ................

  • Page 4: Safety

    1. SAFETY 1.1. lnternational Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation.

  • Page 5: Meter Description

    2. METER DESCRIPTION 1 - Current clamp 9 - Rotary Function 2 - Clamp trigger switch 3 - LCD display 10 - Data Hold/Flashlight 4 - Relative / IR Laser button button 11 - Non-contact AC 5 - MODE/VFD button voltage indicator 6 - COM input jack light...

  • Page 6: Dc Voltage

    4.3. DC Voltage Range & Resolution Accuracy (% of reading + digits) 600.0mV ±(0.8% + 4 digits) 6.000V 60.00V ±(1.2% + 5digits) 600.0V 1000V 4.4. AC Voltage Range & Resolution Accuracy (% of reading + digits) 6.000V 60.00V ±(1.5% + 5 digits) 600.0V 1000V 4.5.

  • Page 7: Frequency Sensitivity: >8Vrms

    4.8. Frequency Sensitivity: >8Vrms Range & Resolution Accuracy (% of reading + digits) 5-9.999Hz 99.99Hz ±(1.5% reading + 6 digits) 999.9Hz 9.999KHz 4.9. Temp (type-K) (probe accuracy not included) Range & Resolution Accuracy (% of reading + digits) -20.0 to 1000°C ±(3%rdg + 3°C) -4.0 to 1800.0°F ±(3%rdg + 6°F)

  • Page 8: Operation

    4.11. General Specifications (continued) Overrange Indication "OL" is displayed Measurements Rate 2 per second, nominal Input Impedance ≥10MΩ (VDC and VAC) Display 6000 counts LCD AC Current 50-60Hz (AAC) AC Voltage bandwidth 50-1000Hz (VAC) Bluetooth Connection Connection through mobile device Operating Temperature 5 to 40°C (41 to 104°F) Storage Temperature -20 to 60°C (-4 to 140°F)

  • Page 9: Ac /Dc Voltage Measurement

    5.2. AC/DC Voltage Measurements 1. Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. 2. Set the function switch to the ACV or DCV position. 3. Connect the test leads in parallel to the circuit under test. 4.

  • Page 10: Frequency Or % Duty Cycle Measurements

    5.6. Frequency or % Duty Cycle Measurements 1. Set the rotary function switch to the "AC,Hz%" position. 2. Insert the black lead banana plug into the negative COM jack and the red test lead banana plug into the positive V jack. 3.

  • Page 11: Mode/Vfd Button

    results, rub the probe tip along a length of the cord to assure placing the tip in close proximity to the live conductor. NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation.
  • Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
