Summary of Contents for Major tech MT785

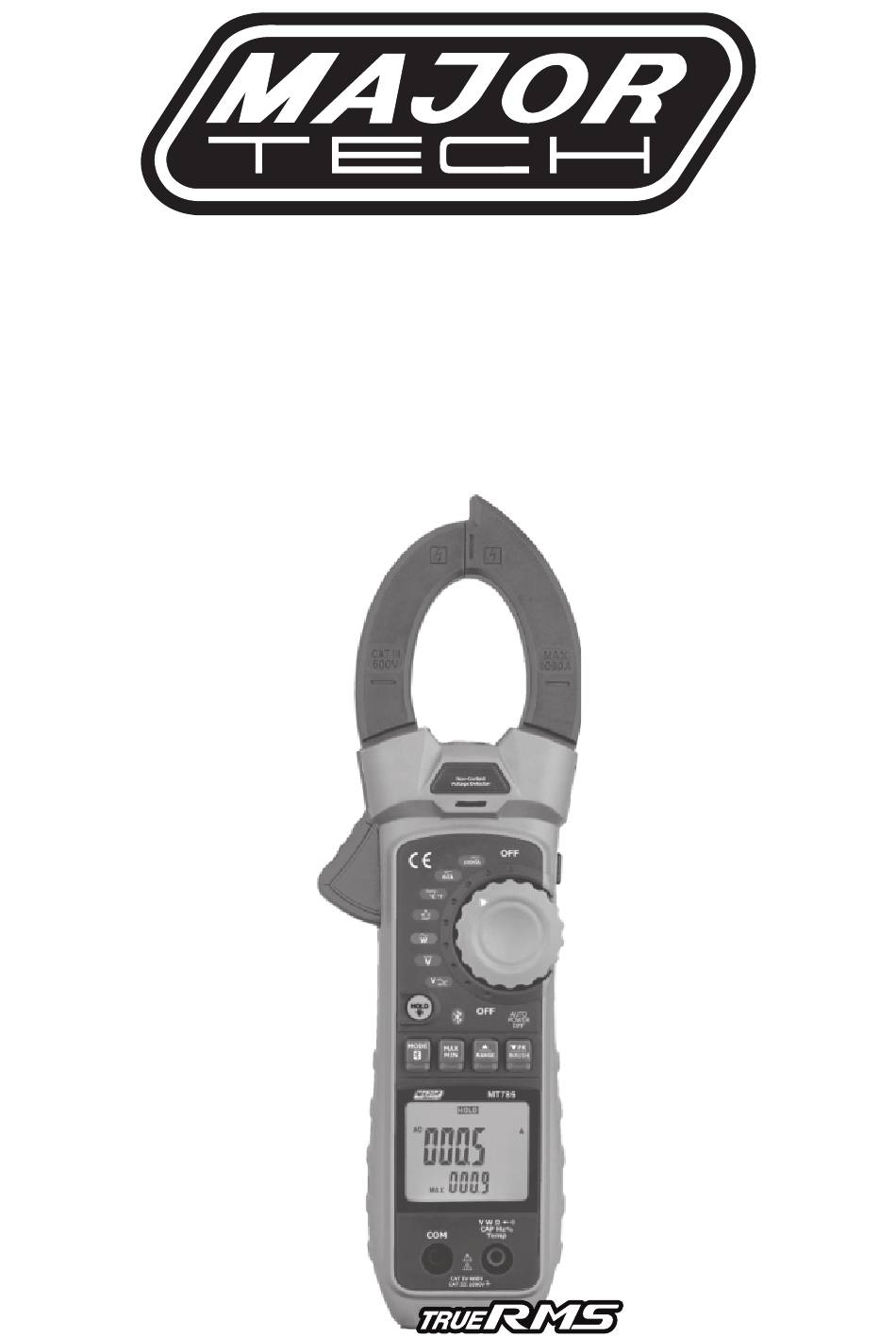

- Page 1 MT785 1000 A AC/DC TRMS POWER CLAMP METER...
- Page 3 Contents Page no...
- Page 4 1. Safety 1.1. International Safety Symbols This symbol adjacent to another symbol, terminal or operating device indicates that the operator must refer to an explanation in the Operating Instructions to avoid personal injury or damage to the meter. This symbol adjacent to one or more terminals identifies them as being associated with ranges that may, in normal use, be subjected to particularly hazardous voltages.
- Page 5 Cautions cont. Voltage checks on electrical outlets can be difficult and misleading because Ÿ of the uncertainty of connection to the recessed electrical contacts. Other means should be used to ensure that the terminals are not "live". If the equipment is used in a manner not specified by the manufacturer, Ÿ...
- Page 6 2.2 Display icons Description HOLD Data Hold Negative Reading Display 0 to 3999 Measurement display digits MAX/MIN Maximum/Minimum REL/DCA Zero Auto Power Off AUTO Auto Range Mode DC/AC Direct Current / Alternating Current Low Battery mV or V Milli-volts or Volts (Voltage) Ohms (Resistance) Amperes (Current)
-
Page 7: Specifications
3. SPECIFICATIONS Voltage Accuracy Range Function Resolution (% of reading + digits) 6.000V +1.0% of rdg + 3digits 60.00V 10mV +1.2% of rdg + 3digits DC Voltage 600.0V 100mV +1.2% of rdg + 3digits +1.5% of rdg + 3digits 1000V Maximum Input: 1000V DC Accuracy Range... -
Page 8: Total Harmonic Distortion
Current Accuracy Function Range Resolution (% of reading + digits) 10mA ±(2.5% of reading + 0.2A) DC A 1000A 100mA ±(2.5% of reading + 5digits) 10mA 50-60Hz ±(2.5% of reading + 8digits) AC A 1000A 100mA Frequency Function Range Resolution Accuracy Frequency 20Hz-10kHz... -
Page 9: Power Factor
Power Factor Range Accuracy Function ±(3% of reading + 1digits) -1.0-0.0-1.0 Resistance & Continuity & Diode Function Range Resolution Accuracy Resistance 600.0Ω 0.1Ω ±(1.0% of reading + 5digits) 6.000kΩ 1Ω ±(1.5% of reading + 3digits) 60.00kΩ 10Ω ±(1.5% of reading + 3digits) 600.0kΩ... -
Page 10: General Specifications
Diode and Continuity Testing Condition Reading Function Forward DCA is approx.1mA, Forward voltage drop of Diode Diode open circuit Voltage MAX . 3V Buzzer makes a long sound, Continuity Test current MAX. 1.5mA While resistance is less than(50) 4. General Specifications Clamp jaw opening 1.9"... -
Page 11: Operation
5. OPERATION Notes Read and understand all WARNING and CAUTION statements in this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. 5.1. AC/DC Current Measurements WARNING: Ensure that the test leads are disconnected from the meter before making current clamp measurements. - Page 12 5.4. Resistance Insert the black test lead into the negative COM terminal and the red test lead into the V CAP TEMP Hz Ω positive terminal. ).CAP position. Set the function switch to the Ω Touch the test probe tips across the circuit or component under test.
- Page 13 5.7. Temperature Measurements Set the function switch to the TEMP position. Insert the Temperature Probe into the negative COM and the CAP TEMP Hz Ω positive jacks, observing polarity. Touch the Temperature Probe head to the device under test. Continue to touch the part under test with the probe until the reading stabilizes.
- Page 14 5.9. Diode Test Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the V CAP TEMP Hz Ω positive jack Turn the function switch to Ω CAP. Use the MODE button to select the diode function if necessary (diode symbol will appear on the LCD when in Diode test mode) Touch the test probe tips to the diode or semiconductor junction...
- Page 15 5.12. Measuring Active Power (W) / Power factor (PF) 1. Single Phase Power Measurement Step 1: Set the rotary switch to the “W” position. Step 2: Connect the Red test lead to the Line conductor, and the Black test lead to the Neutral conductor. Step 3: Press the trigger to open the transformer jaws and clamp one conductor only, make sure that the jaw is firmly closed around the conductor.
- Page 16 5.13. RANGE button The AUTORANGE mode automatically selects the proper range for the measurement being made and is generally the best mode for most applications. For measurement situations requiring that a range be manually selected, perform the following: Momentarily press the RANGE button. The “AUTO” indicator will no longer be shown on the LCD display.
- Page 17 INRUSH NOTE: Only AC A functions can do the INRUSH value measurement. Switch off motor and then clamp supply. Press the INRUSH button , “----”will appear in the display. Start motor and then read the value on the display. Data Hold To freeze the LCD reading, press the HOLD button.
- Page 18 7. MAINTENANCE WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter with an open case. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent;...
- Page 20 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
