Summary of Contents for Major tech MT745

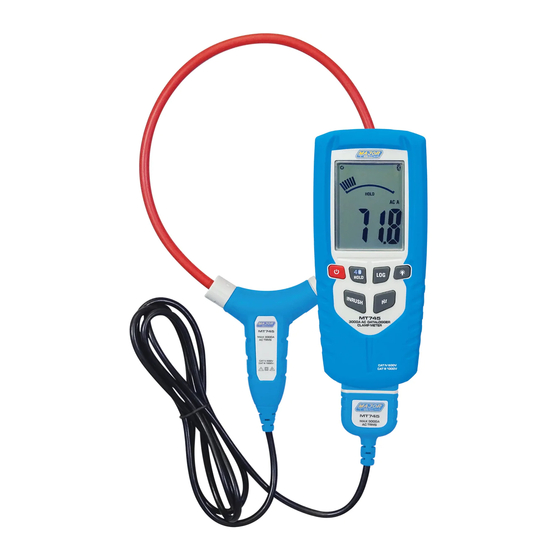

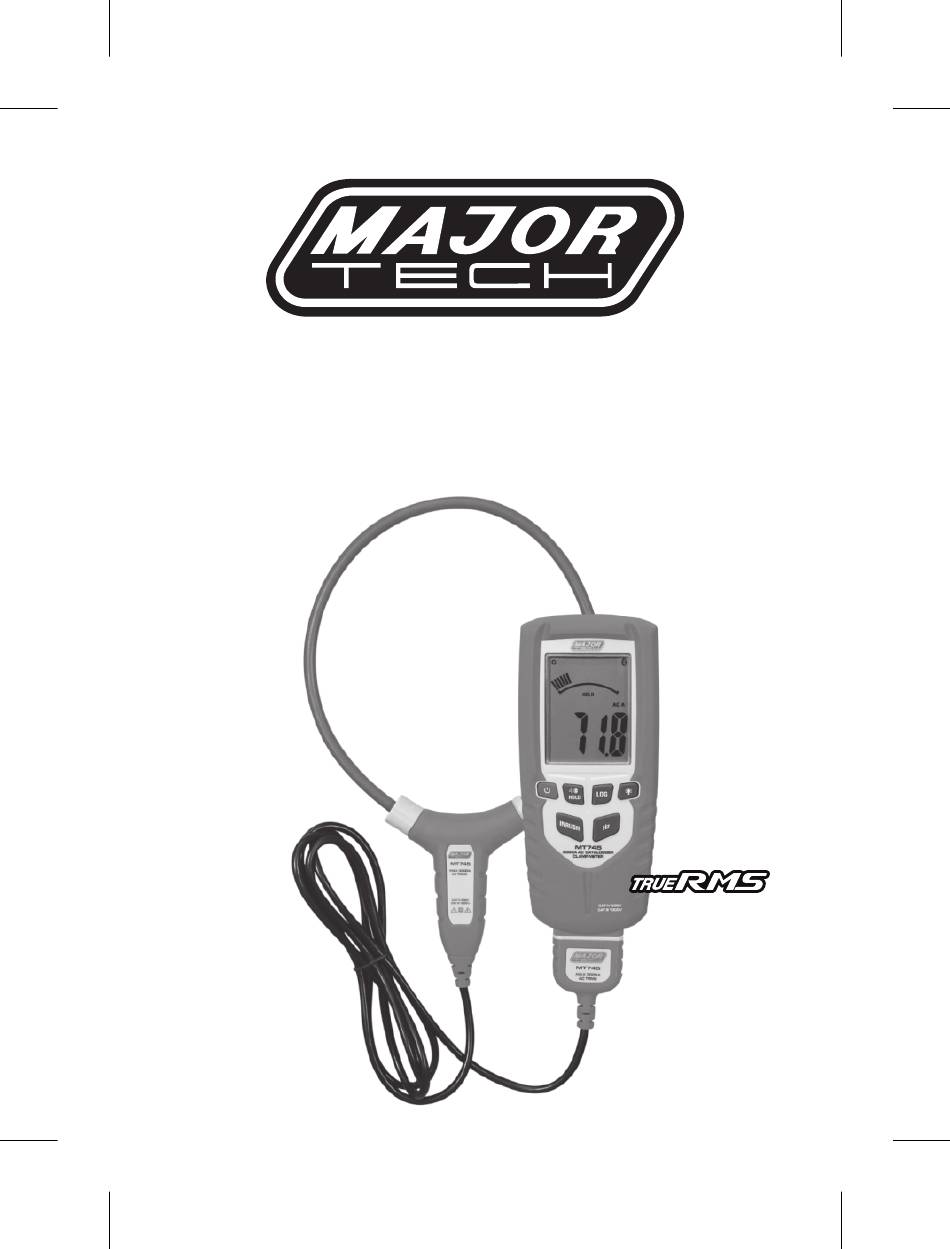

- Page 1 INSTRUCTION MANUAL MT745 FLEXIBLE AC CURRENT TRMS CLAMP METER...
- Page 3 Introduction Congratulations on your purchase of the MT745 True RMS Flexible AC Current Clamp meter. The MT745 features: Auto Power OFF Ÿ Data Hold Ÿ Inrush Ÿ Frequency Ÿ Data logger Ÿ Backlit LCD display Ÿ Bluetooth wireless transmit Ÿ...
- Page 4 Description Meter Description LCD display Power button Data Hold/BT wireless transmit button Inrush button Hz button Data storage button Backlight button Current coil plug Flexible current coil Display icons Description HOLD Data Hold 3000 Counts AC A Alternating Current Low battery Hertz (Frequency) INRUSH Inrush current...
- Page 5 Position Error of clamp: Accuracy and position error assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. Flexible coil radius (mm) Error 1.0% Distance from 1.5% Optimum(mm) 2.0% General Specifications Display 3000 counts backlit LCD Low Battery indication "...
- Page 6 Operation AC Current Measurements First twist and unlock the flexible current coil. Pull out the coil wire, loop around the wire you would like to measure, twist and lock the current coil back into place. Press the power button to switch on, the current value will be displayed on the meter display.
- Page 7 INRUSH Button INRUSH current measurement function, is in the manual measurement mode. The need for the operator to predict the value of the inrush current and then select the appropriate measuring range, to ensure the accuracy of the measurement. Ÿ Press the "INRUSH" key to enter "INRUSH" measurement mode, LCD screen displays "----", at this time the instrument is preset in the 3000A range.
- Page 8 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
