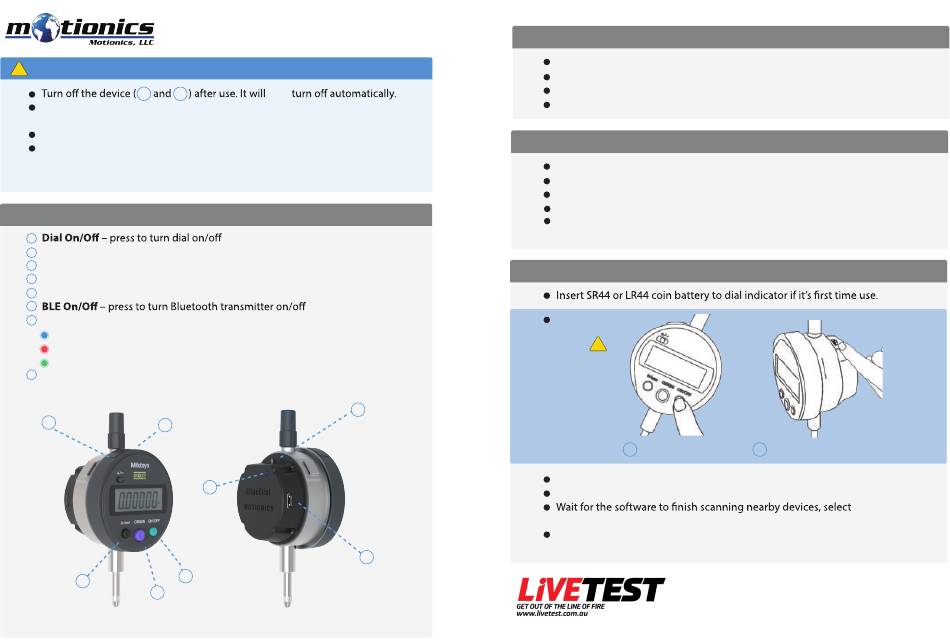

Motionics BlueDial User Manual

! Important Notes
1 6
Do NOT open the device. Opening causes permanent damage and voids the
warranty.
BlueDial transmitter & digital indicator should be both on before pairing.
BlueDial operates on two separate batteries:
1) Rechargeable built-in Li-Po battery for the Bluetooth transmitter
2) Coin SR44 or LR44 battery for the digital dial
Description
1
Origin Button – press to zero dial reading; this can also be done in the App
2
Unit Button – select reading in inch/mm
3
SPC Output – SPC data output port
4
Dial Battery – insert coin battery SR44 or LR44 for digital dial
5
6
Status LED
7
– Bluetooth transmitter is on
– BlueDial is in charge
– BlueDial is fully charged
Micro USB Port – connect to USB cable to charge BlueDial
8
4
5
1
3
2
Bluetooth Digital Indicator
BlueDial User Guide
NOT
6
7
8
Included in the box
BlueDial 1X
USB Charging Cable 1X
USB Power Adapter 1X
User Guide 1X
Compatible Software
iOS: MultiGage Reader
Android: MultiGage Reader
Windows: MultiGage Reader (BLE Dongle Required)
iOS App can be directly downloaded from the App Store for FREE.
Android App can be directly downloaded from the Google Play Store for FREE.
Windows software is available at Motionics.com/download.
Quick Start
Turn on BOTH
!
1
Dial indicator
Plug in USB Bluetooth dongle if using Windows PC.
Run the software, tap Scan/+ button to enter pairing page.
to connect.
Connection may take a few seconds, once paired, BlueDial reading shows
in the software.
6
Bluetooth transmitter
BlueDialXXX
