Motionics BDLT-302 User Manual

Important Notes

!
Do NOT open the device. Opening causes permanent damage and voids the
warranty.
BlueDial-LT transmitter & digital indicator should be both on before pairing.
BlueDial-LT operates on two separate batteries:
1) Rechargeable built-in Li-Po battery for the Bluetooth transmitter
2) CR2032 battery for the digital dial
The indicator face is not rotatable. Avoid rotating the dial face.

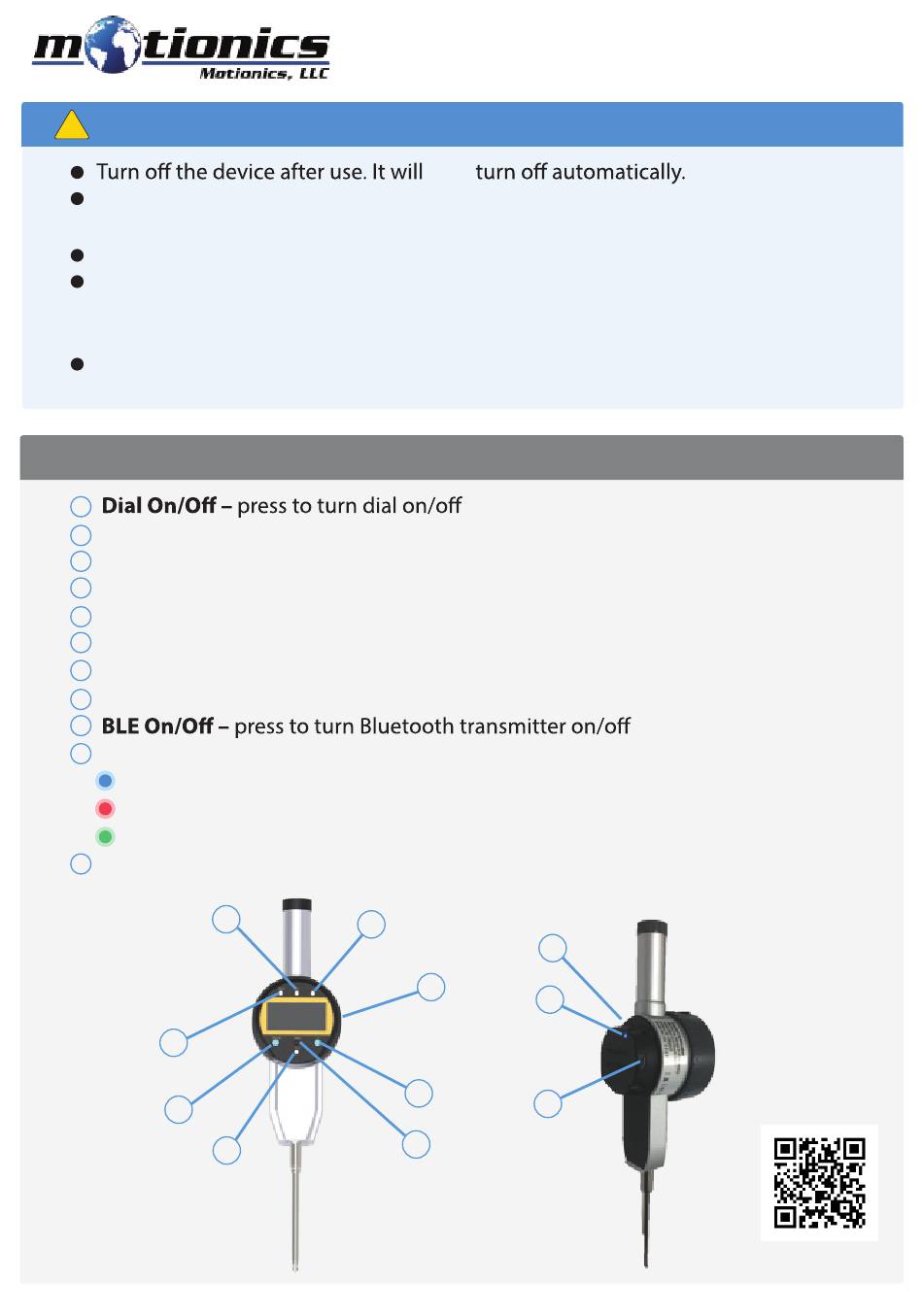

Description

1
Origin Button – press to zero dial reading; this can also be done in the App
2
Unit Button – select reading in inch/mm
3
Zero/ABS Button – change absolute/increment mode for the dial
4
Preset Button – preset dial data
5
Tol Button – make the dial work in tolerance mode
6
Direction Button – change measurement direction
7
Dial Battery – insert coin battery CR2032 for the digital dial
8
9
Status LED
10
– Bluetooth transmitter is on
– BlueDial-LT is in charge
– BlueDial-LT is fully charged
Micro USB Port – connect to USB cable to charge BlueDial-LT
11
6
5
4
3
Bluetooth Dial Indicator Lite
NOT
7
8
10
1
11
2
BDLT-302 - User Guide
9
