Important Notes
!
Do NOT open the device. Opening causes permanent damage and voids the
warranty.
Change coin battery when low battery icon shows on indicator display to avoid
false readings
Description
Zero/On Button
1
ABS/Preset Button – Short press - switch dial indicator between absolute
2
Unit Button – select reading in inch/mm
3
Status LED
4
– Blue LED Flashing – Bluetooth transmitter on, waiting to be connected
– Blue LED Solid – Bluetooth transmitter connected
– Blue LED o – Bluetooth transmitter o
Dial Battery – insert CR2032 battery
5

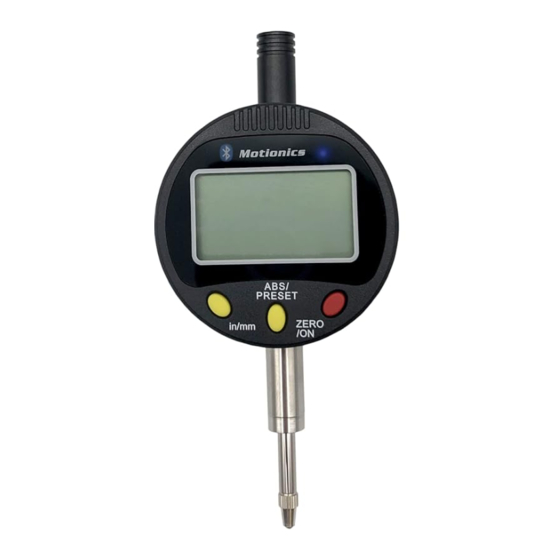

Bluetooth Digital Indicator
1
– Short press when dial is o - turn on dial indicator
– Short press when dial is on - zero dial reading
– Long press when dial is on - turn o dial indicator
measurement mode and relative measurement mode
– Long press - set preset value
3
BlueDial Flat User Guide
NOT
5
4
1
2
