Motionics GLM50C User Manual

! Important Notes
Do NOT open the dev ce. Open ng causes permanent damage and vo ds
the warranty.
Do NOT stare d rectly nto the apertures of the laser.
Descr pt on
press to turn laser measure on, hold to turn o
1
BLE On/O Button press to turn Bluetooth on/o on laser measure
2
Sett ng Button press to enter laser sett ng
3
2
1

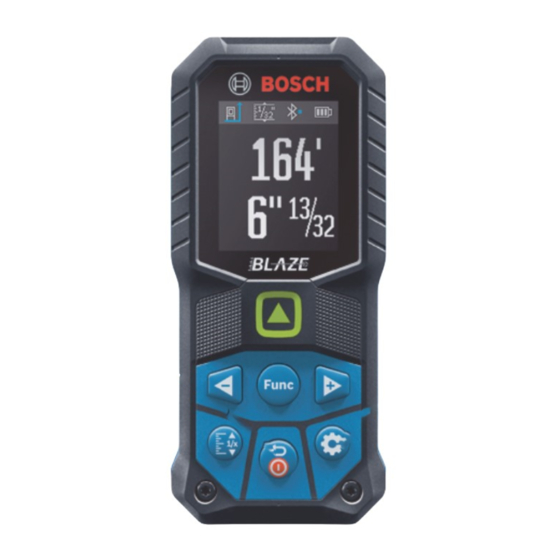

GLM50C
W reless Laser Measure
User Gu de
1
3
GLM165-27
Included n the box
Laser Measure 1X
Fabr c Pouch 1X
User Gu de 1X
Compat ble Software
OS: Mult Gage Reader
Andro d: Mult Gage Reader
W ndows: Mult Gage Reader (BLE Dongle Requ red)
OS app can be d rectly downloaded from the App Store for FREE.
Andro d app can be d rectly downloaded from the Google Play Store for FREE.
W ndows software s ava lable at mot on cs.com/download.
Qu ck Start
Insert 2x batter es nto laser measure for a rst-t me use.
Turn on laser measure and Bluetooth.
Plug n USB Bluetooth dongle f us ng W ndows PC.
Run software (refer to compat ble software sect on for download, and launch).
For a rst-t me use, dev ce act vat on s requ red us ng code pr nted on dev ce.
- On OS, go to New Measurement>More>Sett ng, and enter act vat on code
nto Custom Codes eld.
- On Andro d, go to Menu>Sett ngs, enter act vat on code nto Custom Codes
eld and press Save.
- On W ndows, go to Sett ngs>Act vat on>Custom Act vat on Codes, enter
act vat on code, press Add Code then Save.
Tap Pa r button n software to enter pa r ng page.
Wa t for the software to n sh scann ng nearby dev ces, then select "Bosch
GLM50C xXXXX" / "GLM165 - 27C(G) xXXXX" to connect.
Connect on may take a few seconds. Once pa red, read ngs show n software.
To turn on/o laser, do the follow ng:
- On OS/Andro d, tap dev ce name, toggle Act vate Laser sw tch and press Save.
- On W ndows, go to Gages, tap sett ng con of laser measure, toggle laser sw tch.
