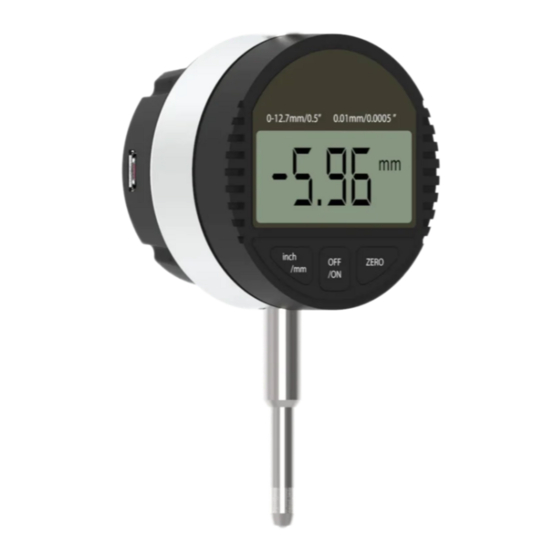

Motionics BlueDial-LT User Manual

Important Notes

!
Do NOT open the device. Opening causes permanent damage and voids the
warranty.
BlueDial-LT transmitter & digital indicator should be both on before pairing.
BlueDial-LT operates on two separate batteries:
1) Rechargeable built-in Li-Po battery for the Bluetooth transmitter
2) Coin SR44 or LR44 battery for the digital dial

Description

1
Origin Button – press to zero dial reading; this can also be done in the App
2
Unit Button – select reading in inch/mm
3
Dial Battery – insert coin battery SR44 or LR44 for digital dial
4
5
Status LED
6
– Bluetooth transmitter is on
– BlueDial-LT is in charge
– BlueDial-LT is fully charged
Micro USB Port – connect to USB cable to charge BlueDial-LT
7
4
3
Bluetooth Digital Indicator Lite
1 5
6
2
1
BlueDial-LT User Guide
NOT
5
7
