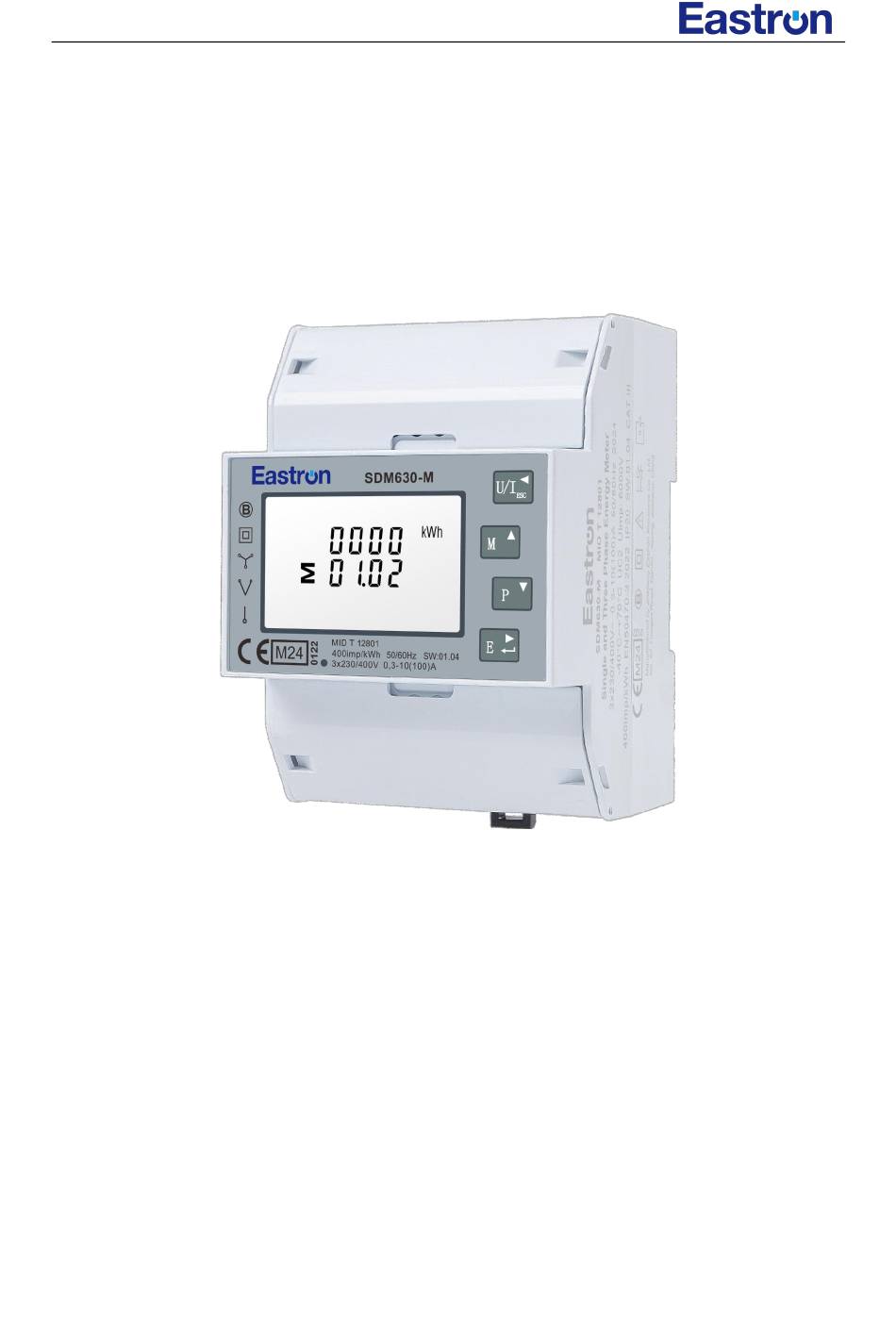

- Page 1 SDM630-M User Manual V1.0 SDM630-M DIN Rail Smart Meter for Single and Three Phase Electrical Systems USER MANUAL 2024 V1.0 2024 EASTRON ELECTRONIC. ALL RIGHTS RESERVED.
- Page 2 Eastron reserves all legal rights. Eastron reserves the right to amend the product specifications in this manual without prior notice. Before placing an order, please contact our company or local agent to get the latest specifications. 2024 EASTRON ELECTRONIC.
-
Page 3: Table Of Contents
SDM630-M User Manual V1.0 CONTENT Version History ..............................4 Risk Information ..............................5 Chapter 1. Introduction ............................. 7 1.1 Product Introduction ........................... 7 1.2 Product Characteristics ..........................7 Chapter 2. Technical Parameters ........................8 2.1 Technical parameters ...........................8 2.2 Accuracy ...............................8 2.3 Communication ............................8 2.4 Performance criteria ............................9... -
Page 4: Version History
SDM630-M User Manual V1.0 Version History Version Date Changes 2024-11-10 Initial Issue 2024 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. -
Page 5: Risk Information
SDM630-M User Manual V1.0 Risk Information Information for Your Own Safety This manual does not contain all of the safety measures operating the equipment (module, device) for different conditions and requirements. However, it does contain information which you must know for your own safety and to avoid damages. These information are highlighted by a warning triangle indicating the degree of potential danger. - Page 6 SDM630-M User Manual V1.0 Do not drop, or allow strong physical impact on the meter as the high precisely components inside may be damaged. Designed to be mounted inside of switchboards or cabinet on DIN RAIL This device must have a suitable sized Circuit Breaker feeding the Multi Function Energy Meter so it does not exceed the maximum rated current.
-
Page 7: Chapter 1. Introduction
SDM630-M supports Max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. -
Page 8: Chapter 2. Technical Parameters
SDM630-M User Manual V1.0 Chapter 2. Technical Parameters 2.1 Technical parameters Voltage AC (Un) 3*230/400VAC Voltage range 100 - 276V a.c. ( not for 3p3w supplies ) Voltage between phase 172 to 480V a.c ( 3p supplies only) Current input 0.3-10(100)A... -
Page 9: Performance Criteria
SDM630-M User Manual V1.0 Pulse output 1 is configurable, parameters are as follows: Pulse Output Energy Type Total / Import/ Export kWh or kVarh ( 6 parameters) Pulse Constant (Per Pulse) dFt/0.01/0.1/1/10/100kWh/kVArh (dFt =2.5Wh/VArh) Pulse Width 60/100/200mS 2.4 Performance criteria Operation humidity ≤90% non-condensing... -
Page 10: Wiring Diagram
SDM630-M User Manual V1.0 2.6 Wiring diagram Input and Output * reverse flow available Three Phase Four Wire Three Phase Three Wire Single Phase Two Wire Wiring Guide Diameter Measurement Connection Screw Connection 3.0mm*PH1 Strip Length 14-15mm Terminal Screw ①②③④... -
Page 11: Chapter 3. Operation
SDM630-M User Manual V1.0 Chapter 3. Operation 3.1 Start-up display The first screen lights up all display segments and can be used as a display check. The second screen indicates the firmware installed in the unit and its build number. -
Page 12: Measurements
SDM630-M User Manual V1.0 P1 P2 P3 Next page or decrease Q1 Q2 Q3 value S1 S2 S3 P-t Q-t S-t Active E-t Move to right side Enter Setup mode Confirm setting Reactive E-t Imp Active E Exp Active E... -
Page 13: Frequency, Power Factor And Demand
SDM630-M User Manual V1.0 Neutral Current *not available under 3p3w, 1p2w Phase to neutral voltage THD% * under 3P3W, it shows phase to phase voltage THD% Current THD% for each phase 3.3.2 Frequency, Power factor and Demand Each successive pressing of the... -
Page 14: Power
SDM630-M User Manual V1.0 Maximum Current Demand Maximum Power Demand 3.3.3 Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW *not available under 3p3w, 1p2w Instantaneous Reactive Power in kVAr *not available under 3p3w, 1p2w... -
Page 15: Energy
SDM630-M User Manual V1.0 Total kW, kVAr, kVA 3.3.4 Energy Each successive pressing of the button selects a new range: Total active energy in kWh Total reactive energy in kVArh Imported active energy in kWh Exported active energy in kWh 2024 EASTRON ELECTRONIC. -
Page 16: Setup Mode
SDM630-M User Manual V1.0 Imported reactive energy in kVArh Exported reactive energy in kVArh Carbon emission ( unit: kg) 3.4 Setup Mode To enter set-up mode, pressing the button for 3 seconds, until the password screen appears. Setting up is password-protected so you must enter the correct password (default ‘1000’) before processing. -
Page 17: Set-Up Entry Methods
SDM630-M User Manual V1.0 3.4.1 Set-up Entry Methods Some menu items, such as password, require a four-digit number entry while others, such as supply system, require selection from a number of menu options. 3.4.1.1 Menu Option Selection 1) Use the buttons to select the required item from the menu. -
Page 18: Rs485 Modbus Id
SDM630-M User Manual V1.0 3.4.2 RS485 Modbus ID From the Set-up menu, use buttons to select the Address ID. Range: 001-247 Default: 001 Long press button to enter the selection routine. The current setting will be flashing. buttons to choose Modbus Address. -
Page 19: Parity
SDM630-M User Manual V1.0 buttons to choose Baud rate On completion of the entry procedure, long press to confirm the setting Press to return to the main set-up menu. 3.4.4 Parity From the Set-up menu, use buttons to select the Parity option. -
Page 20: Pulse Output Energy Type
SDM630-M User Manual V1.0 Long press to enter the selection routine. The current setting will flash. buttons to choose Stop Bit On completion of the entry procedure, press to confirm the setting. * when parity is NONE, the stop bit can be changed to Press to return to the main set up menu. -
Page 21: Pulse Rate
SDM630-M User Manual V1.0 Press to return to the main set up menu. 3.4.7 Pulse Rate From the Set-up menu, use buttons to select the Pulse Rate option. Range: dFt/0.01/0.1/1/10/100kWh/kVArh. * Left picture shows 1 pulse = 10kWh/kVArh Long press to enter the selection routine. -
Page 22: Demand Integration Time
SDM630-M User Manual V1.0 3.4.9 Demand Integration Time From the set-up menu, use buttons to select the DIT option. The screen will show the currently selected integration time. Range:0, 5, 8, 10, 15, 20, 30, 60 minutes Long press to enter the selection routine. -
Page 23: Supply System
SDM630-M User Manual V1.0 Press to exit the LP selection routine and return to the menu. 3.4.11 Supply System From the Set-up menu, use buttons to select the System option. The screen will show the currently selected system type. Range: 1P2(W),3P3(W) ,3P4(W) Long press to enter the selection routine. -
Page 24: Clr
SDM630-M User Manual V1.0 will flash. Repeat the procedure for the remaining three digits. After setting, long press to confirm the setting Press to return to the main set up menu. 3.4.13 CLR From the Set-up menu, use buttons to select the reset option. -
Page 25: Chapter 4. Declaration Of Conformity ( For Mid Meter Only)
Set-up menu. Chapter 4. Declaration of Conformity ( For MID meter only) We Zhejiang Eastron Electronic Co., Ltd. Declares under our sole responsibility as the manufacturer that the Three phase multifunction electrical energy meter SDM630 series correspond to the production model described in the EU-type examination certificate and the requirements of the Directive 2014/32/EU.
