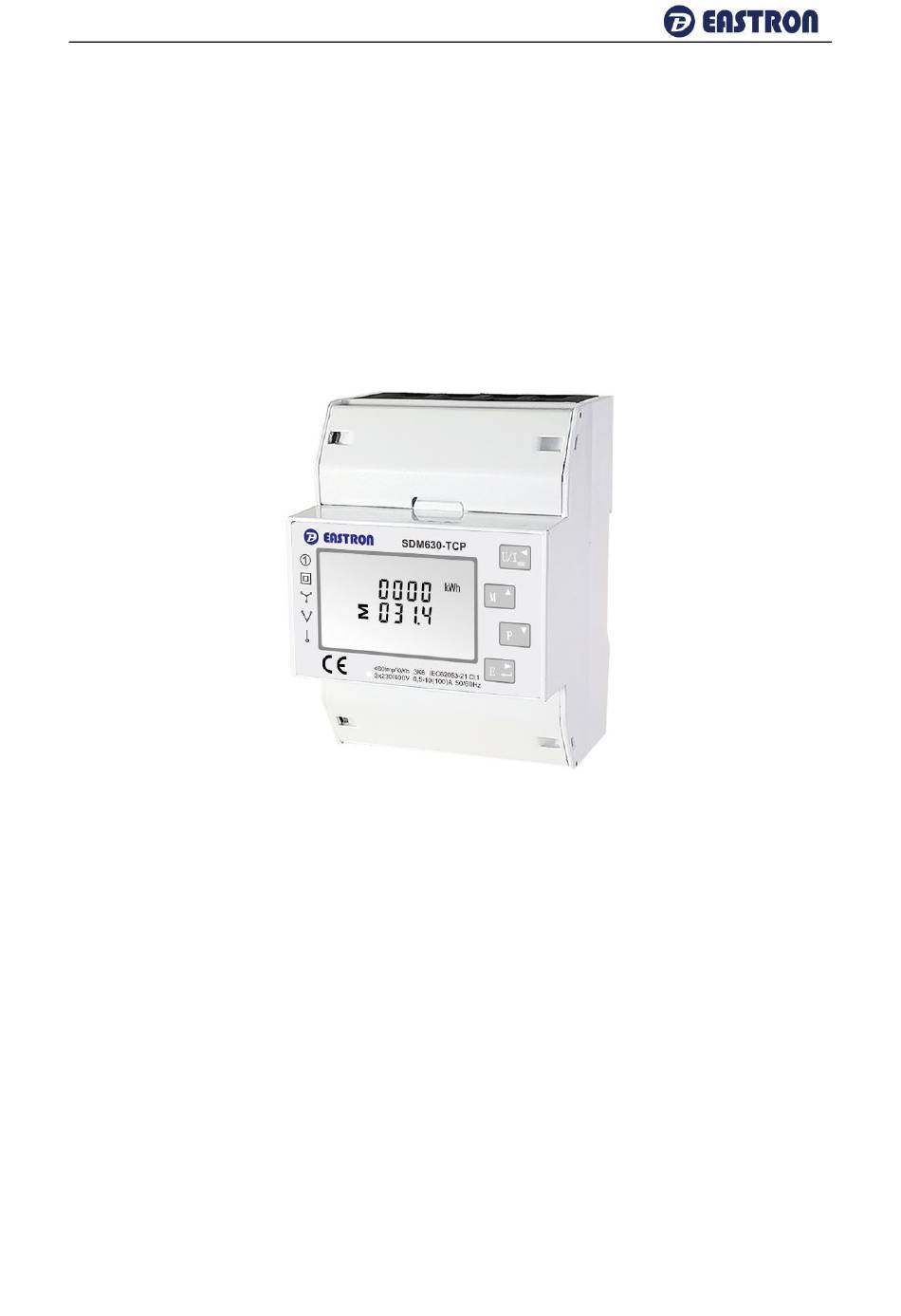

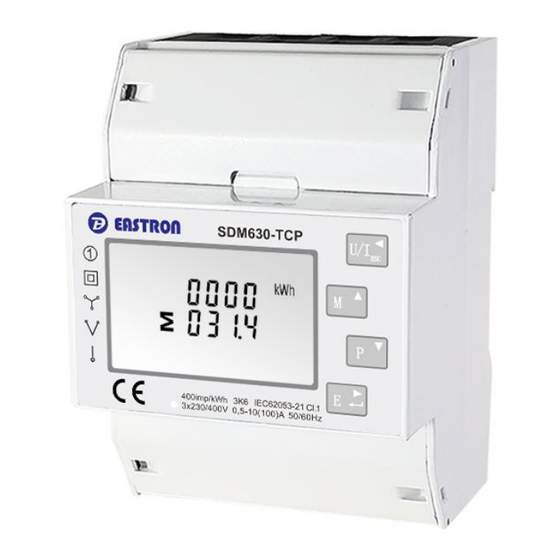

- Page 1 SDM630-TCP User Manual 2021 V1.0 Three Phase Multifunctional Energy Meter SDM630-TCP User manual V1.0 2021 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com...
- Page 2 SDM630-TCP User Manual 2021 V1.0 Zhejiang Eastron Electronic Co.,Ltd. Statements All rights reserved. Without the written permission of the company, no paragraphs or chapters in this manual can be extracted, copied or reproduced in any form. Otherwise, the violator shall bear all consequences.
-
Page 3: Table Of Contents
SDM630-TCP User Manual 2021 V1.0 Content Chapter 1. Introduction........................- 1 - 1.1 Introduction..........................- 1 - Product Characteristics......................- 1 - Application..........................- 1 - Chapter 2. Technical Parameters ......................- 2 - 2.1Technical parameters........................- 2 - 2.2 Accuracy............................. - 2 - Ethernet communication...................... -
Page 4: Chapter 1. Introduction
Chapter 1. Introduction 1.1 Product Introduction SDM630-TCP is a new multifunction energy meter designed by EASTRON. The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc. The meter supports max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation. -
Page 5: Chapter 2. Technical Parameters
SDM630-TCP User Manual 2021 V1.0 Chapter 2. Technical Parameters 2.1 Technical parameters Voltage AC (Un): 3*230/400VAC Voltage range: 100 - 276V a.c. ( not for 3p3w supplies ) Voltage between phase: 173 to 480V a.c ( 3p supplies only) ... -
Page 6: Performance Criteria
SDM630-TCP User Manual 2021 V1.0 2.4 Performance criteria Operation humidity: ≤90% Storage humidity: ≤95% Operating temperature: -25℃~+55℃ Storage temperature: -40℃~+70℃ International standard: IEC62053-21 Accuracy class: Class 1 Installation category: CATIII Protection against penetration of dust and water: IP51 (indoor) ... -
Page 7: Chapter 3. Operation
SDM630-TCP User Manual 2021 V1.0 Chapter 3. Operation 3.1 Installation display The first screen lights up all display segments and can be used as a display check. The second screen indicates the firmware installed in the unit. Note：the actual display might be different with the left on here. -
Page 8: Measurements
SDM630-TCP User Manual 2021 V1.0 3.3 Measurements 3.3.1 Voltage and current Each successive pressing of the button selects a new range: Phase to neutral voltage Phase to phase voltage Current on each phase Phase to neutral voltage THD% Phase to neutral current THD% 3.3.2 Frequency, Power factor and Demand... -
Page 9: Power
SDM630-TCP User Manual 2021 V1.0 Frequency and Power Factor (total) Power Factor of each phase Maximum current demand on each phase Maximum total power demand 3.3.3 Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW Instantaneous Reactive Power in kVAr 2021 EASTRON ELECTRONIC. -
Page 10: Energy
SDM630-TCP User Manual 2021 V1.0 Instantaneous Volt-amps in kVA Total kW, kVArh, kVA 3.3.4 Energy Each successive pressing of the button shows following measurements: Total active energy in kWh Total reactive energy in kVArh imported active energy in kWh 2021 EASTRON ELECTRONIC. -
Page 11: Setup Mode
SDM630-TCP User Manual 2021 V1.0 Exported active energy in kWh Imported reactive energy in kVArh Exported reactive energy in kVArh 3.4 Setup Mode The meter’s settable parameters are password protected. By long pressing the 4th button “E”, the user can get into the setup mode. -
Page 12: Demand Interval Time Setup
SDM630-TCP User Manual 2021 V1.0 Communication address setup Long press button to enter the setup mode. Press button to set the addresses. Long press button to confirm. Address range：001 ~ 247, default 001. 3.4.3 Demand Interval Time setup Long press button to enter the setup. -
Page 13: System Type Setup
SDM630-TCP User Manual 2021 V1.0 3.4.5 System Type Setup Long press button to enter the setup. Press button to setup the supply system. Option: 3P4W, 3P3W, 1P2W or 1P3W. Long press button to confirm. Option: 3P4W(default), 3P3W, 1P2W, 1P3W. 3.4.6 Password Modification Setup Long press button to enter the setup mode. - Page 14 SDM630-TCP User Manual 2021 V1.0 Long press button to set IP address. IP-High 192.168 (default) IP-Low 001.200 (default) 3.4.7.3 Subnet Mask address setup Long press button to enter the setup mode. Subnet mask-High 255.255 (default) Subnet mask-Low 255.0 (default) 3.4.7.4 TCP gateway address setup 2021 EASTRON ELECTRONIC.
-
Page 15: Reset
SDM630-TCP User Manual 2021 V1.0 Long press button to enter the setup mode of IP address of TCP gateway TCP gateway address - High: 192.168 (default) TCP gateway address - Low: 001.001 (default) 3.4.7.5 TCP IP Port setup Long press button... - Page 16 SDM630-TCP User Manual 2021 V1.0 Channel Selection interface Press button to choose channel (CH01-CH04). Long press to enter the reset confirmation interface. Press button to choose the data type. Long press button to confirm. Reset done. Reset option: Max. demand, Max. value, Min. value Note：...
-
Page 17: Connection Diagram For Communication
SDM630-TCP User Manual 2021 V1.0 Chapter 4. Connection Diagram for Communication If you have any question, please feel free to contact our sales team. Zhejiang Eastron Electronic Co., Ltd. No.1369, Chengnan Rd. Jiaxing, Zhejiang, 314001, China Tel: +86-573-83698881 Fax: +86-573-83698883 Email: sales@eastrongroup.com...
