6200 Series
Art. 6286
3.5" colour display videophone
27 mm

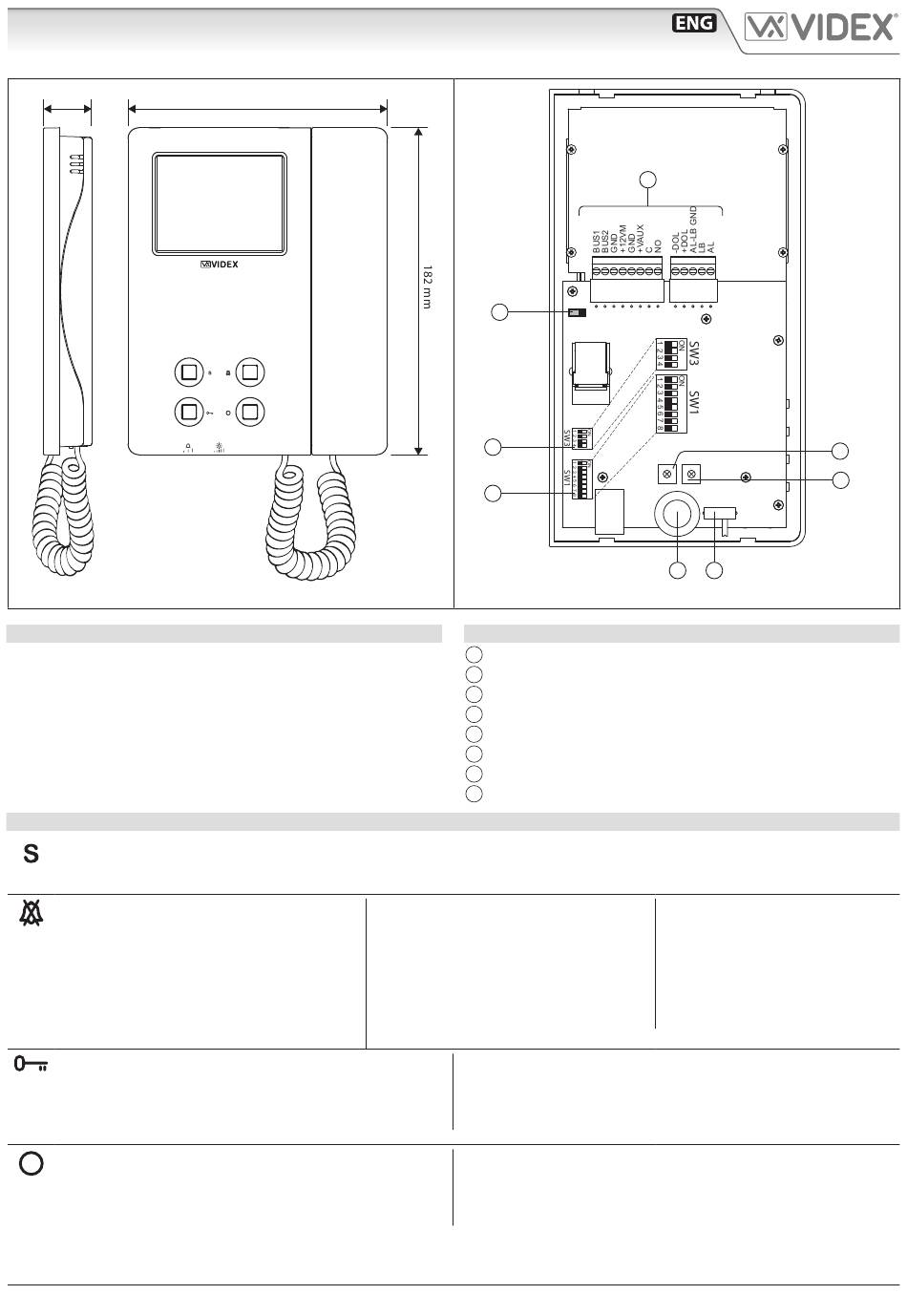

Fig. 1 Front
DESCRIPTION
An intelligent Videophone using 3.5" full colour active matrix
LCD monitor for VX2300. Including 4 buttons "service", "privacy/
bus relay activation", "door-open/intercommunicating call" and
"camera recall" plus 3 LED's for visual indication of all functions.
Adjustments & programmable options: call tone volume on 3 lev-
els (low, medium, high), picture hue, brightness and contrast, call
tone melody, number of rings, privacy duration and address. Also
includes a local bell function. The Art. 6286 is surface mount.
PUSH BUTTONS
Service push button
When pressed it links internally the terminals C and NO on the connection terminals.
Privacy ON-OFF push button
To enable the function press this button
when the videophone is in standby. The
service is automatically disabled when the
programmed time expires (the privacy du-
ration time can be programmed) or manu-
ally by pressing again the button.
Door open push button
Press this button to open the door when you are in con-
versation.
Camera recall push button
Pick up the handset and press as many times as the DE-
VICE N. of the door station to switch on.
Art. 6286 - Installation instructions
144 mm
Activate the outdoor station
2
output
nd
During a conversation, press this but-
ton once to activate the secondary
relay of outdoor station (only with
Art.4304, 4304X, 4384 and 4384X PCB
Rev.0.1).
B
SW
C
D
Fig. 2 Back
LEGEND
Connection terminals
A
Bus termination switch
B
4 Way dip switch bank
C
8 Way dip switch bank
D
Contrast adjustment trimmer
E
Hue adjustment trimmer
F
Brightness control
G
Call tone volume switch
H
Intercommunication push button
For an intercommunicating call, pick up the handset and press
as many times as the extension or address value to call (see SW3
Intercommunication Settings).
Camera switch push button
During the conversation, press and keep pressed the button un-
til the camera switches. Repeat the operation to switch back to
main camera.
- 1 -
A
PT3 PT2
G
H
Activate bus relay board
Art. 2305
To activate a bus relay, during a
conversation, press this button
quickly as many times as the ad-
dress value of the relay (1..8).
66251110 - V5.4 - 31/07/24
R01A
