Videx 6231 User Manual

6200 Series
Art. 6231

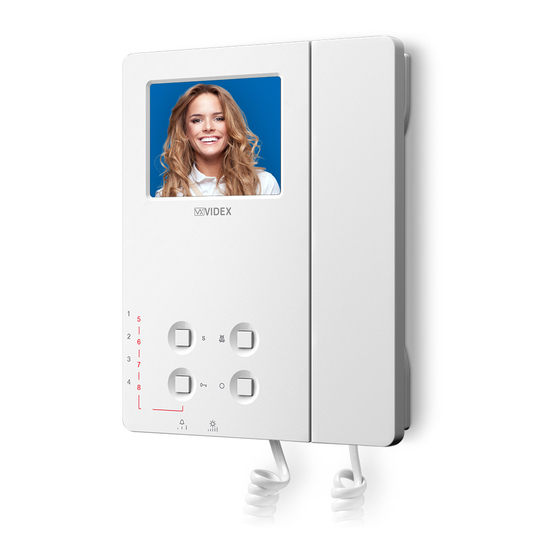

3.5" colour display videophone

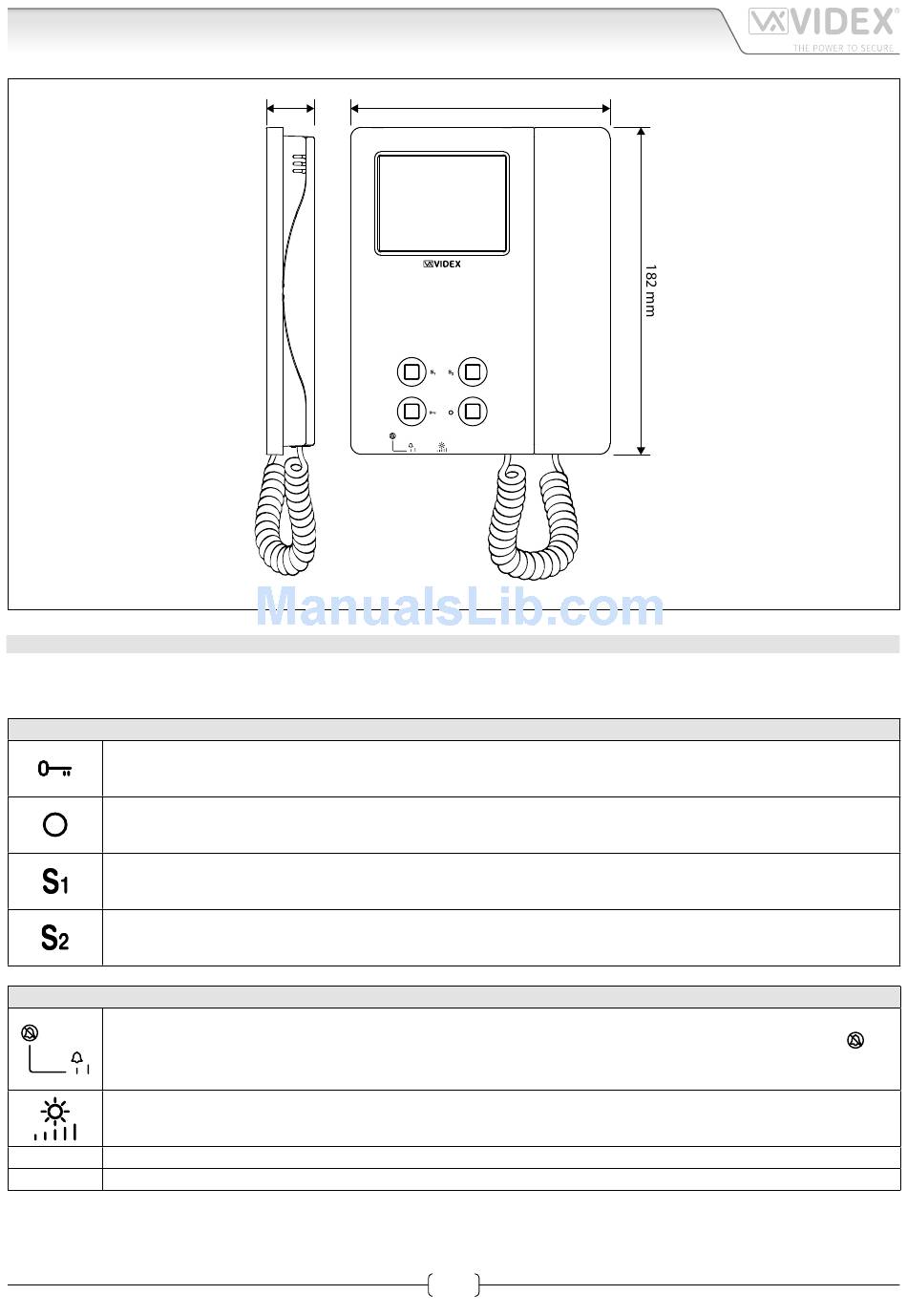

Fig. 1
VIDEOPHONE FOR 4+1 SYSTEMS WITH BALANCED VIDEO SIGNAL (NON COAX) ART. 6231
Videophones with 3.5" colour LCD TFT monitor for video systems using balanced video signal (non coax).
Are made from white ABS shockproof plastic and the installation is surface mounting.

PUSH BUTTONS

Activates the electric lock (door-open) only when the videophone is on and the handset is picked up.
Switches on the system and displays the video from the outdoor station on the videophone (camera recall).
By picking up the handset and pressing the "door-open" push button it is possible to open the door.
Service push button or camera recall depending on JP1 jumper position (see Table 1 - Jumper settings for Art. 6231
on page 2).
Service push button or camera recall depending on JP2 jumper position (see Table 1 - Jumper settings for Art. 6231
on page 2).

CONTROLS

Switch to adjust the call tone volume and enable the privacy service. In the middle position the volume is standard,
in right position the volume is high while in the left position privacy is enable: the LED under the symbol
illuminate. When the service is enabled the videophone receives calls showing the video from the door panel but
doesn't ring. The privacy mode may be disabled moving the switch to the middle or right position.
Adjusts the picture brightness: right rotation to increase, left rotation to decrease.
PT3
Contrast (internal trimmer – rotate clockwise to increase, anticlockwise to decrease).
PT2
Hue (internal trimmer – rotate clockwise to increase, anticlockwise to decrease).
Art. 6231 - Installation instructions
27 mm 144 mm
1
will
66251140-EN - V1.3 - 15/06/16
