X11 Connection - Devon IT OptiPlex VDI Blaster Edition Administration Manual

X11 Connection

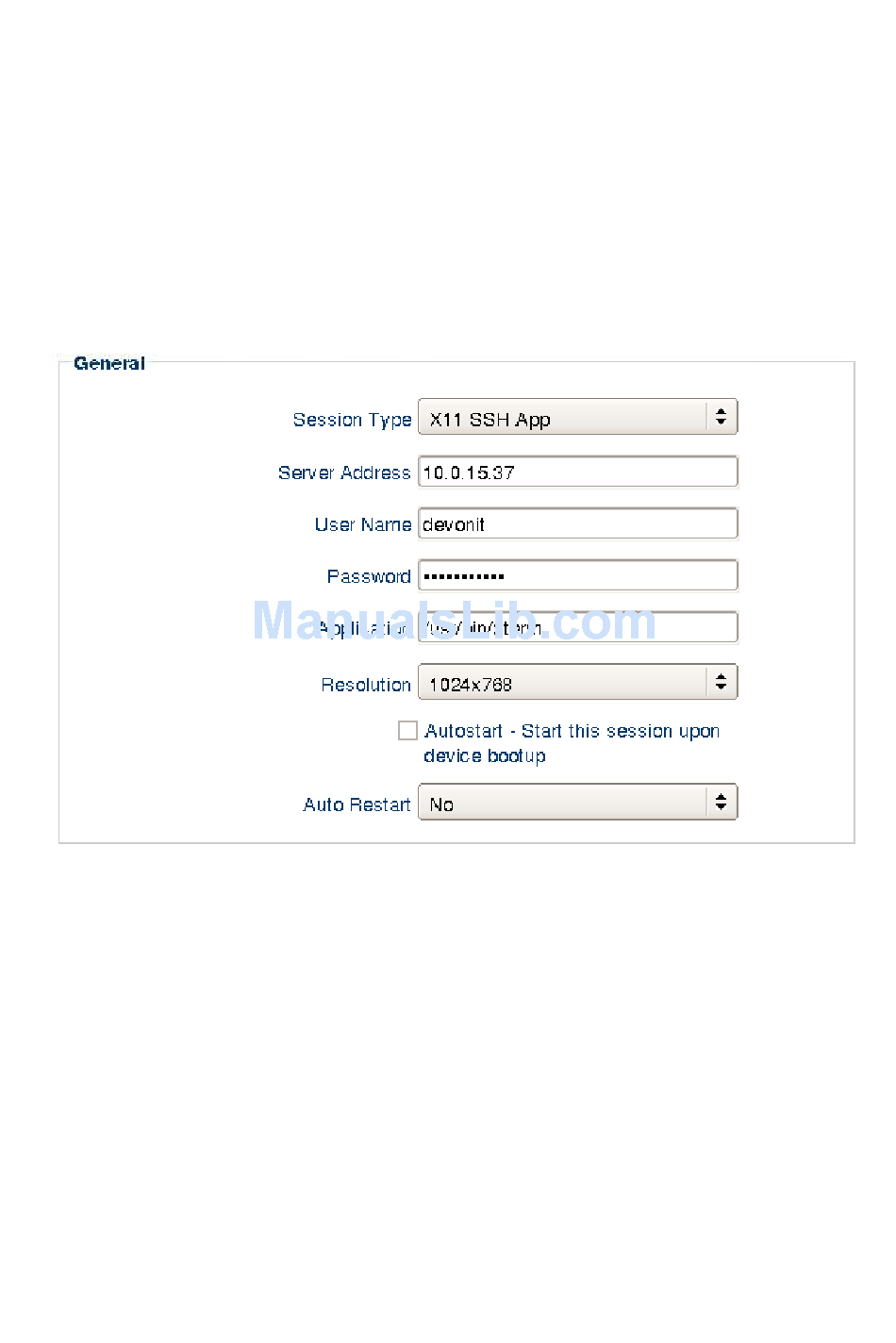

The X11 client allows you to connect to an X11 server, which provides the user
with their own virtual desktop session. The following section describes the
basic steps for configuring the X11 connection in DeTOS.
Session Type-Choose from the single SSH App type or the XDMCP
1
connection.
2
Server Address-Specify which IP address is the X11 server.
3 Credentials-Specify the User Name and Password of a user account you
wish to log on as.
4
Application-This is the file path of the application if you are planning on
launching a single application within DeTOS, using the X11 connection.
This is only available when choosing the SSH App session type.
5
Resolution-Choose the resolution for your connection, ranging from full
screen to various fixed resolutions.
48 | Connections
