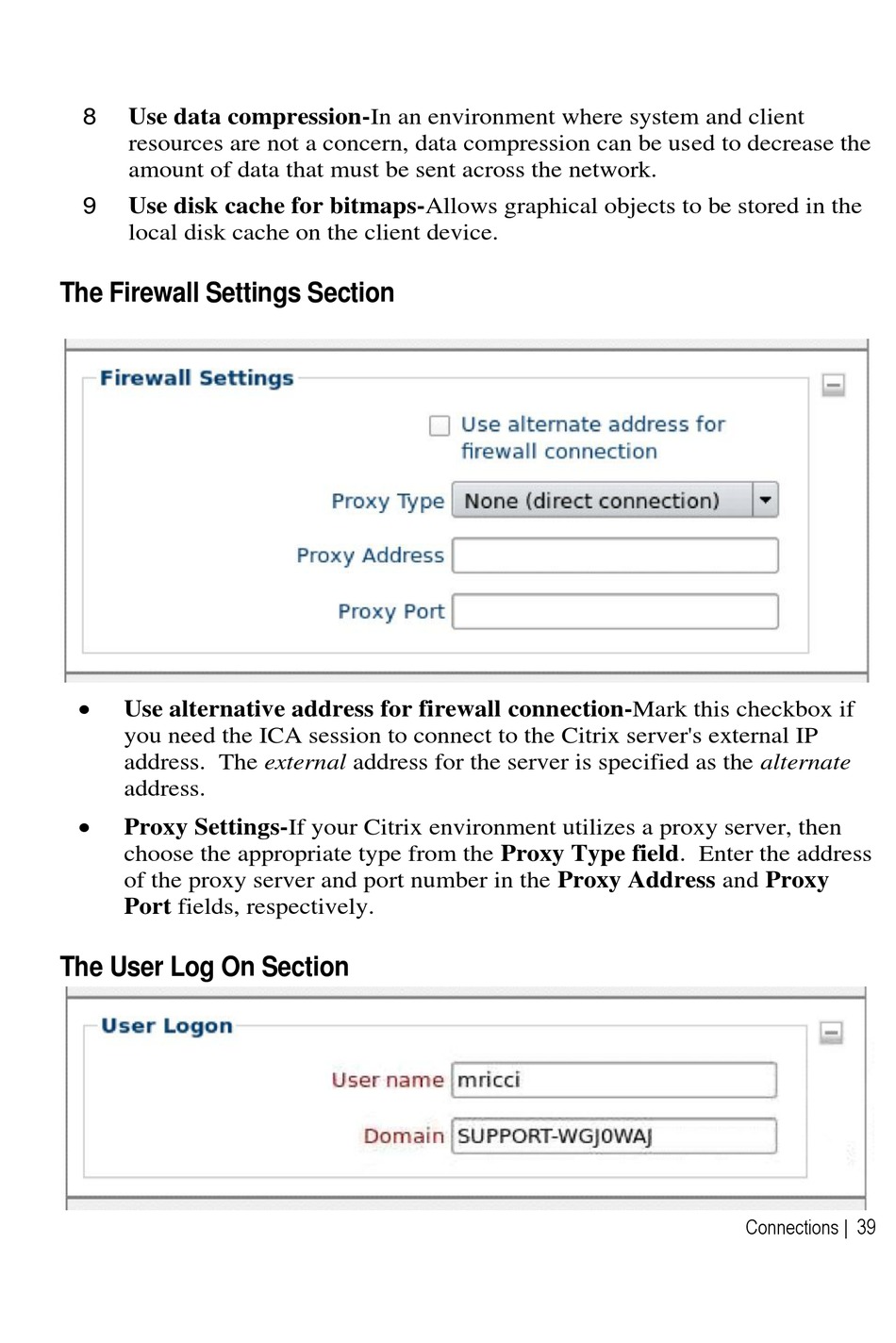

Devon IT OptiPlex VDI Blaster Edition Administration Manual page 39

8
Use data compression-In an environment where system and client
resources are not a concern, data compression can be used to decrease the
amount of data that must be sent across the network.
9 Use disk cache for bitmaps-Allows graphical objects to be stored in the
local disk cache on the client device.
The Firewall Settings Section

Use alternative address for firewall connection-Mark this checkbox if
you need the ICA session to connect to the Citrix server's external IP
address. The external address for the server is specified as the alternate
address.

Proxy Settings-If your Citrix environment utilizes a proxy server, then
choose the appropriate type from the Proxy Type field. Enter the address
of the proxy server and port number in the Proxy Address and Proxy
Port fields, respectively.
The User Log On Section
Connections | 39
