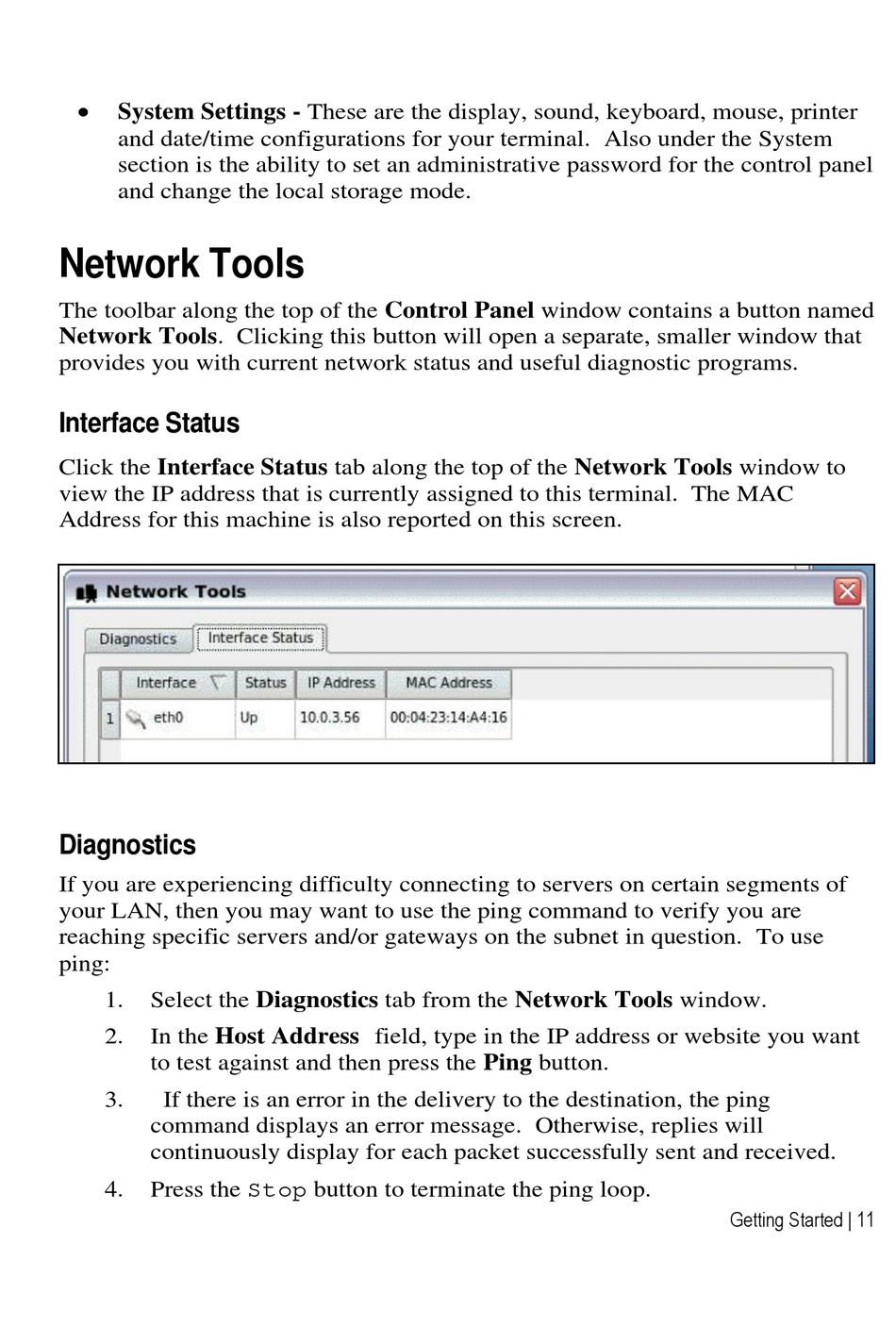

Network Tools - Devon IT OptiPlex VDI Blaster Edition Administration Manual


System Settings - These are the display, sound, keyboard, mouse, printer
and date/time configurations for your terminal. Also under the System
section is the ability to set an administrative password for the control panel
and change the local storage mode.

Network Tools

The toolbar along the top of the Control Panel window contains a button named
Network Tools. Clicking this button will open a separate, smaller window that
provides you with current network status and useful diagnostic programs.
Interface Status
Click the Interface Status tab along the top of the Network Tools window to
view the IP address that is currently assigned to this terminal. The MAC
Address for this machine is also reported on this screen.
Diagnostics
If you are experiencing difficulty connecting to servers on certain segments of
your LAN, then you may want to use the ping command to verify you are
reaching specific servers and/or gateways on the subnet in question. To use
ping:
1. Select the Diagnostics tab from the Network Tools window.
2. In the Host Address field, type in the IP address or website you want
to test against and then press the Ping button.
3. If there is an error in the delivery to the destination, the ping
command displays an error message. Otherwise, replies will
continuously display for each packet successfully sent and received.
Press the Stop button to terminate the ping loop.
4.
Getting Started | 11
