Operating Guide | TechCase iC7
Control Panel of the Frequency Converter
3.5
The iC7-Automation Frequency Converter has a control panel, which is used to set up the drive parameters and monitor the drive status.
For detailed information and instructions for using the control panel, see the iC7 Series Industry Application Guide.
Standard I/O Panel
3.6
The standard I/O panel is included in the TechCase iC7 delivery by default. The panel is connected to the case with the D-type cable,
which is also included in the delivery.
The standard I/O panel includes:
2 potentiometers for analog inputs
l
An analog meter for the analog output (range 0–20 mA)
l
6 dip switches with indication lights for digital inputs
l
6 indication lights for relays
l
2 dip switches and 3 indication lights for safety I/Os
l
DIGITAL INPUT
DI1 DI2 DI/DO1 DI/DO2
13 14 15
RELAY X101
1 2 3
SAFETY I/O
24V INA+ INB+
41 42 43

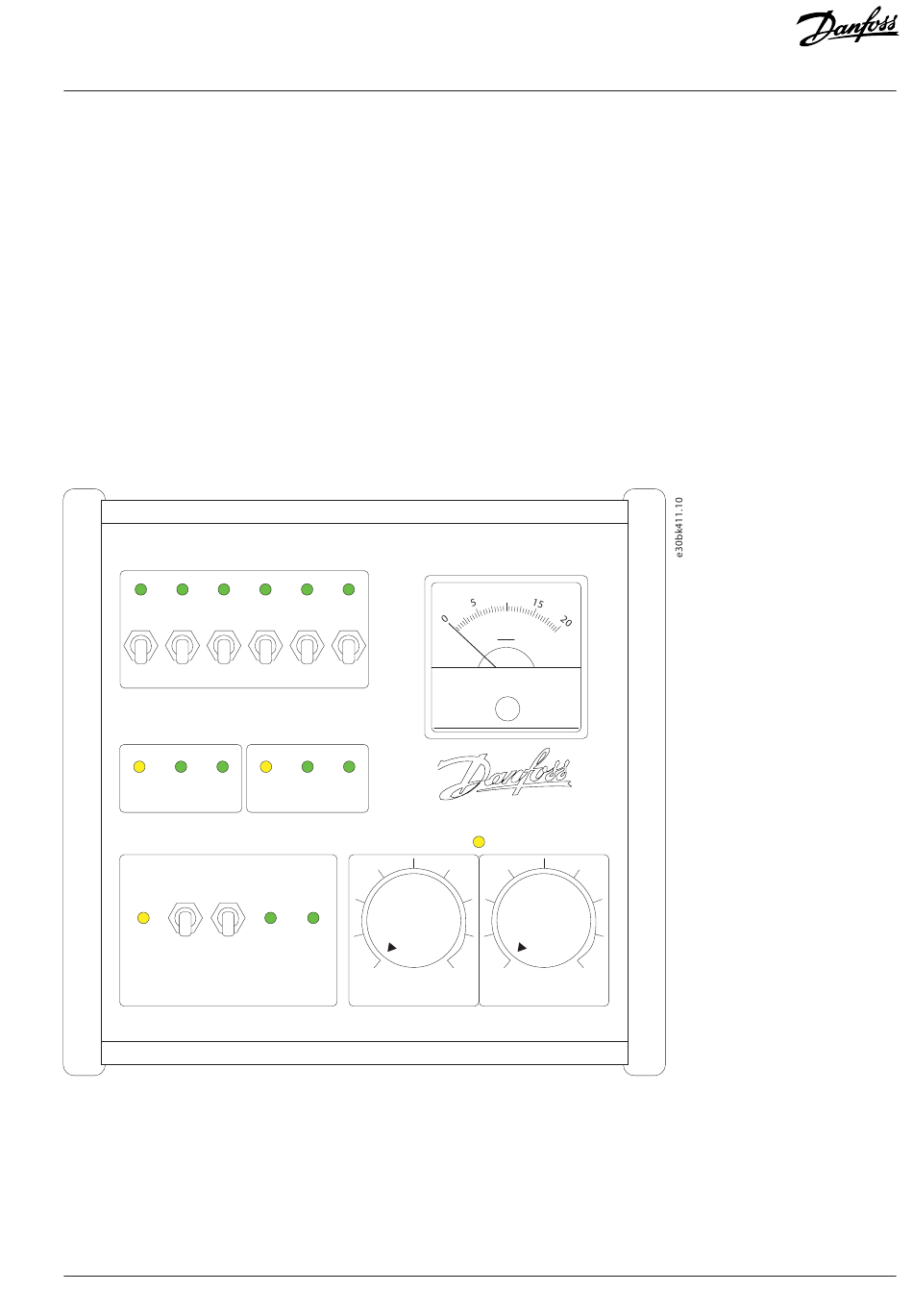

Figure 3: Interface of the Standard I/O Panel
Software
3.7
By default, the iC7-Automation Frequency Converter in the TechCase iC7 includes the iC7 Series Industry application software.
The latest version of the software is installed on the iC7-Automation Frequency Converter at the factory. There can still be a newer
version of the software available. Check the commissioning report from of the drive, and if necessary, update the software.
Danfoss Drives Oy © 2024.09
DI3 DI4
16 17 18
RELAY X102
4 5 6
FB+ FB-
44 48
AI01
ANALOG OUT
10
mA
ANALOG IN
AI02
