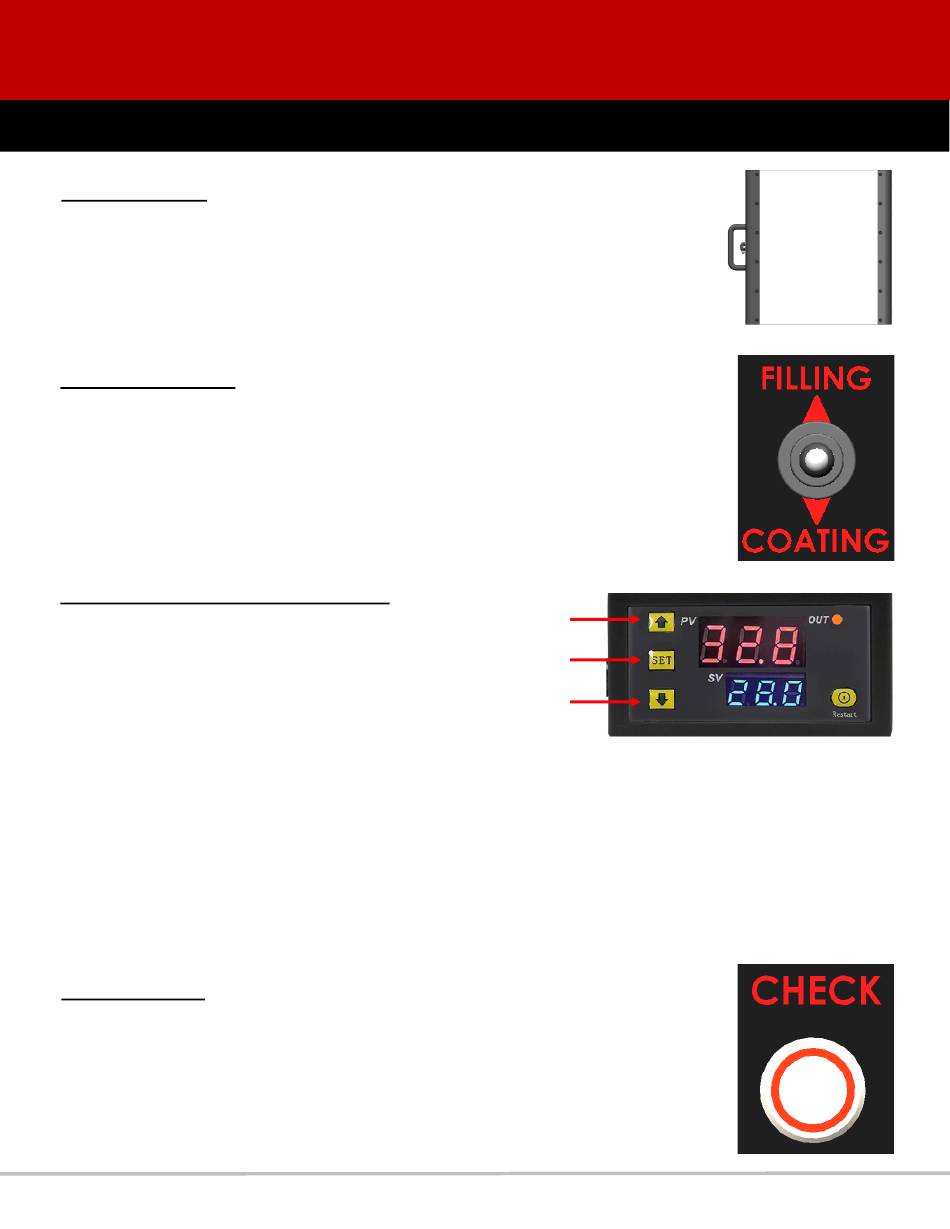

Safety Screen:
The Safety Screen is equipped with a safety hinge, which stops the pump when the
screen is not in closed position. Opening the screen will cause Emergency Check to
activate.
Direction Switch:
The Direction Switch is used to change the direction of the actuators.
•
Upwards (FILLING): Used to draw more resin in to cylinder from the reservoirs.
•
Downwards (COATING): Used to pump the resin.
Cylinder and Hose Reel Heating:
The Xpress Coating Pump cylinders and Hose Reel Blanket
are heated.
•
Heating thermostat has been pre-set:
•
Pump: 40°C (104°F)
•
Reel: 40°C (104°F)
•
There is an indicator light OUT which is lit when the
heating is active.
•
Actual temperature is displayed in
•
The set temperature is displayed in
•
To adjust temperature, shortly press SET and then select
desired temperature with UP and DOWN buttons.
NOTE! The resin warms up slower than the cylinders or the hose reel. It is recommended to warm up the
system for at least 30 minutes (depending on the ambient temperature).
Check Button:
Check button is used to check messages shown on the pump display. Actions that
require Check Button to be pressed are presented with an audible beep.
Press the button firmly.
NOTE! This button is NOT the same as the Emergency Check Button!
