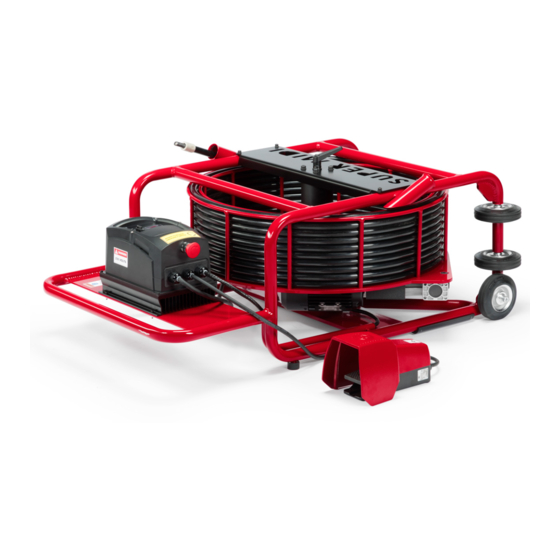

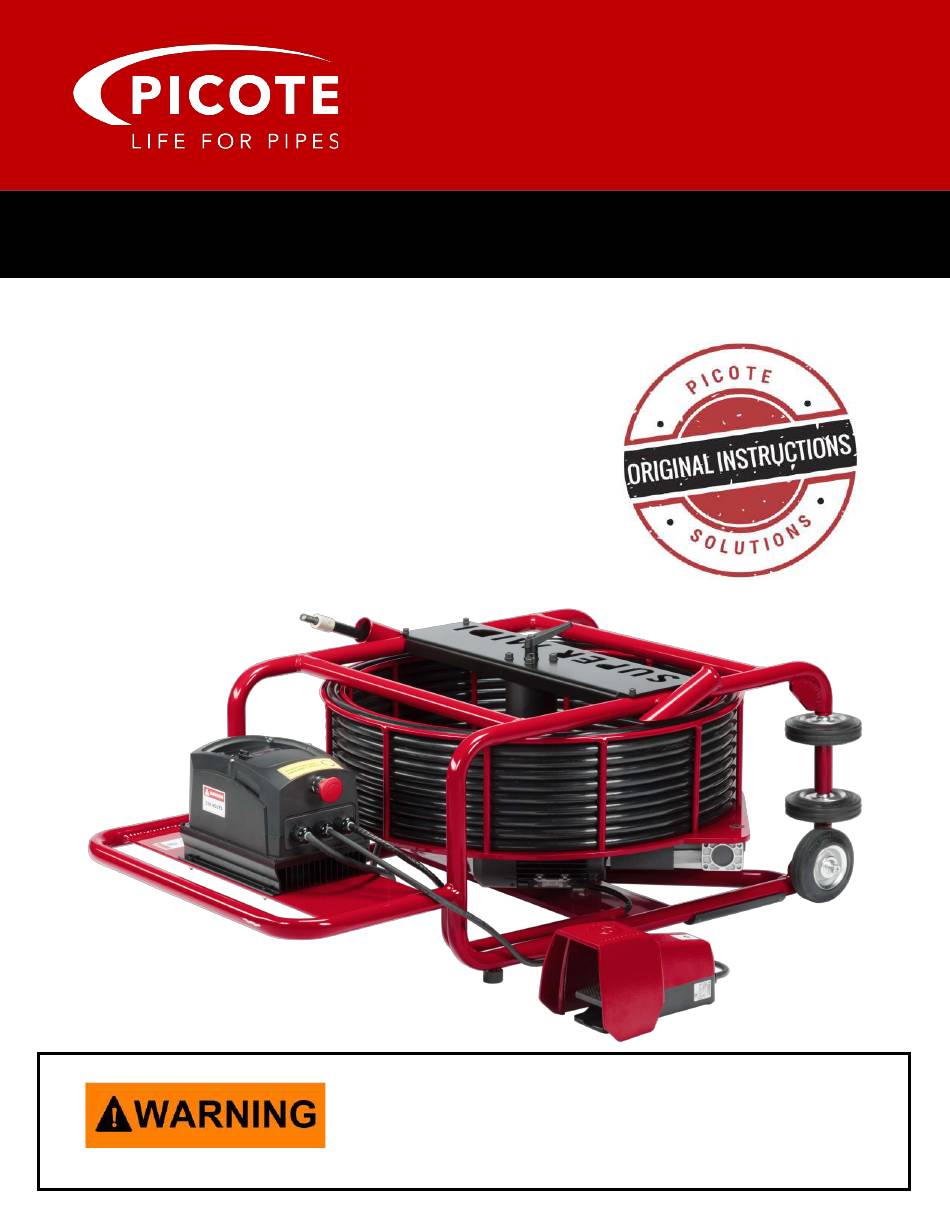

- Page 1 MINI CLEANER SUPER MIDI 12/20 SUPER MIDI MILLER 8/16 | SUPER MIDI MILLER OPERATION & SAFETY MANUAL These instructions are for your personal safety. Always ensure that you have read and understood these instructions before using the machinery. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Accessories & Spare Parts Practical Tips & Safety Advice Troubleshooting Flowchart Troubleshooting Fault Codes Warranty Policy & Procedure To watch practical demonstration videos, take a course, or to download an electronic copy of these Instructions, please visit www.picoteinstitute.com. Picote Solutions Oy Ltd www.picoteinstitute.com... -
Page 3: Safety Information
Suitable respirator to prevent any dust or fumes being inhaled or consumed, which could cause occupational asthma or dermatitis. www.picotesolutions.com www.picoteinstitute.com Picote Solutions Oy Ltd... - Page 4 Do not stand on the machine. 13. Only use this machine with the accessories and spare parts offered by the Picote Solutions. Accessories and spare parts should only be used in the manner intended and as described by Picote Solutions.
-
Page 5: Environment, Transport, Storage & Disposal
Never transport the machine with tool attached to the shaft. Always retract the camera back to it’s housing during transport. If using a pick-up or trailer to transport Picote Millers always suitable cover the unit to protect it from the elements. -
Page 6: General Information
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE When in use always lay the machine down horizontally on the floor. When not in use some non-hazardous Picote Flexible Shaft Lubricant might leak from the hand guard. Picote Solutions Oy Ltd... - Page 7 DIGITAL CONTROL BOX Parameters of your Super Midi Miller have been pre-set by the manufacturer. Picote Solutions accepts no liability for failures or accidents caused by tampering with or changing of the manufacturer settings. The control box has been pre-programmed and requires no additional adjustments.
-
Page 8: Technical Data
3. Reinstating branches in sewers and drains by drilling and grinding. 4. Cutting excess length of cured linings. 5. Removing metallic inserts. AVAILABLE TOOLING Always follow the Picote Solutions instructions when installing and using the machine with accessories. Original Chain Cyclone Chain Original PVC Chain... -
Page 9: Voltage & Power Supply
When used with an extension cord, the plug must be a 3 prong, 15amp (125V). If a power gener- ator is used, a minimum 3 kW required. Adapters may be necessary for generator connections. Contact your reseller or Picote technical support for more information. Super Midi Millers in these regions have special plugs. -
Page 10: Noise Levels, Vibrations & Emissions
Hand vibration levels depend on the distance from the tool head to the user and working conditions. The vibra- tion levels below have been measured during normal lining activities at Picote worksites in Finland. Vibration has been determined according to ISO-5349 and EU-directive 2002/44/EG. The table below details the safe daily ex- posure time for the user depending on tool used. -
Page 11: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE We Picote Solutions Oy Ltd as the responsible manufacturer, declare that the following Picote Solutions Oy Ltd drain cleaning machine: Super Midi Miller Model No: 12/20 is of series production and... -
Page 12: Operating Instructions
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Before operation: • Before installing Picote tools, always make sure that the machine is fully turned off and unplugged. • Always round off the sharp edges of the shaft to avoid cuts and to make it easier to insert the shaft into the tool or for a leader to be used. -
Page 13: Attaching Tools
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE ATTACHING TOOLS TIGHTENING THE SET SCREWS When you add a tool always tighten the screws starting from the screw furthest away from the end of the flexible shaft (where applicable). www.picoteinstitute.com Picote Solutions Oy Ltd... -
Page 14: Maintenance Programme & Warranty Periods
I: Inspect, fix or replace if needed. P: Perform, replace if needed. R: Replace WARRANTY PERIODS Picote Solutions grants limited warranty for certain machines, equipment & components. Read more detailed information on page 29 (Picote Warranty Policy and Procedure). Service Period 3 months 6 months 1 year Milling machine &... -
Page 15: Maintenance
CHANGING THE FLEXIBLE SHAFT Only use the shaft and its outer casing specified by Picote Solutions. Order the replacement shaft from your reseller. The flexible shaft is pre-treated with Picote Flexible Shaft Lubricant and the casing replaced prior to shipping. -
Page 16: Servicing The Flexible Shaft
SERVICING THE FLEXIBLE SHAFT & ITS OUTER CASING The flexible shaft is pre-treated with Picote Flexible Shaft Lubricant and the casing replaced prior to shipping. Always inspect the condition of the shaft and its outer casing regularly. Also, inspect at least once a week that the shaft is well attached under the hand guard at the machine end. -
Page 17: Inspecting Flexible Shaft For Damage
Appropriate oils to use: Shell omala 100 or Agip blasia 100 or Tamoil ep 100 Amount of oil: 42 g / 1.5 oz / 47ml If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions. -
Page 18: Accessories & Spare Parts
ACCESSORIES & SPARE PARTS SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE You must use only the Picote Solutions accessories and attachments with the machine described in this operations manual. The use of other accessories or attachments could present a risk of injury or death. -
Page 19: Practical Tips & Safety Advice
PRACTICAL TIPS & SAFETY ADVICE SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Here are some useful tips on how to get the most out of your Picote system. Always use the recommended tools for maintenance to avoid personal injury. - Page 20 PRACTICAL TIPS & SAFETY ADVICE SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Here are some useful tips on how to get the most out of your Picote system. Always use the recommended tools for maintenance to avoid personal injury.
-
Page 21: Troubleshooting Flowchart
Change shaft if necessary. Did it help? Super Midi Miller is OK! If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions at claims@picotesolutions.com www.picoteinstitute.com Picote Solutions Oy Ltd... -
Page 22: Troubleshooting Fault Codes
Indicates a fault on the output of the drive, such as one phase missing, motor phase currents not balanced. Check the motor and connections. If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions at claims@picotesolutions.com Picote Solutions Oy Ltd www.picoteinstitute.com... -
Page 23: Warranty Policy & Procedure
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE Limited Warranty: Picote warrants to the original End User that the Product purchased by such End User will operate in accordance with, and substantially conform to their published specifications when shipped or otherwise... - Page 24 Revision number: Rev. Date: NOV. 2020 Author: Ville Hukkanen Please Contact: Accepted: Dawn Greig 251120 Your Reseller / Salesperson or Picote www.picotesolutions.com Production & R&D International Offices Technical Support Finland. United Kingdom. USA. support@picotesolutions.com Pienteollisuustie 24 06450 Porvoo, Finland support@picotesolutions.com Claims claims@picotesolutions.com...
