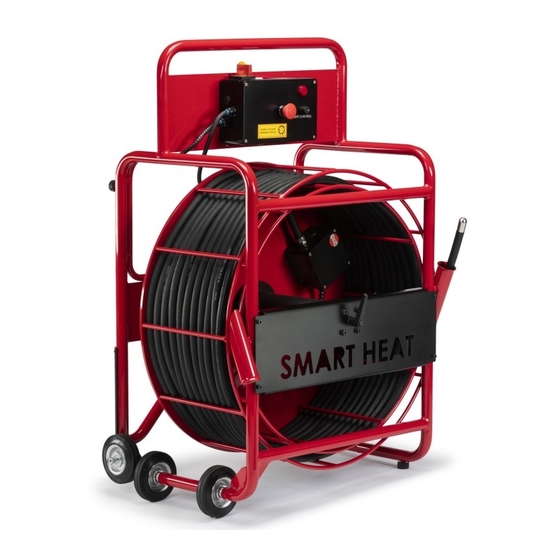

- Page 1 PICOTE SMART HEAT MILLER MODEL: MINI SMART HEAT MILLER MAXI SMART HEAT MILLER OPERATION & SAFETY MANUAL These instructions are for your personal safety. Always ensure that you have read and understood these instructions before using the machinery. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Picote Smart Heat Miller Table of Contents TOPIC PAGE/S Safety Information General Information Technical Data Intended Use Voltage & Power Supply Safety Features CE Declaration of Conformity Operating Instructions Starting & Using the Machine Smart Heat Curing Time Temperature Curve... -
Page 3: Safety Information
Always wear suitable heat-resistant gloves when using the Smart Heat Millers to pre- vent any burn injuries. Any open injuries or skin irritations should be covered at all times to avoid contact with sewage, chemicals or dust. Picote Solutions Oy Ltd www.picotesolutions.com www.picotesolutions.com... - Page 4 9. Do not stand on the machine. 10. Only use this machine with the accessories and spare parts offered by the Picote Solutions. Accessories and spare parts should only be used in the manner intended and as described by the Picote Solutions.
-
Page 5: General Information
GENERAL INFORMATION When in use, always lay the machine down horizontally on the floor. www.picotesolutions.com Picote Solutions Oy Ltd... - Page 6 GENERAL INFORMATION When in use, always lay the machine down horizontally on the floor. www.picotesolutions.com Picote Solutions Oy Ltd...
-
Page 7: Technical Data
Element *If there are several 90 bends in DN50/2” pipes, the Mini Smart Heat Miller cable goes around them better. INTENDED USE This machine is intended to shorten the curing time of the lining. The main purpose of the machine is to en- sure that during cold season added heating start the curing process so that the lining is cured over night. -
Page 8: Voltage & Power Supply
Never alter the plug in any way. Use the plug with an extension cord only if it can be fully inserted into the receptacle. Use the Picote Smart Heat Millers with a heavy duty extension cord only. If a power generator is used as power source, ensure that the power rating is sufficient. -
Page 9: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY We Picote Solutions Oy Ltd as the responsible manufacturer, declare that the following Picote Solutions Oy Ltd machine: Mini Smart Heat Miller Model No: 8/17 is of series production and Conforms to the following EU Directive: ATEX 2014/34/EU &... -
Page 10: Operating Instructions
After the lining is cured, pull the heating cable to the reel, remove curing cap and finish off the end of the lining. The heating cable used into the Picote Smart Heat Millers is self-adjusting. Heating element observes the temper- ature constantly and prevents the temperature to rise above +60 C (+140 F) in the pipe thus preventing any dam- ages to the lining. - Page 11 OPERATING INSTRUCTIONS Step 1. Shoot the lining, secure the end of the lining with Picote Liner Compressor and add Curing Cap. Step 2. Add hose clamps to secure the lining to the Curing Cap. Picote Solutions Oy Ltd www.picotesolutions.com...
- Page 12 OPERATING INSTRUCTIONS Step 3. Pressurize the lining again. Step 4. Push the Heating Cable through the lining and power up the Picote Smart Heat Mil- ler. Picote Solutions Oy Ltd www.picotesolutions.com...
-
Page 13: Smart Heat Curing Time Temperature Curve
In field tests it has been noted that the curing time of the lining is 35 % faster when the Picote Smart Heat Miller has been used. -
Page 14: Accessories & Spare Parts
ACCESSORIES & SPARE PARTS You must use only the Picote Solutions accessories and attachments with the machine described in this operations manual. The use of other accessories or attachments could present a risk of injury or death. The accessories or attachments should only be used in the proper and intended manner, and always follow Picote Solutions instructions. -
Page 15: Troubleshooting Flowchart
Yes but not properly Check that power outlet meets the requirements If there is problem that you cannot resolve with this manual, please consult your Picote Reseller or Picote Solutions. Picote Solutions Oy Ltd www.picotesolutions.com... -
Page 16: Warranty Policy & Procedure
WARRANTY POLICY AND PROCEDURE Limited Warranty: Picote warrants to the original End User that the Product purchased by such End User will operate in accordance with and substantially conform to their published specifications when shipped or otherwise delivered to the End User and for a period of one (1) year, except electric motors for which the warranty... - Page 17 Revision number: Rev. 1 Date: 15 Oct. 2019 Author: Mikko Långvik Please Contact: Accepted: Your Reseller / Salesperson or Picote www.picotesolutions.com Production & R&D International Offices Technical Support Finland. United Kingdom. USA. Jake Saltzman Raudoittajantie 4 Dawn Greig World Wide Technical Director 06450 Porvoo, Finland Global Business Development &...
