Wyrestorm SYN-CTL-HUB Quick Start Manual

Protocol converter for the SYN-TOUCH10
SYN-CTL-HUB
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Read through the Wiring and Connections
guidelines before creating or choosing premade cables.
• Visit the product pages to download the latest firmware, document version,
additional documentation, and configuration tools.

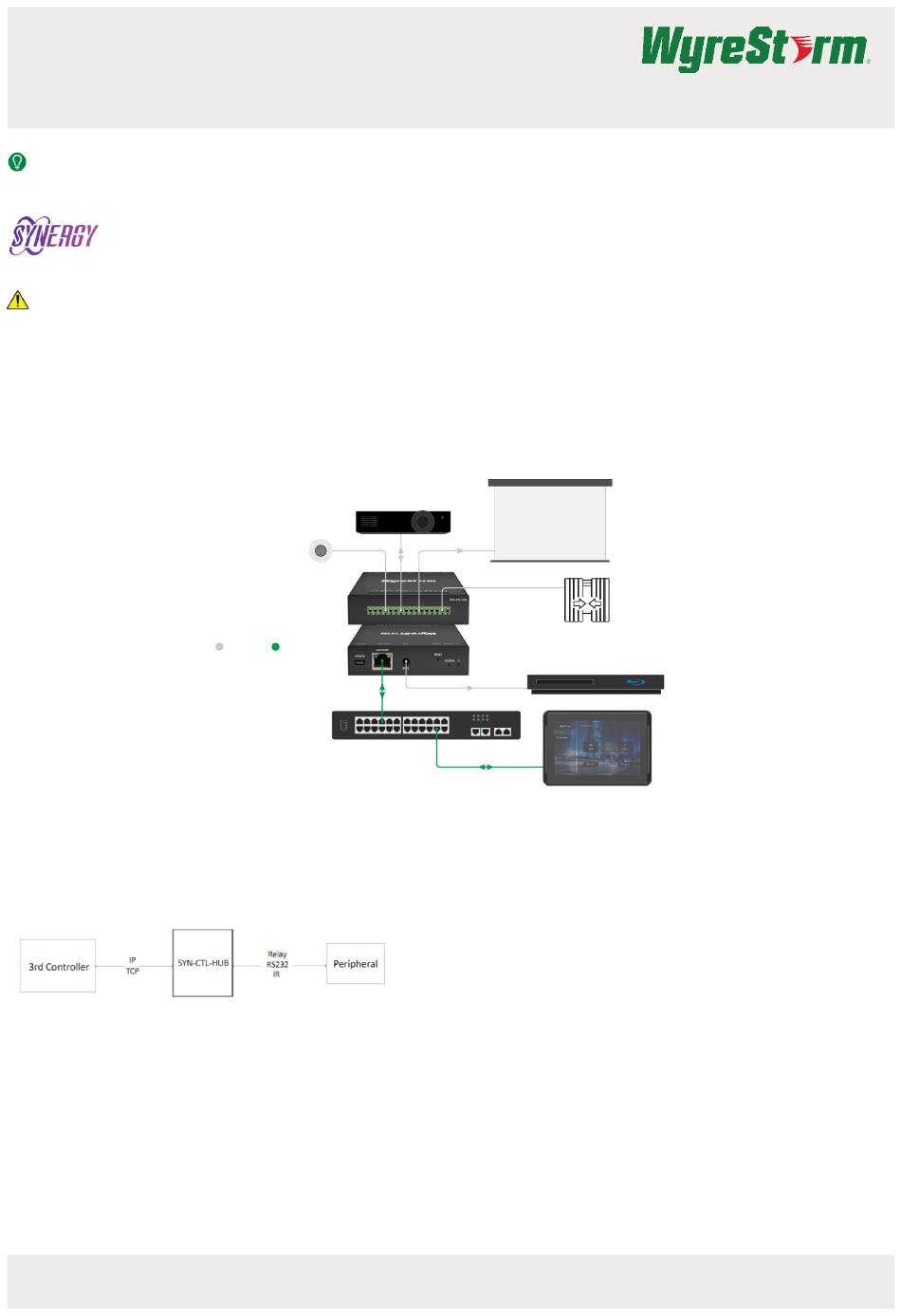

Wiring Diagram
The SYN-CTL-HUB controller can work with the SYN-TOUCH10 touchpad (or any third-party controllers) to control the attached peripherals (e.g. TVs, curtains)
through RS-232, IR and/or relay commands.
All commands are sent from the touchpad to controller via TCP connection.
The default address of the controller is 169.254.51.1, and the default port no. is 60005.
General Commands:
Start: BQ
Keepalive:
Send: IQ
Response: LP=0
Copyright © 2024 WyreStorm ProAV Corporation |
SYN-CTL-HUB Quickstart Guide | 241119
section for important wiring
Sensor
KEY
Control Ethernet
wyrestorm.com
In the Box
1x SYN-CTL-HUB
2x Mounting Brackets (with Screws)
1x IR Emitter
1x Quickstart Guide (This Document)
Projector Screen
Projector
SYN-CTL-HUB
Front
Motorized Curtains
SYN-CTL-HUB
Rear
Blu-Ray Player
SYN-TOUCH10
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
1 of 2
Quickstart Guide
UHD
