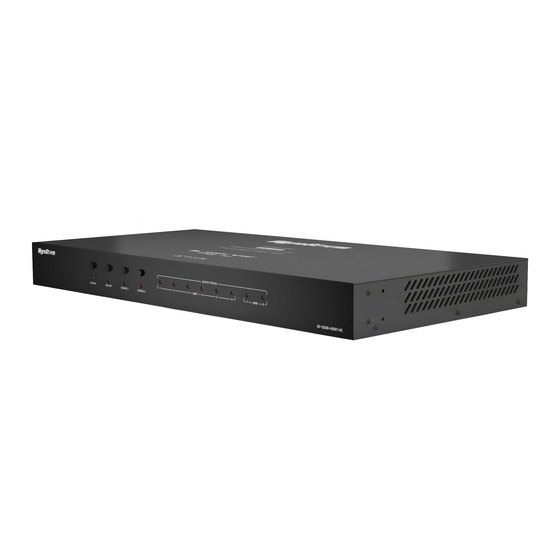

2x8 4K UHD HDCP 2.2 HDBaseT Splitter with PoH & CEC
(4K 35m/115ft | 1080p 70m/230ft)
SP-0208-HDBT-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Install the latest firmware to ensure that all features described in this
document are available during and after installation.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• An HDBaseT receiver is required to use this product.
• See Recommended Products for guidelines on choosing a receiver.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Recommended Products
To take full advantage of the features of this splitter, WyreStorm recommends
the following products be used to complete the installation.
RX-70-4K HDBaseT Receiver – This class A receiver can be used on HDBT
Outs 1~2 to achieve the maximum resolution and distance of 70m/230ft from
these ports.
RX-70-POH HDBaseT Receiver – This class B receiver can be used on HDBT
Outs 3~6 achieve the maximum resolution and distance of 35m/115ft from
these ports.

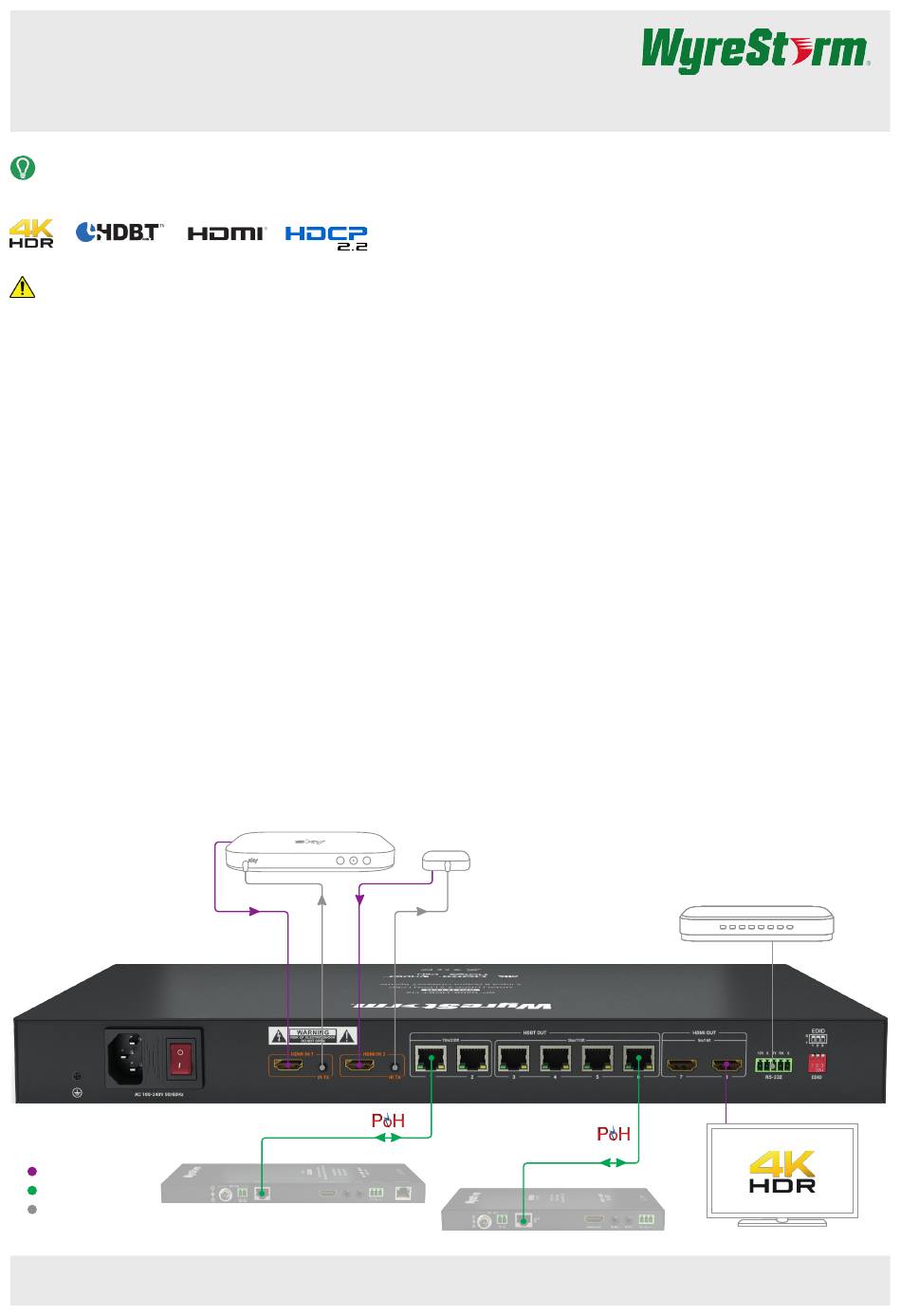

Basic Wiring Diagram
HDBT Out 1~2: Up to 70m/230ft
KEY
HDMI
HDBaseT
IR/RS-232
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
SP-0208-HDBT-H2 Quickstart Guide | 171101
Satellite Receiver
IR
HDMI
HDMI
RX-70-4K
HDBaseT Receiver Guidelines
• The HDBaseT outputs on this product support different levels of HDBaseT.
See HDBaseT Out Resolution Distances for more information.
• If CEC control of displays is required, the RX-70-4K-ARC cannot be used as
it does not support this feature.
In the Box
1x SP-0208-HDBT-H2 Splitter
1 x US AC Power Cord (AC 100 - 240V 50/60Hz)
1 x Euro AC Power Cord (AC 100 - 240V 50/60Hz)
1 x UK AC Power Cord (AC 100 - 240V 50/60Hz)
2 x IR Emitter
1x 5-pin Phoenix Connector
2x Mounting Brackets (Rack Ears)
1x Quickstart Guide (This Document)
Additional Information
Visit the product page on wyrestorm.com for additional content regarding this
product.
• Product API for configuring control via a 3rd party control system.
• Firmware updates – We consistently improve our products and may supply
firmware updates to improve the operation.
Media Player
IR
HDBT Outs 3~6:
Up to 35m/115ft
1 of 4
Quickstart Guide
RS-232 Control System
RX-70-POH
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm SP-0208-HDBT-H2
Summary of Contents for Wyrestorm SP-0208-HDBT-H2
- Page 1 2x8 4K UHD HDCP 2.2 HDBaseT Splitter with PoH & CEC (4K 35m/115ft | 1080p 70m/230ft) Quickstart Guide SP-0208-HDBT-H2 WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. HDBaseT Receiver Guidelines IMPORTANT! Installation Requirements • The HDBaseT outputs on this product support different levels of HDBaseT. • Visit the product page to download the latest firmware, document version, See HDBaseT Out Resolution Distances for more information. additional documentation, and configuration tools. • If CEC control of displays is required, the RX-70-4K-ARC cannot be used as • Install the latest firmware to ensure that all features described in this it does not support this feature. document are available during and after installation. • Read through the Wiring and Connections section for important wiring In the Box guidelines before creating or choosing premade cables.
- Page 2 HDBaseT Out Resolution Distances There are 2 different types of HDBaseT ports on the SP-0208-HDBT-H2 which will transmit at different distances as some are Class A while the others are Class B. The diagram below shows the distances when a Class A receiver is used on either output. Note that while ports 1~2 are class A and will transmit up to 70m/230ft, this is only when a class A receiver is used. Connecting a class B receiver to these ports will limit the distance to 35m/115ft. This same rule applies to connecting a class A receiver to ports 3~6, output will be limited to 35m/115ft. Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment. HDMI/HDBaseT Wiring IMPORTANT! HDMI/HDBaseT Wiring Guidelines • The use of patch panels, wall plates, cable extenders, kinks in cables, and Pin 1 Pin 1: White/Orange Pin 5: White/Blue Pin 8 electrical or environmental interference will have an adverse effect on HDMI Pin 2: Orange Pin 6: Green and Ethernet transmission limiting performance. Steps should be taken to Pin 3:...
- Page 3 No or Intermittent 3 party Device Control • Verify that power is being supplied to all devices in the system and that they • Verify that the IR cable(s) is properly terminated. are powered on. • See IR TX Wiring. • Verify that all source and HDBaseT connections are not loose and are • Verify that the IR emitter is located near the IR receiver on the device. functioning properly. • Verify that the HDBaseT cable is properly terminated per the HDMI/ Troubleshooting Tips: HDBaseT Wiring section. • WyreStorm recommends using a cable tester or connecting the cable to • Verify that the splitter, receiving device, and display support the output other devices to verify functionality. resolution of the source. • Use a flashlight to locate the IR receiver behind any tinted panels on the • Refer to Video Resolutions in the Specifications table before determining device being control cable type and length. • Verify that the cable length matches the HDBT Out port distances. See HDBaseT Out Resolution Distances. • If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated. Copyright © 2017 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
- Page 4 Rack Units/Wall Box Height With | Without Feet 51.3mm/2.02in | 43.5mm/1.72in Width With | Without Brackets 482.6mm/19in | 440mm/17.33in Depth With | Without Handles 220mm/8.67in | 220mm/8.67in Weight 0.7kg/1.54lbs Regulatory Safety and Emission CE | FCC | RoHS Warranty Information This product is covered by a 3 year limited parts and labor warranty. During this period there will be no charge for unit repair, component replacement or complete product replacement in the event of malfunction. The decision to repair or replace will be made by the manufacturer. This limited warranty only covers defects in materials or workmanship and excludes normal wear and tear or cosmetic damage. Visit the product page located at wyrestorm.com for additional information on this product including important technical information not provided in this document and warranty terms & conditions. Copyright © 2017 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 4 of 4 SP-0208-HDBT-H2 Quickstart Guide | 171101 support@wyrestorm.com...
