NetworkHD™ 300 Series 1080p AV over IP H.264
Open Standards Encoder
NHD-300-TX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the NetworkHD product pages download section at wyrestorm. com
to check for the latest firmware, document versions, and WyreStorm
Management Suite configuration tools.
• Install the latest firmware onto all encoders using the firmware upgrade
section in the Web UI. Full firmware update instructions are included with
the firmware download.
• Certain transport protocols of the NHD-300-TX requires a Layer 2+ or
Layer 3 managed switch network with support for Multicast & IGMP
snooping enabled.
In the Box
1x NHD-300-TX Encoder
1x Set Wall Mounting Brackets
1x Set Rack Mounting Brackets (NHD-000-RACK4)
4x Silicone Feet
4x Panhead Screws
1x Quickstart Guide (this document)
Note: This encoder is PoE powered. Optional 12v
DC power supply available separately.

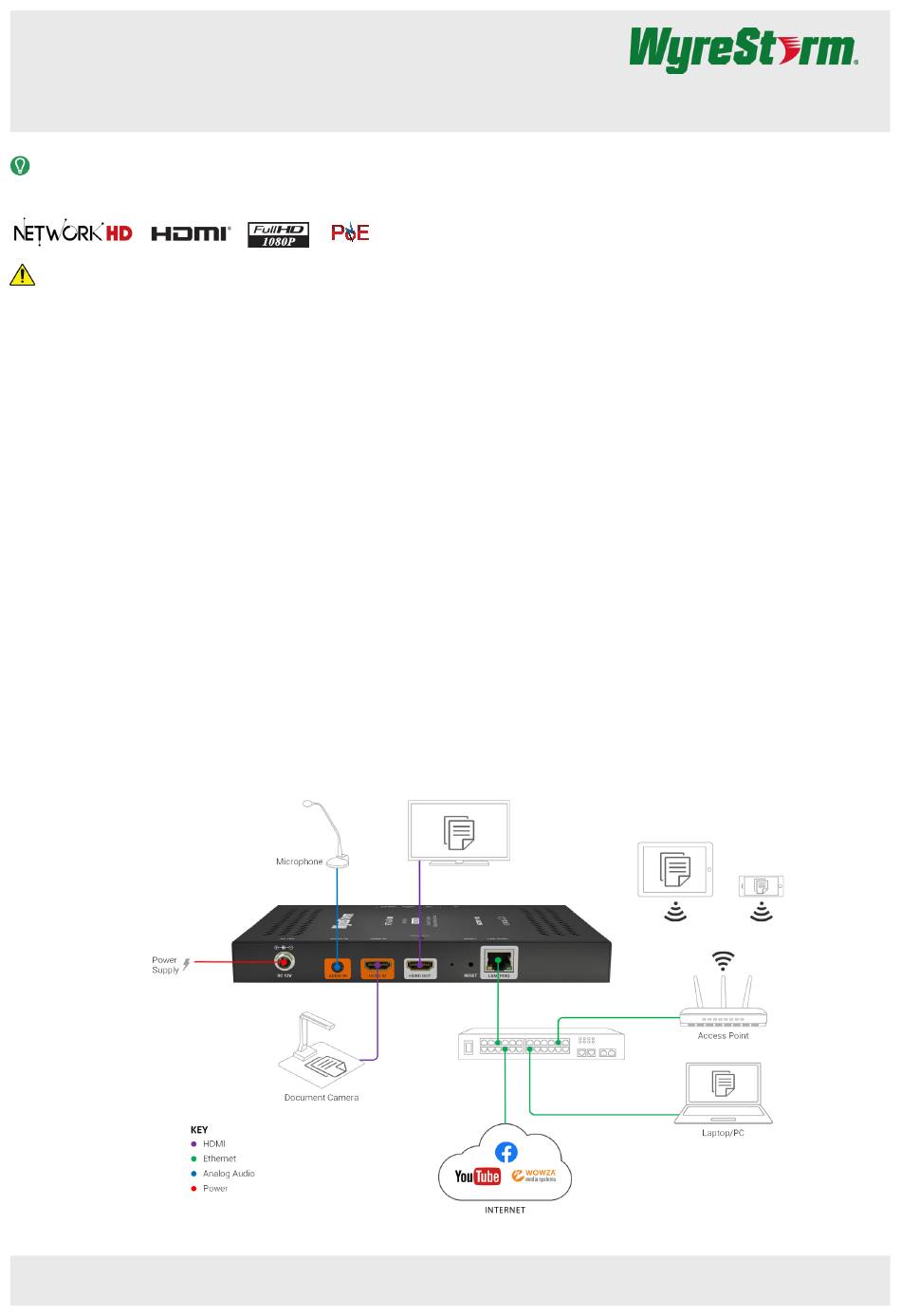

Basic Wiring Diagram
Copyright © 2020 WyreStorm Technologies |
NHD-300-TX Quickstart Guide | 200424
wyrestorm.com
•
WyreStorm highly recommends using network switches listed in the
NetworkHD Switch Recommendation Guide. These switches have been
verified by WyreStorm to meet the requirements of a NetworkHD system.
•
Configure all network switches to the exact specification of the guides at
wyrestorm.com prior to connecting any NetworkHD devices.
•
WyreStorm recommends the use of the NHD-000-RACK4 for installations
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a standard 19-
inch rack frame (EIA-310).
Additional Information
More information and required software can be found within the Download
section of the product page on
• NetworkHD Switch Recommendations
• NetworkHD Switch Configuration Guides
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
wyrestorm.com.
support@wyrestorm.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm NetworkHD 300 Series
Summary of Contents for Wyrestorm NetworkHD 300 Series
- Page 1 Open Standards Encoder Quickstart Guide NHD-300-TX WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. IMPORTANT! Installation Requirements • Visit the NetworkHD product pages download section at wyrestorm. com •...
- Page 2 LAN Port Wiring The NetworkHD 300 Series LAN port is a 1GbE link for connection to a 1000BASE-T Ethernet device port. Refer to IEEE 802.3ab for official guidance on the Ethernet link. Cables must be tested to 100MHz across the entire link. 1000BASE-T uses the IEC 60603-7 8P8C modular connector.
- Page 3 • Verify all cables are terminated and seated correctly in the encoder, network equipment and source devices. UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) Copyright © 2020 WyreStorm Technologies | wyrestorm.com 3 of 4 support@wyrestorm.com...
- Page 4 Safety and Emission CE | FCC | RCM | EAC | ROHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
