Wyrestorm SW-0402-MV-HDMI Quick Start Manual

4-input (12 source) Multi-View Scaler
with 4K Output

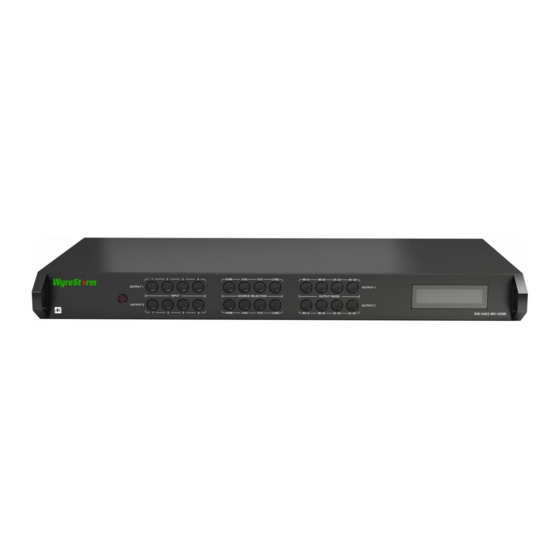

SW-0402-MV-HDMI
A dual-output multi-view scaler or 4x2 matrix, this device enables 4 sources to be shown on a single 1080p or in full resolution on a 4K display.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x SW-0402-MV-HDMI Switcher
1x 12V DC 3A Power Supply (US/UK/EU)
1x Handheld IR Remote
1x IR Receiver Extension Cable
2x Mounting Brackets
1x Quickstart Guide (this document)

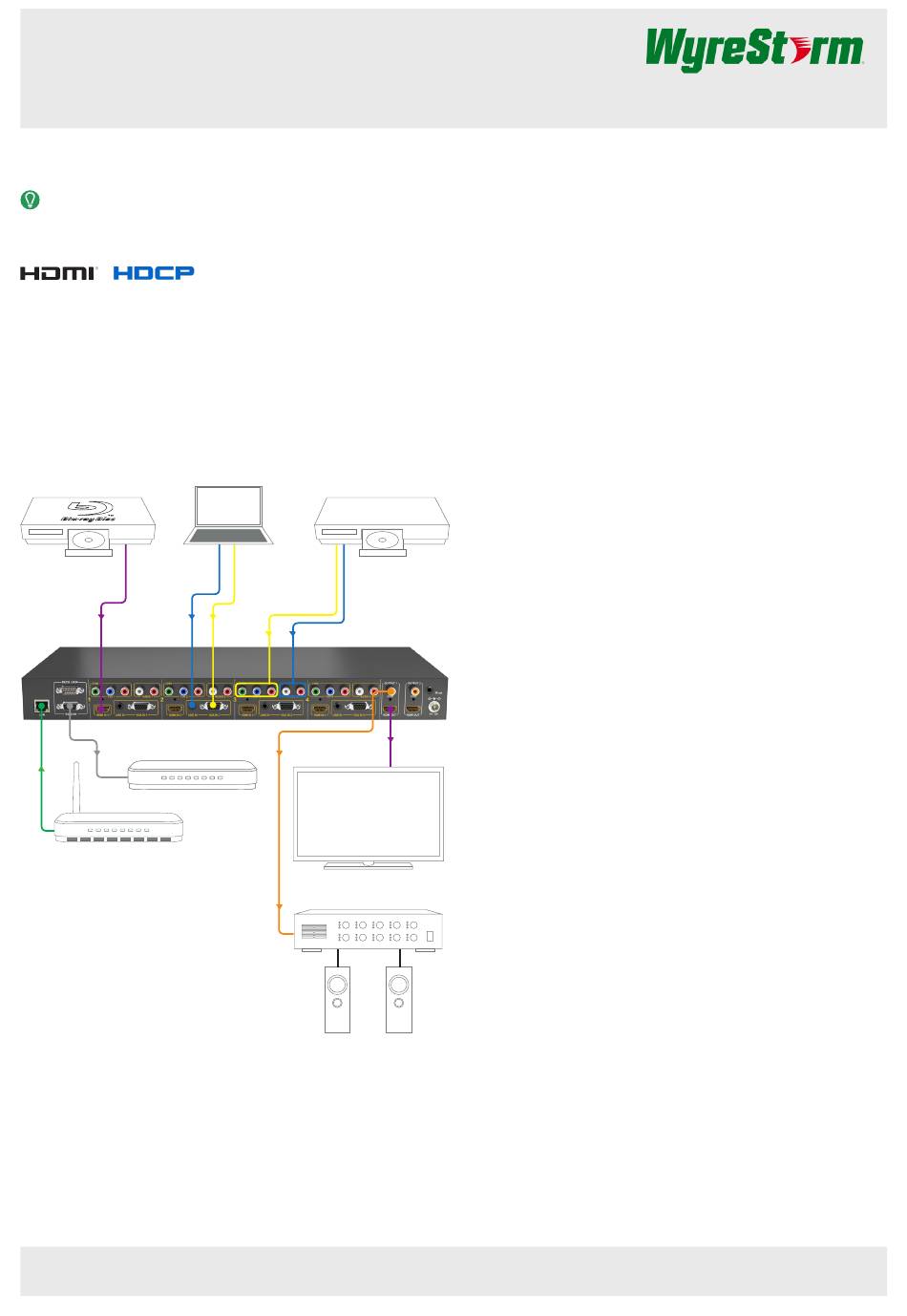

Basic Wiring Diagram
HDMI Source
Analog
HDMI from Source
RS-232 to
Control System
LAN to
Router
Copyright © 2015 WyreStorm Technologies |
SW-0402-MV-HDMI Quickstart Guide | 151014
VGA Source
YUV Source
Analog
Audio Video
Analog Video
Analog Audio
Digital Audio
HDMI Display
wyrestorm.com
Installation
Before Beginning
WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about this product.
Verify that all items are included in the packaging per the
Pre Wire
1. (Optional) If using VGA with Audio, run the wire and terminate per
the Line In Wiring
2. (Optional) If using YUV (component video), run the wire and
terminate per the
3. (Optional) If using Audio for a YUV input, run the wire and terminate
per the Audio In Wiring
4. (Optional) If using RS-232 to control the switcher, run the wire and
terminate per the
5. (Optional) If using an external IR Receiver to control the switcher,
run the wire and terminate per the
Installation
1. Connect an HDMI source to an HDMI In on the switcher using an
HDMI cable from a high quality brand such as
Repeat for other HDMI sources.
(Optional) Connect the VGA Out from a VGA source to a VGA In
2.
on the switcher. Connect the audio out for the VGA source to the
shared Line In using the cable created in
HDMI to
Display
other VGA sources.
3. (Optional) Connect the Component Video Out from a Component
Video source to a YUV In on the switcher using the cable created
in Pre Wire step 2. Connect the audio out for the Component Video
source to the shared Audio In using the cable created in
step 3. Repeat for other VGA sources.
4. Connect an HDMI Out to an HDMI input on a display device. Repeat
using the other HDMI out for additional display devices.
5. (Optional) Connect the Digital Coax Output to a digital coax input
on the display device or amplifier. Repeat for a second display
device if present.
6. (Optional) If using RS-232 to control the switcher, connect the DB9
connector to the RS-232 In port on the switcher and the opposite
end to a port on the control system
7. Connect the LAN connection to a Local Area Network (LAN) router
or switch.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
section.
YUV (Component Video) Wiring
section.
RS-232 Wiring section.
IR Wiring section.
WyreStorm Express.
Pre Wire
support@wyrestorm.com
In the Box list.
section.
step 1. Repeat for
Pre Wire
