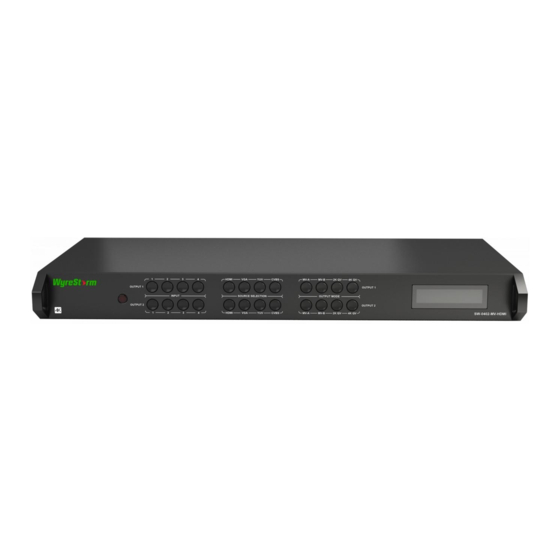

Wyrestorm SW-0402-MV-HDMI Quick Start Manual

4x12 Multi-View Scaler with 4K Output
SW-0402-MV-HDMI | SW-0402-MV-HDBT
A dual-output multi-view scaler or 4x2 matrix, this device enables 4 sources to be shown on a single 1080p or in full resolution on a 4K display
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x SW-0402-MV-HDMI or SW-0402-MV-HDBT Switcher
1x 12V DC 3A (SW-0402-MV-HDMI) Power Supply (US/UK/EU)
or 1x 12V DC 4A (SW-0402-MV-HDBT) Power Supply (US/UK/EU)
1x Handheld IR Remote
1x IR Receiver Extension Cable
2x Mounting Brackets
1x Quickstart Guide (this document)

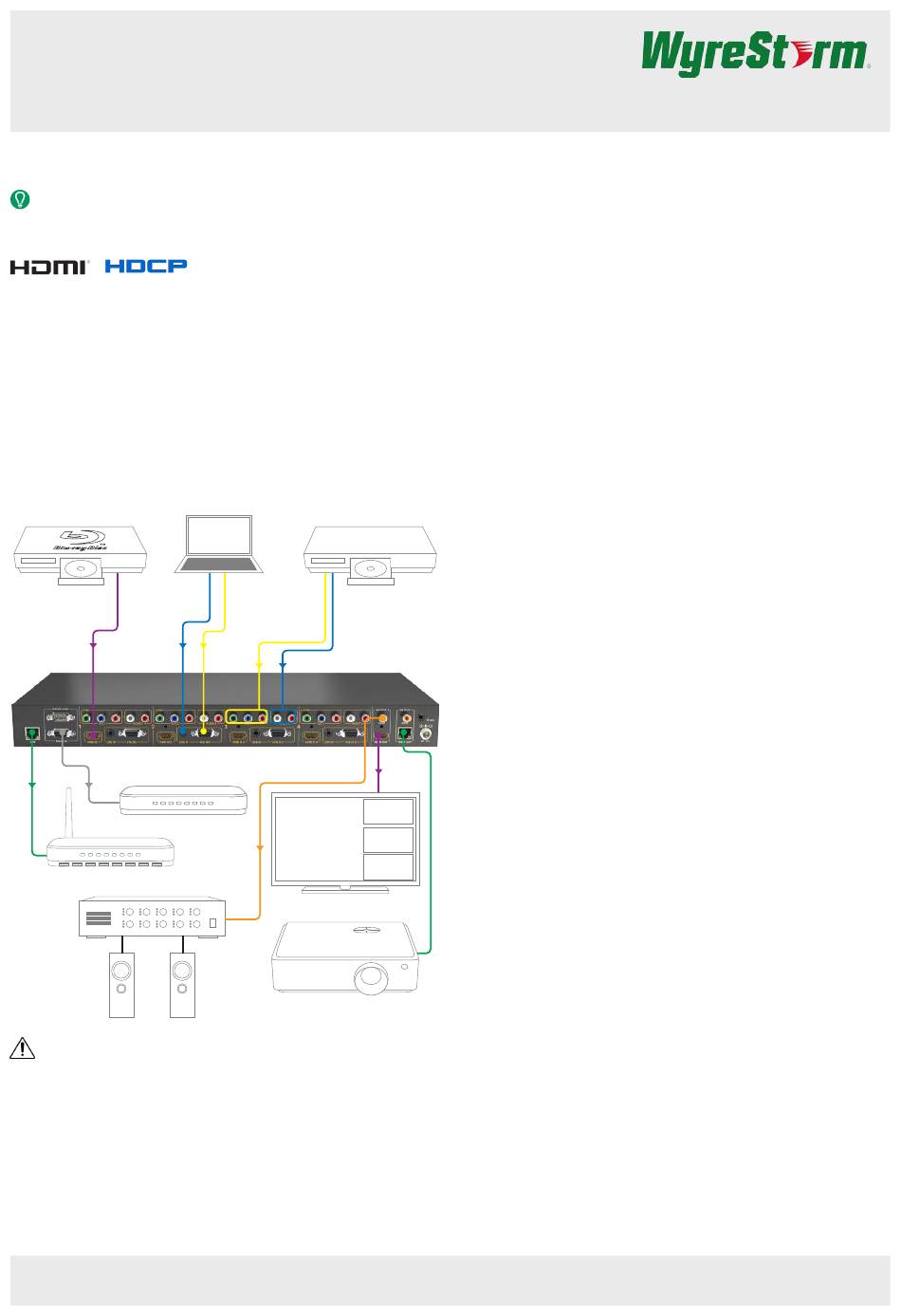

Basic Wiring Diagram
HDMI Source
HDMI from Source
RS-232 to
Control System
LAN to
Router
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information
Copyright © 2015 WyreStorm Technologies |
SW-0402-MV-HDxx Quickstart Guide | 160330
VGA Source
YUV Source
Analog Analog
Audio Video
Analog Video
Analog Audio
Satellite
Digital Audio
HDMI Display
HDBaseT Projector
wyrestorm.com
Installation
Before Beginning
WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about this product.
Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver
location. See
restrictions. Terminate the cable per the
section.
2. (Optional) If using VGA with Audio, run the wire and terminate per
the Line In Wiring
3. (Optional) If using YUV (component video), run the wire and
terminate per the
section.
4. (Optional) If using Audio for a YUV input, run the wire and terminate
per the Audio In Wiring
5. (Optional) If using RS-232 to control the switcher, run the wire and
terminate per the
6. (Optional) If using an external IR Receiver to control the switcher,
run the wire and terminate per the
Installation
7. Connect an HDMI source to an HDMI In on the switcher using an
HDMI cable from a high quality brand such as
HDMI to
Display
Repeat for other HDMI sources.
8. (Optional) Connect the VGA Out from a VGA source to a VGA In
Blu-ray
on the switcher. Connect the audio out for the VGA source to the
shared Line In using the cable created in
Camera
other VGA sources.
Laptop
9. (Optional) Connect the Component Video Out from a Component
Video source to a YUV In on the switcher using the cable created
in Pre Wire
source to the shared Audio In using the cable created in
step 4. Repeat for other VGA sources.
10. Connect an HDMI Out to an HDMI input on a display device. Repeat
using the other HDMI out for additional display devices.
11. Using the cable created in
RJ-45 female plug to the HDBT Out jack on the matrix. Repeat for
additional HDBaseT receivers.
12. (Optional) Connect the Digital Coax Output to a digital coax input
on the display device or amplifier. Repeat for a second display
device if present.
13. (Optional) If using RS-232 to control the switcher, connect the DB9
connector to the RS-232 In port on the switcher and the opposite
end to a port on the control system using the cable created in
Wire step 5.
14. Connect the LAN connection to a Local Area Network (LAN) router
or switch.
1 of 4
Quickstart Guide
Supported Video Resolutions
section.
YUV/CVBS (Component/Composite Video) Wiring
section.
RS-232 Wiring section.
IR Wiring
step 3. Connect the audio out for the Component Video
Pre Wire step 1, connect the 8-pin
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
In the Box list.
for resolution distance
HDMI/HDBaseT Wiring
section.
WyreStorm Express.
Pre Wire step 2. Repeat for
Pre Wire
Pre
