Summary of Contents for Kogan KATFWASH10A

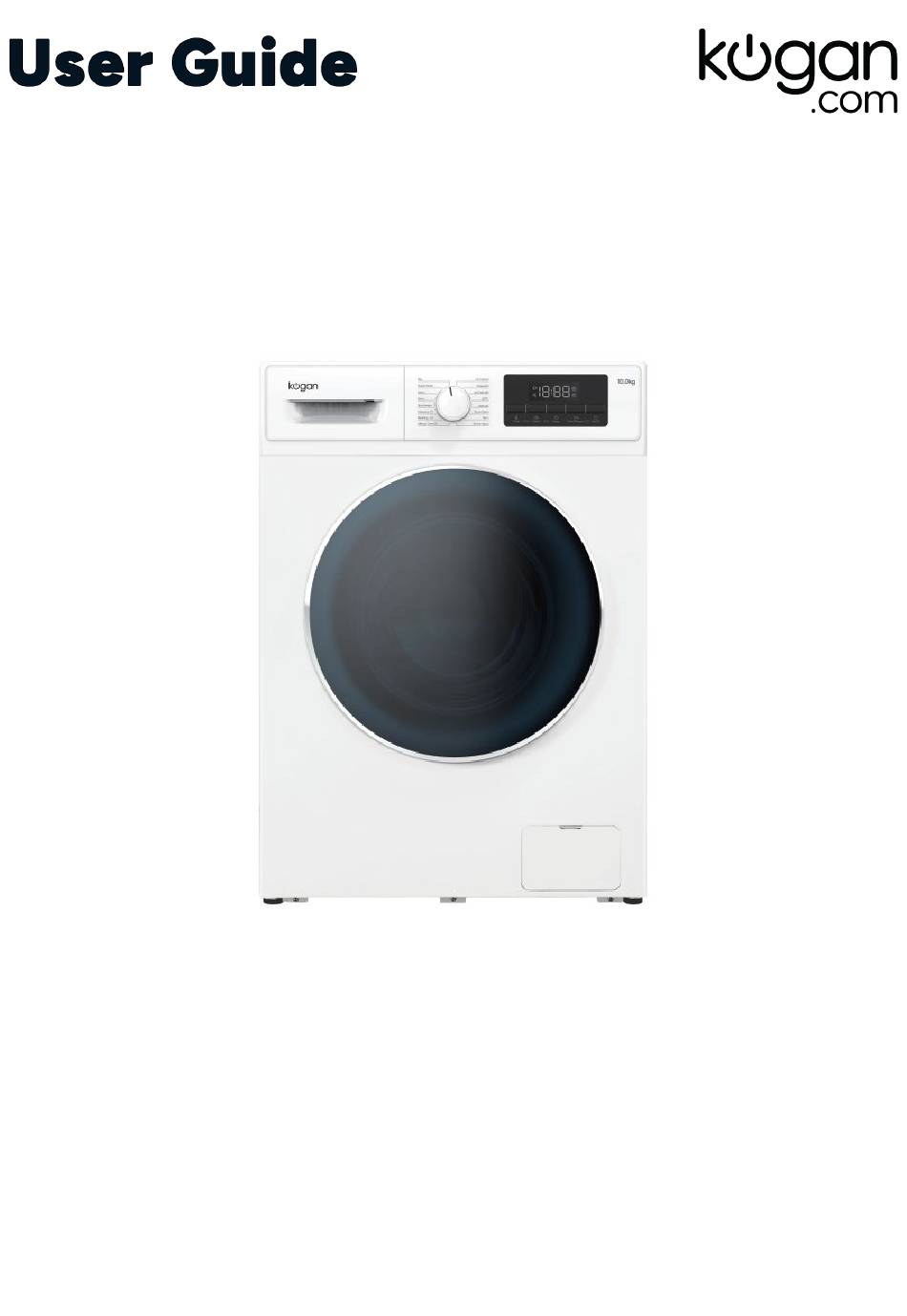

- Page 1 10kg Front Load BLDC Inverter Washing Machine KATFWASH10A & KATFWASH10B...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Specifications Troubleshooting... -
Page 3: Safety & Warnings
• Children must be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • When installing this appliance, only use the provided new hose. Old hoses should not be reused. - Page 4 You must clearly understand the work involved and have the necessary skills to carry it out. If you are in doubt, contact help.Kogan.com or a licenced trade professional. • Do not wash down jackets, raincoats, fishing coats and similar clothes in this appliance.
- Page 5 This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. GROUNDED • This appliance features a cord with an equipment-grounding conductor and a grounding plug.
- Page 6 Warning WARNING: Never place animals or pets inside the washing machine. Doing so can result in severe injury or death. • Avoid leaving metal objects (e.g., safety pins, hairpins) or bleach in the drum for extended periods, as this may cause rusting. If rust appears on the drum surface, clean it with a neutral cleansing agent and a sponge.
- Page 7 • If the appliance becomes flooded, stop operation immediately, disconnect the power, and contact help.Kogan.com for support. Similarly, if the appliance emits a strange noise, burning smell, or smoke, cease operation, disconnect the power, and contact help.Kogan.com. Failure to act promptly may result in electric shock or fire.
-
Page 8: Overview
Overview Detergent Dispenser Control Panel Door Drain Pump Filter Adjustable Feet Inlet Valve (Cold) Power Cord Drain Hose Clips Drain Hose Transit Bolts (x4) (to be removed) Rear Cover Power Plug... -
Page 9: Control Panel
Control Panel Note: The below illustration is for reference only. Refer to the actual product. Cycle Selector Turn the dial to select a cycle. The display shows current cycle information and estimated time Display remaining or an error code when a problem occurs. •... -
Page 10: Installation
Ensure all components and accessories are included before disposing of the packaging. • If the washing machine has been damaged during transportation or if any items are missing or damaged, contact help.kogan.com before use. Tools Required The following tools are not provided but may be required during installation: •... - Page 11 Accessory Location The accessories are located between the bottom of the washing machine and the foam plate. Accessories Transportation • Two people are required to carry the washing machine. Each person should hold the machine by the feet, with one person on each side. •...
-
Page 12: Transit Bolts
Placement Avoid placing the Ensure the machine is not Do not install the washing washing machine on an installed on irregular machine on sloping or elevated platform or surfaces, such as concave uneven ground. bracket. or convex ground. Transit Bolts To protect the machine during transportation, 4 transit bolts are inserted in the drum. - Page 13 Level the Washing Machine Ensure the washing machine is placed indoors in a location where the ambient temperature is not lower than 0°C. Foot Structure Factory State Lock nut Support foot covered with • rubber Locking nut close to the bottom of the washing machine.
- Page 14 Step 3: To ensure the machine is properly positioned, use the provided spanner to loosen the locking nut in the direction indicated in the diagram. Adjust the height of the support foot until it is in contact with the ground and the machine is stable and free from shaking. Support foot is close to the ground Step 4: Finally, use the spanner to tighten the locking nut back to the bottom of the...
-
Page 15: Connect The Inlet Hose
Connect the Inlet Hose Attach one end of the inlet hose to the cold water tap and tighten it by turning anticlockwise until secure. Connect the other end of the inlet hose to the inlet valve on the rear of the washing machine and tighten it by turning clockwise until firmly secured. -
Page 16: Connect The Drain Hose
Connect the Drain Hose • Position the drain hose at a height of 65-100cm above the floor to ensure proper drainage. Placing it too low may result in poor drainage. • Use the supplied drain hose support bracket to securely loop the drain hose into a wall drain, standpipe, or laundry sink. -
Page 17: Connect The Power
• If the power cord is damaged or frayed, cease use immediately and contact help.Kogan.com for support. WARNING: • This machine must be properly earthed. Proper earthing reduces the risk of electric shock in the event of a short circuit. -
Page 18: Operation
Operation Before First Use • Ensure the washing machine is properly installed before use. • Before washing clothes for the first time, you must run a complete cycle without laundry to remove any residual water from the manufacturer’s test run. •... -
Page 19: Sorting Clothes
Sorting Clothes • Follow these recommendations carefully to prevent damage to your clothing and the washing machine. • Do not exceed the rated capacity of the machine. • Sort laundry by colour and care label instructions. Most garments have a textile care label in the collar or side seam. - Page 20 Program • Mix: For a mixed load of cotton and synthetic fabrics. • Super Quick: For lightly soiled garments (less than 2.0 kg) that need a fast wash. • Wool: A gentle cycle designed to cradle and soak wool items, preventing shrinkage and distortion.
- Page 21 Detergent • Washing efficiency and performance depend on the quality of detergent used. Use only machine-wash-approved detergent. • If using specific detergents (e.g., for synthetic or woollen fabrics), always follow the manufacturer's recommendations. • Do not use dry cleaning agents such as trichloroethylene or similar products. •...
- Page 22 Add Detergent Pull out the detergent drawer. Add detergent for prewash into compartment I. This is only used for prewash programs. Both liquid and powder detergents can be used. Add detergent for the main wash into compartment II. Both liquid and powder detergents can be used. If using fabric softener, add it into compartment applicable).
-
Page 23: Child Lock
Delay You can set the washing machine to complete your wash at a later time by selecting a delay between 3 to 24 hours (in 1-hour increments). The displayed time indicates when the wash cycle will finish. Select a cycle and adjust the settings if necessary. Press ‘Delay’... -
Page 24: Emergency Door Unlock
Reload • To add clothes mid-cycle, press and hold the ‘Start/Pause’ button for 3 seconds. • Once the lock is released, you can add items before resuming the wash cycle. Emergency Door Unlock • This method should only be used in emergencies. •... -
Page 25: Memory Function
Memory Function The machine automatically remembers the last washing cycle and settings. When you turn the machine on again, the previous washing process will be selected by default. Clothes Weight Awareness At the beginning of the wash cycle, the machine estimates the weight of the clothes and automatically dispenses detergent (if there is enough detergent in the compartment). -
Page 26: Cleaning & Care
Cleaning & Care Properly maintaining the washing machine can extend its lifespan. WARNING: Before performing any maintenance, unplug the power cord or disconnect the power supply and turn off the tap. Cleaning the Internal Drum • Any rust left inside the drum by metal objects should be removed immediately using chlorine-free detergents. - Page 27 Cleaning the Inlet Valve Filter If no water or insufficient water flows into the washing machine when the tap is open, the inlet filter may need cleaning. Lower the water pressure: a. Close the tap. b. Select any program except ‘Spin’. c.
-
Page 28: Recovery From Freezing
Recovery from Freezing The washing machine may freeze if the temperature drops below 0°C. Turn off the washing machine and unplug the power cord. Pour warm water over the tap to loosen the water hose. Disconnect the water hose and soak it in warm water. Pour warm water into the drum and leave it for about 10 minutes. -
Page 29: Specifications
Specifications Invertor Motor Series Parameter/Capacity 10.0kg Voltage 220-240V-50Hz Rated Power 1950W Water Pressure 0.05-0.8MPa Outer Dimension 595 x 650 x 850mm (W x D x H) Note: Images and functions may differ to final model and are shown for reference only. -
Page 30: Troubleshooting
Ensure the inlet hose is securely fastened. • Inspect and clean the drain hose. Water leakage. • If necessary, contact help.Kogan.com for support or seek assistance from a qualified trade professional. • Ensure the transit bolts have been removed. •... -
Page 31: Error Codes
• If the issue persists, contact help.kogan.com for support. Electrical motor error. Heater error. Temperature sensor fault. Mismatch between Cease use and contact help.kogan.com for software/hardware on the support. mainboard and frequency inverting plate. Communication failures. Inverter failures. Selected cycle does not... - Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
