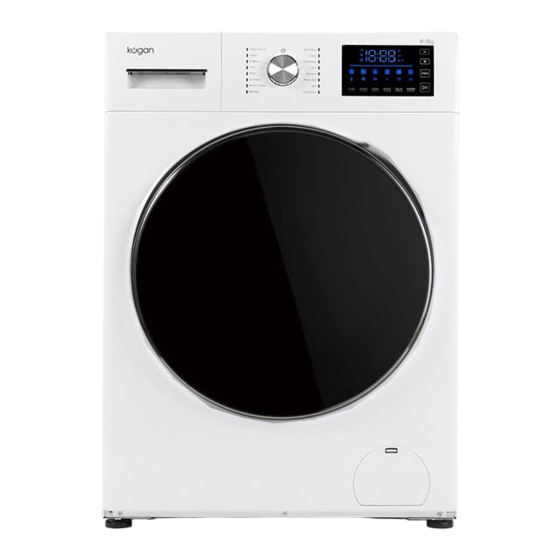

Kogan 9 Series User Manual
7kg front load washing machine
Hide thumbs
Also See for 9 Series:
- User manual (37 pages) ,
- Quick start manual (20 pages) ,
- Manual (16 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Kogan 9 Series
Summary of Contents for Kogan 9 Series
- Page 1 7KG FRONT LOAD WASHING MACHINE SERIES 9 KAWFLWASM7A, KAWFLWASM7B...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Functions Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
Otherwise, an electric shock may occur. • Damaged or loose wires or plugs should not be used, turn off the power, cease use immediately, and contact Kogan.com support. • Do not damage the power cable. Do not damage, alter, forcibly bend, pull, twist, or mishandle the cable. - Page 4 • Please unplug the unit during long periods of inactivity, such as going on holidays. • Contact Kogan.com if the machine requires maintenance or repairs. • If the power cord or supply cord is damaged, the manufacturer or its service agent or similarly qualified person must replace it in order to avoid a hazard.
-
Page 5: Overview
OVERVIEW Water Inlet Valve Control Panel Power Cord Detergent Case Frame Washer Door Wash/Spin Tub Adjustable Leg Additional components: Caps (x4) Water supply hose Spanner User guide... -
Page 6: Installation
INSTALLATION Transportation Two people are needed to carry the washing machine. Carry with one person on each side, holding the washing machine by the feet. The washing machine must be installed on a hard, flat and skidproof surface. Do not lay the washing machine on the soft blanket or wooden floor. - Page 7 Transit Bolts To protect the machine during transportation, there are four bolts inserted into the inner part of the machine. Remove these bolts before use. If the transit bolts are left in place, there will be a strong shock, loud noise and misfunction during the spin process.
- Page 8 Adjust the machine horizontally There will be strong shock, noise and disfunction in operation if the washing machine is not steadily installed. Please adjust the front adjustable Leg. Check whether the washer is on a level surface using a plumb line as shown in the beside figure.
- Page 9 Put your hands on the washer diagonally, press and shake the washer slightly to make sure that the washer is steady. Connecting the Supply Hose Check that sealing washers are firmly seated. Attach the curved end of the hose to the inlet valve of the washing machine, Tighten the coupling nuts securely by hand.
- Page 10 CAUTIONS: • Do not use water which is hotter than 50°C. • If your faucet is not suitable, please consult your dealer. Installing Water Supply Hose to the Washer Turn the nut clockwise till the nut turned tight while holding the hose. Hose Turn the nut counterclockwise after turning the faucet off when you want to detach the water supply hose.
- Page 11 Connection of Drain Hose When washing machine does not work, put drain hose at back of washing machine. (As figure 1 below shows) When washing machine works, put drain hose into drainage pond (as figure 2 below shows), you can also put end of drain hose into sewer and keep space between end of drain hose and sewer elbow to avoid difficult to drain water out of washing machine.
-
Page 12: Operation
OPERATION Attention • It is recommended to run the tub clean program before the first time washing. • Don't forget to close the water tap and take down the power plug to avoid any flood and fire disaster. Lock and Unlock Method Door Lock When the machine is working, the door locks automatically. - Page 13 Introduction to each Compartment of Detergent Box Powder synthetic detergents For the undissolved detergents, for example: powder state soap, dissolve it in advance, then pour into the case. Liquid detergent & bleach Use low bubble liquid synthetic detergents. For the concentrated liquid detergents, diluted it, then pour it into the case.
- Page 14 Selecting Detergent Washing efficiency and performance is determined by used detergent quality. Use only machine wash approved detergent. If you need to use specific detergent, (for example, for synthetic and woollen fabric) always mind detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products. Choose the best detergent Kind of Detergent Programme...
- Page 15 Recommending using: Laundry powder 20°C to 80°C Wool detergent 20°C to 30°C Choose 80°C wash temperature only for special hygienic requirements Control Panel Knob Display Button Start/Stop • Press the button to start the selected promo and press again to stop or pause.
- Page 16 Temperature button • Set the washing temperature according to the clothes type. • The temperature setting range is different among programs. Some of them has range limitation • Press 3 seconds to set child lock function. Spin speed button • Set the spin speed according to user's requirement.
- Page 17 Underwear ≤3kg Wash of underwear Shirts ≤3kg Wash of shirts kids wear ≤4kg Wash of kids wear Rinse + spin ≤6kg For clothes which just needs rinse and spin Spin ≤6kg For clothes which just needs spin Drum To clean drum, no clothes in drum Clean The Cotton Eco program is recommended for a normally soiled cotton load at the rated load capacity.
- Page 18 • When finishing wash, please take the clothes out immediately for airing in order to avoid clothes deformation. • The temperature can't be setting more than 40 degrees to avoid clothes broken. • Using the wool detergent can improve the washing performance. •...
-
Page 19: Functions
FUNCTIONS Add-Up Function Used this function to add washing while machine is running. Method Press "Start/Stop" button till the clock light off. Door lock is released. Please add washing and close the door, press the "Start/stop" button to continue to wash. •... -
Page 20: Cleaning & Care
CLEANING & CARE • Maintain the machine after long time using. It can enlarge the lifetime. • Turn off the power supply during maintenance. Machine Body • Use soft cloth to clean the body after washing every time. If it is very dirty, we recommend adding some detergent or soapy water on a cloth to clean the body. - Page 21 Drum clean (one-time monthly suggestion) The drum may be dirty after long time use. The drum clean function can clean the inner and external drum. (Note: Don't put in clothes and detergent when using drum clean function.) Machine frozen Using hot towel to envelop the water tap and connector. Water tap Connect side Inlet pipe...
- Page 22 Put 2-3L50-degree hot water into tub. Put 2-3L 50°C hot water into tub. Assemble the inlet pipe again, open the water tap and start the machine. At last, please examine whether the inlet pipe and drainpipe can work normally. Clean Filter of Pump (One-time monthly suggestion) Press the groove of pump.
-
Page 23: Troubleshooting
TROUBLESHOOTING Condition Reason • Water temperature is too high or power cut. • Door can't be Setting child lock function. opened • The clothes are clamped between door and gasket. • Because using rubber components, it has rubber smell at Peculiar smell the beginning. - Page 24 • When power cut off, the machine will not revolve. If recover Failure to work after the power, machine still not revolve, please press "power power failure turn on/off'' then reset program. • When the power failure for a long time and you want to take out the clothes, unplug the power cord, waiting for the Emergency open inner drum stop, pull down the emergency rope on the...
- Page 25 Close the door, until the "locked" light on, Door not confirm it then press closed "Start/Pause“ to resume operation. Press "Start/Pause" to resume operation. Other code Alarm If still can't solve the problem, contact Kogan support.
-
Page 26: Notes
NOTES... - Page 27 NOTES...
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
