Kogan 9 Series User Manual

9kg front load inverter washing machine
Hide thumbs Also See for 9 Series:

Advertisement

Table of Contents

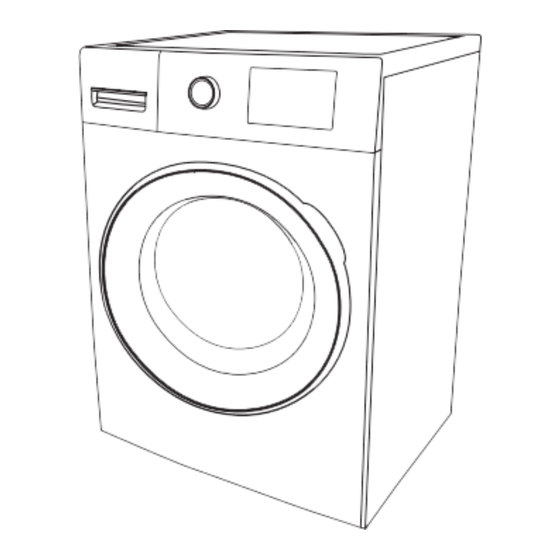

9KG SERIES 9 FRONT LOAD
INVERTER WASHING MACHINE
KAWFLWASM9A

Advertisement

Table of Contents
loading

Related Manuals for Kogan 9 Series

Summary of Contents for Kogan 9 Series

  • Page 1 9KG SERIES 9 FRONT LOAD INVERTER WASHING MACHINE KAWFLWASM9A...

  • Page 3: Safety And Warnings

    Damaged or loosened cables or plugs should not be used to avoid the risk of electric shock, short circuit, or fire. • If the supply cord is damaged, it must be replaced by Kogan.com or its service agent to avoid a hazard. •...
  • Page 4 • Keep all packing materials (plastic bags, foam etc) away from children. • Do not pull the cable from the socket when unplugging the unit. Always grasp the plug firmly to remove the cable from the power socket. • Do not wash, rinse, or spin waterproof fabrics or cloth, sleeping bags, raincoats, or skiing clothes.
  • Page 5 OVERVIEW Note: It is recommended to run the drum clean program before washing clothes in the machine for the first time. Control panel Water inlet valve Power cord Detergent drawer Frame Washer door Wash/spin drum Adjustable feet...

  • Page 6: Installation

    INSTALLATION Transportation Two people are needed to carry the machine. Do not attempt to lift the appliance alone. Locating the washer The washing machine must be installed on stable ground which is hard, flat, and skidproof. Do not place the washing machine on soft blankets or wooden flooring. Do not install the washer on: Sloping ground Platforms or brackets...
  • Page 7 Remove the transit bolts To protect the machine in transportation, there are 4 bolts inserted into the inner part of the machine to keep the drum in place. These bolts must be removed before use, or damage to the internal components of the machine or surrounding environment may occur. Unscrew each of the four bolts with a spanner.
  • Page 8 Adjust the machine horizontally There may be strong vibrations, noise and disfunction if the washing machine is not steadily installed before operation. To ensure the appliance is correctly levelled: Check whether the washer is on a level surface using a plumb line as shown in the image below.
  • Page 9 Place both hands on top of the washer diagonally, then press down and shake the washer slightly to make sure that the washer is steady. Connecting the water supply hose to the tap Check that the sealing washer is firmly seated. Attach the curved end of the hose to the inlet valve of the washing machine.
  • Page 10 Connecting the water supply hose to the washer Turn the nut clockwise while holding the hose until the nut is tight. When the hose requires detaching, turn the nut counter-clockwise after turning the tap off. Hose Connecting the drain hose Drain hose Drain hose...

  • Page 11: Operation

    OPERATION Detergent drawer Powder synthetic detergents For undissolved detergents, e.g. power state soap, dissolve in water in advance before pouring into the drawer. Liquid detergent and bleach Use low bubble liquid synthetic detergents. Dilute concentrated liquid detergents twice with water before pouring into the drawer.
  • Page 12 Control Panel Knob Display Button Start/Pause: • Press the button to start a program and press again to pause. Power knob: • Turns off the power. When programs finish, the machine will power off automatically. Display window introduction: • When powering on, it will display the spin speed and other program details. •...
  • Page 13 Speed button: • Set the spin speed according to the user’s requirement. • The speed setting range is different between programs, and some will have a temperature range limitation. Delay button: • Allows the user to set the finishing time of the set program. Oxygen Fresh button: •...
  • Page 14 Time wash button: • Allows the user to adjust the set washing time.
  • Page 15 Wash programs Cotton Eco Recommended for a normally soiled cotton load at rated capacity Cotton Wash cotton clothes only Mix Wash Mixed wash of cotton and synthetics clothes Jeans Wash jeans and heavy denim clothing Wool Wash wool clothes that are machine washable Synthetic Wash clothing with synthetic fibres Winter clothes...
  • Page 16 Wool • Always check any care instructions that may be on the clothes before washing. • When the wash is completed, remove the clothes for airing immediately to avoid deformation. • The temperature cannot be set higher than 40 degrees to avoid damage to clothing.
  • Page 17 Use this function to add washing to the machine after a program has commenced. Press the “Start/Pause” button until the time disappears. The door lock will release, and the display will show “Add”. Add washing as required then close the door and press the “Start/Pause”...
  • Page 18 Child Protection If the door is opened repeatedly when a program is running, the child protection function will engage automatically. The first time the door is opened, the motor will still be running for a short time. The door will be unlocked for a shot time when operation is resumed; if the door is opened during this time, the machine will shut off automatically.

  • Page 19: Cleaning And Care

    CLEANING & CARE Ensure to maintain the machine after long term use to maximise the lifetime of the product. Always disconnect the power before cleaning or maintaining the appliance. Machine body • Use a soft cloth to clean the body after each wash. If it is heavily soiled, put some mild detergent or soapy water on the cloth to clean the body.
  • Page 20 Drum clean (recommended to be performed once a month) There may be dirt left in the drum after an extended period of use. Run the drum clean program to clean the inner and external drum when this occurs. Do not add clothes or detergent when using the drum clean function.
  • Page 21 Disassemble the inlet pipe and place it into hot (50˚ C ) water. 50˚ C Put 2-3 litres of hot (50˚ C ) water into the machine. 50˚ C Assemble the inlet pipe again, open the water tap and start the machine. Once this has been done.
  • Page 22 Pump filter (recommended to be performed once a month) The groove of pump cover Insert coin into the groove of the pump and press it. The cover of the filter can be opened. (Attention: If there is hot water in the machine, please wait for cooling and then open the filter.) Take out the filter anticlockwise.

  • Page 23: Specifications

    SPECIFICATIONS Rated wash capacity 9.0kg Rated spin capacity 9.0kg Rated dry capacity Rated dry power Max current Rated voltage 230-240V-50Hz Rated power 2000W Energy efficiency 4 Stars Water efficiency 4 Stars Water consumption per wash Annual energy consumption 316kWh Washing performance Water pressure 0.03-1.0MPa Product dimension...

  • Page 24: Troubleshooting

    TROUBLESHOOTING Issue Probable Cause • Water temperature/water level is too high, or power has been cut. Door can't be opened • Child lock function has been enabled • Clothes are jammed between door and gasket. • The rubber components of the machine may emit an Peculiar smell odour for the first few washes.
  • Page 25 Start/pause. the wash. • Avoid placing rolled up blankets into the machine. Close the door properly and then Door not closed press Start/ Pause to restart. Press the Start/Pause button Other code Alarm to restart. Contact Kogan.com if issues persist.
  • Page 26 IN THE BOX User Guide Water supply hose Hole plugs (x4) Spanner...
  • Page 27 NOTES...
  • Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
