Rooftop air conditioner (r32)
Table of Contents

Advertisement

Quick Links

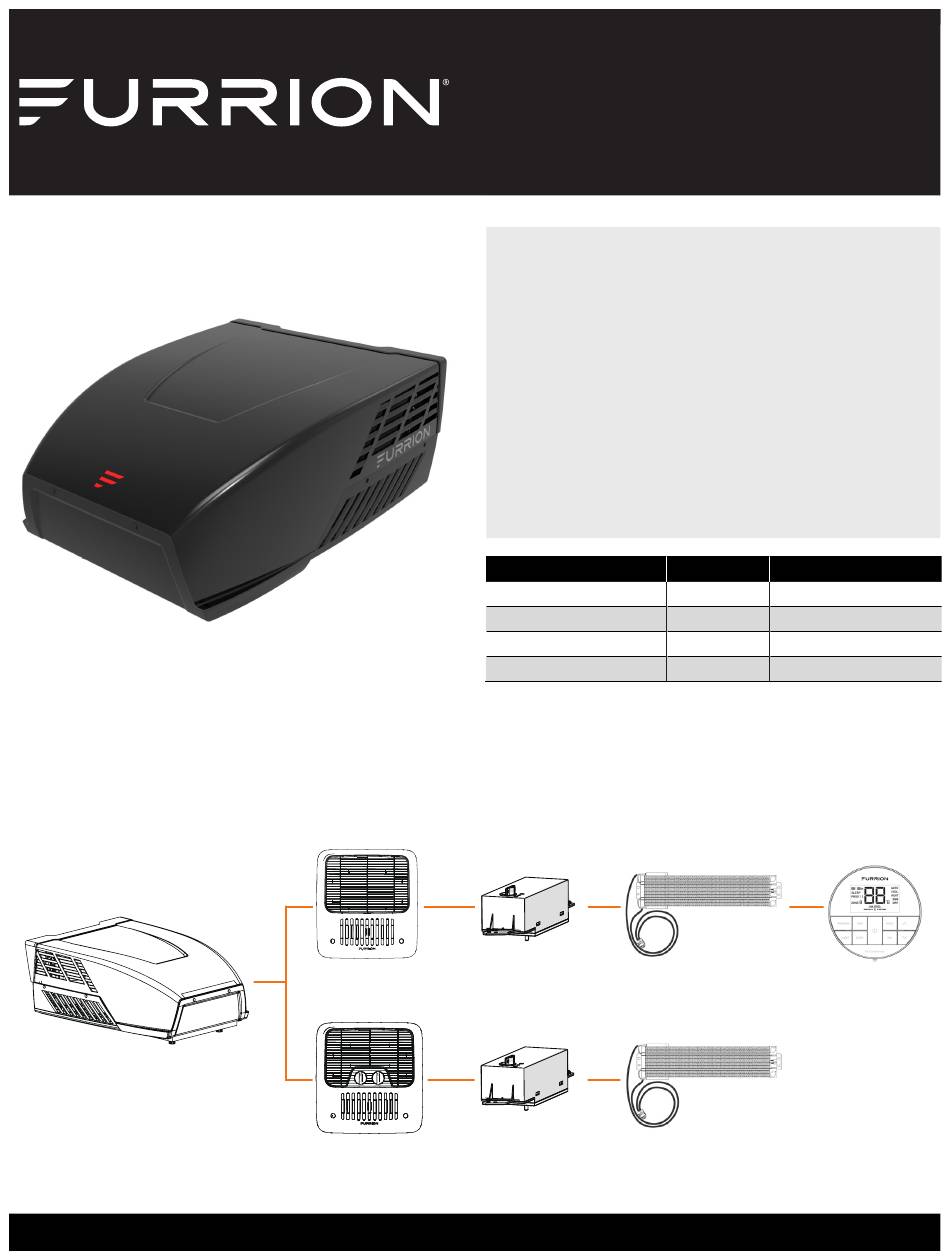

System Options

Choose a Path (Electronic Control or Manual Control):
Air Conditioner
lippert.com
432-LIPPERT (432-547-7378)
Electronic Control ADB
(Required)
Electronic Controller
(Sold Separately)
Manual Controller
Manual Control ADB
(Sold Separately)
(Required)
(Sold Separately)
1
Chill
Rooftop Air
Conditioner (R32)
Installation and Owner's Manual
(For Aftermarket Applications)
Chill
Air Conditioner
(R32)
Installation and
Owner's Manual
(For Aftermarket Applications)
Model #
Model #
FACR13HESA2-PS-AM 2024042635
FACR13HESA2-BL-AM
FACR15HESA2-PS-AM
FACR15HESA2-BL-AM
(Required)
(Sold Separately)
(Sold Separately)
(Required)
(Sold Separately)
CCD-0009378
Rooftop
Lippert PN
Lippert PN
Description
Description
13K Chill A/C (White)
2024042636
13K Chill A/C (Black)
2024042637
15K Chill A/C (White)
2024042639
15K Chill A/C (Black)
Thermostat
Heat Strip
(Required)
(Optional)
(Sold Separately)
Heat Strip
(Optional)
Rev: 11.22.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chill FACR13HESA2-PS-AM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Furrion Chill FACR13HESA2-PS-AM

  • Page 1: System Options

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Chill Rooftop ™ Air Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Model # Model # Lippert PN Lippert PN Description Description FACR13HESA2-PS-AM 2024042635 13K Chill A/C (White) FACR13HESA2-BL-AM 2024042636 13K Chill A/C (Black)
  • Page 2: Table Of Contents

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Table of Contents Installing the Air Distribution Box (ADB) System Options ........... Check for Proper Alignment (Electronic Control ADB and Introduction .
  • Page 3: Introduction

    Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Introduction The Furrion Chill Air Conditioner system is a modular Air INDICATES A POTENTIALLY HAZARDOUS Conditioning system comprised of an Air Conditioner, SITUATION WHICH, IF NOT AVOIDED, MAY RESULT Air Distribution Box (ADB), Controller, and other optional...
  • Page 4: Handling The Device

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Handling the Device • RISK OF FIRE: FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE • INSTALLATION AND REPAIR OF THE ROOFTOP PERSONNEL. DO NOT PUNCTURE REFRIGERANT AIR CONDITIONER MUST ONLY BE CARRIED OUT TUBING.
  • Page 5: R32 Refrigerant Warning

    • This air conditioner works with only a certain set of ADBs and controls, which are approved with use of flammable Based on user preference and available options, several refrigerants. Contact Furrion for further details before additional components may be required to complete purchase or use.
  • Page 6: Controller: Required For All Installs

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Multi Zone Thermostat: Required for Electronic 1. All Air Conditioners require an Air Distribution Box (ADB) that is sold separately from the A/C itself. Control ADBs ONLY 2.
  • Page 7: Prior To Installation

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Prior to Installation 18” Choosing Proper Location for the Air Conditioner Roof opening Center line of rooftop NOTE: The roof must be designed to support the weight of the rooftop unit and the weight of 2 installers standing on FRONT the roof.
  • Page 8: Roof Preparation

    The installation of air conditioner suits for roof thickness from 3 ” (90mm) to 6” (152mm). For other thickness, please contact Furrion or Furrion authorized service agent. Installing in an Existing Roof Opening 1. Unscrew and remove the roof vent.
  • Page 9: Air Duct Sizing And Design (For Multi Zone Installations)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) 3. The opening created must be framed to provide The installer of this system must design the air ducting adequate support and prevent air from being drawn from system for their particular application.
  • Page 10: Air Distribution System Installation

    ELECTRICAL SHOCK HAZARD MUST be approved by Furrion in writing. • DISCONNECT POWER BEFORE SERVICING. FAILURE • Duct size TO OBEY THIS WARNING COULD RESULT IN DEATH OR SERIOUS INJURY.
  • Page 11: 12Vdc Supply (Electronic Control Adb Only)

    (roof opening) and wall controller/thermostat (wall opening). exposed while charging, recovering or purging the system; NOTE: 18AWG max should be used, Furrion recommends using a standard thermostat wire with at least 4-wires. • That there is continuity of earth bonding.
  • Page 12: Installing The Air Conditioner

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Installing the Air Conditioner Installing the Air Distribution Box (ADB) NOTE: For the following section of this manual, pay • THE ROOFTOP UNIT WEIGHS APPROXIMATELY 100 attention to section headings, and remember which ADB POUNDS (45 KG).
  • Page 13: Pulling Wires (Electronic Control Adb)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Pulling Wires (Electronic Control ADB) Affixing the ADB to the Rooftop Unit (Electronic Control ADB and Manual Control ADB) 1. Reach up into the return air opening and pull down the rooftop unit electric cord.
  • Page 14: Making The 115Vac Wiring Connection (Electronic Control Adb And Manual Control Adb)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) 3. Make sure the duct divider is compressing the top foam Making the 115VAC Wiring Connection (Electronic on the base of the air conditioner unit, and compress tightly Control ADB and Manual Control ADB) to to ensure a positive retention ELECTRICAL SHOCK HAZARD...
  • Page 15: Wiring Additional Modular Components To The System (Electronic Control Adb Only)

    1. Familiarize yourself with the ceiling controller and wire harnesses. NOTE: When connecting to a Furrion wall controller/ thermostat, the analog harness bundle is not used and can be tucked away. The ends do not need to be capped or Furnace cables taped.
  • Page 16: Multi Zone Wiring Connection (Electronic Control Adb Only)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) 1. Locate the DIP Switches. The DIP switches are located ZONE on the PCB board of the control box. Each time you want DIP 1 DIP 2 Setting to set the DIP, you should open the control box and find the ZONE1...
  • Page 17: Connecting The System Wires (Manual Control Adb Only)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Analog Connection (Electronic Control ADB Final Installation (Electronic Control ADB and ONLY) Manual Control ADB) The analog connection is only intended for use with NOTE: In the following illustrations, an Electronic Control OneControl provided by Lippert Control Systems.
  • Page 18: Installing The Wall Thermostat (Electronic Control Adb Only)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) 4. Tuck/secure LED cable (white strip, tagged with “LED”) 7. Install the screw caps to cover the screw holes out of the way. This wire is reserved for lighting options. LED cable 5.
  • Page 19: Operation (Electronic Control Adbs)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Operation (Electronic Control Non-Ducted System ADBs) 1. Open shutter to release air. Thermostat Use Ducted Systems 2. For instructions covering the Operation of the Air Normal Ducted Use: Conditioning system via the thermostat please refer to the separate instruction manual included with the thermostat.
  • Page 20: Operation (Manual Control Adbs)

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Operation (Manual Control Set the Temperature Set the temperature to your comfort level by rotating the ADBs) temperature control knob. The fan will run continuously to circulate the air and maintain an even temperature. The Manual Control ADB is designed with 2 control knobs which allow you to set the temperature set-point and NOTE: The temperature setting mode is only available...
  • Page 21: Defrosting & Anti-Freezing Instructions

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Defrosting & Anti-Freezing Instructions DURING THE DEFROSTING OR ANTI-FREEZING PROCESS, THE FROST OR ICE WILL BE MELTED FIRE/ELECTRIC SHOCK HAZARD INTO WATER AND MIGHT DROP DOWN FROM THE DO NOT USE MEANS TO ACCELERATE THE TRIM KIT TO THE FLOOR OR FURNITURES.
  • Page 22: Troubleshooting

    The set temperature is too Select a lower temperature high The evaporator fan is Contact an authorized service agent or Furrion (see the detail damaged contact info at the back page of this manual) Not cooling well The condenser fan is Contact an authorized service agent or Furrion (see the detail damaged.
  • Page 23: Specifications

    Chill Rooftop Air ™ Conditioner (R32) Installation and Owner’s Manual (For Aftermarket Applications) Specifications FACR13HESA2-** FACR15HESA2-** Cooling Capacity (Btu/h) 13,500 15,500 Dehumidification (pint/h) 2.43 Refrigerant Charge (Oz) 10.93 13.76 Roof top Unit Dimensions (W x H x D) (inch) 29 5/8" x 13 5/8" x 32 7/8” 29 5/8”...
  • Page 24: Multi Zone Wiring Diagram (Electronic Control Adb Only)

    115VAC Input Front Unit The contents of this manual are proprietary and copyright protected Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert by Lippert. Lippert prohibits the copying or dissemination of portions Components, Inc. (Lippert) of this manual unless prior written consent from an authorized Lippert Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514...
