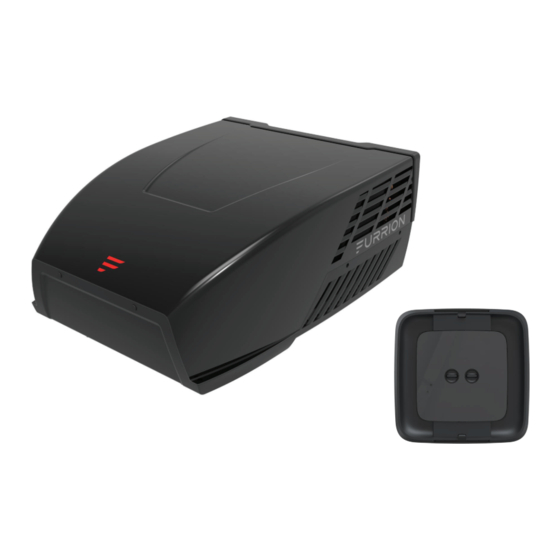

- Page 1 User Manual of Product 1: Furrion Chill 15,500 BTU (White) RV Rooftop AC - FACR15SA-PS-AM...
- Page 2 Rooftop Air Conditioner Model: FACR13SA-PS/FACR13SA-BL Instruction Manual FACR14SA-PS/FACR14SA-BL FACR15SA-PS/FACR15SA-BL FACT11MA-PS/FACT11MA-BL (Sold Separately)
-
Page 3: Table Of Contents
Thank you for purchasing this Furrion® Chill Rooftop Air Conditioner.. Before operating your new product, please read these instructions carefully. This will ensure safe use and reduce the risk of injury. This instruction manual contains information for installation, operation, maintenance of the product and safe use. -
Page 4: Important Safety Instructions
− Electric shock Fire hazards − Injury − ● All Furrion product referenced in this manual is to be installed in accordance with local and national codes, including the latest editions of the following standards: USA: NFPA 1192 −... -
Page 5: Handling Electrical Cables
Handling Electrical CAUTION Cables ● The rooftop air conditioner must be installed securely so that it cannot WARNING fall down. ● Only operate the rooftop air The electrical power supply must only conditioner if you are certain that be connected by a qualified electrician. the housing and the cables are not damaged. -
Page 6: Before Installing
Before Installing ● Air Distribution Box (ADB) Shroud x 1 Read this installation manual completely ● Filter x 2 before installing the rooftop air ● Decoration Plate x 1 conditioner. ● PE Foam x 1 The following tips and instructions must ●... - Page 7 ● Check the inside of the RV for New Opening return air kit obstructions. (i.e. door When no roof vent is available or another openings, room dividers, curtains, location is desired, the following is ceiling fixtures, etc.) Allow 6” recommended: (152mm) space from the opening to ●...
-
Page 8: Roof Preparation
NFPA Standard 501C Section 2.7.2. 6” (152mm). For other thickness, please 1. Mark a 141/4” x 141/4” (+1/2”) square on contact Furrion or Furrion authorized service agent. the roof and carefully cut an opening. Installing in an Existing Opening 1. -
Page 9: Air Distribution Duct Sizing And Design
Otherwise damage to product and/or Roof Cavity 3”-6” (75mm-152mm) RV could occur. Always observe the Depth following guidelines while structuring Duct Cross 21 Sq. In. Min. Sectional Area the opening. 11/2” Min. - 21/2” Max. (38mm Depth Min. - 63.5mm Max.) 7”... -
Page 10: Air Distribution System Installation
SIDE VIEW these alternate configurations and (TOWARD BACK OF RV) methods MUST be approved by Furrion in writing. Roof ● Duct size ● Duct layout Roof Opening ●... -
Page 11: Laying The Connecting Cables
Laying the Connecting 1. Refer to the applicable electric code guidelines for sizing the appropriate Cables wire gauge, length and type. 2. Route a 115VAC supply wire with The rooftop air conditioner must be ground wire from the time delay fuse connected to an electric circuit which is or circuit breaker box to the roof able to supply the required power supply... -
Page 12: Installation
Installation Installing the Rooftop Unit Installing the Air Distribution Box CAUTION (for FACT11MA-PS/ FACT11MA-PS models ● The rooftop unit weighs approximately 100 pounds (45 only, same for both kg). To prevent back injury, use a ducted and non-ducted mechanical hoist when lifting or models, sold separately) moving the unit. - Page 13 3. Remove the control box off the mounting frame by unscrewing the two screws on the supporters of the control box. (Fig. 4) Mounting Hole Fig. 6 6. Pull to remove the film off the double sided sticky tape on the inner side of the lower duct divider.
- Page 14 8. Peel to remove the release paper from NOTE: Always follow the color code the PE foam, overlap the sticky side while connecting the cables. over all gaps and compress to seal Black - Hot and insulate the entire section. (Fig. 9) White - Neutral Green/yellow - Ground PE Foam...
- Page 15 13. Install the Air Distribution Box (ADB) 16. Install the two control knobs through shroud over the mounting frame and holes on the decoration plate and fix with 4 self-tapping screws. push to lock into place. (Fig. 17) NOTE: Make sure the “THIS WAY FRONT”...
-
Page 16: Operation
Operation FAN MODE Your new rooftop air conditioner is designed with 2 control knobs which Rotate the operating mode control knob allow you to set the temperature set- to the FAN position. point and change the operating mode of the air conditioner. Set the Temperature Change the Operating Set the temperature to your comfort level... - Page 17 low Fan speed; 3. The air outlet of the air conditioner is obstructed, for example, the shutter of the cool air outlet or the ducts vents are closed, or the filters are obstructed; 4. The ambient temperature is relatively low, e.g.
-
Page 18: Cleaning And Maintenance
Remove the decoration plate from the Replacement return air filters can be air conditioning system by pushing ordered directly from Furrion. the side tabs to release. (Fig. 19) Fig. 19... -
Page 19: Troubleshooting
Set the rooftop air conditioner to cooling. not set to cooling. The set temperature is too Select a lower temperature. high. Contact an authorized service agent or Furrion The evaporator fan is (see the detail contact info at the back page of damaged. this manual). -
Page 20: Specifications
Specifications Specification PERFORMANCE FACR13SA-PS FACR14SA-PS FACR15SA-PS Model Number FACR13SA-BL FACR14SA-BL FACR15SA-BL Cooling Capacity (Btu/h) 13,500 14,500 15,500 Dehumidification (pint/h) Applicable vehicle length (feet) Refrigerant R410A R410A R410A Charge (Oz) 15.9 19.8 23.1 Roof top Unit Dimensions (L x W x 347/8 x 275/8 x 135/8 347/8 x 275/8 x 135/8 347/8 x 275/8 x 135/8... -
Page 21: Wiring Diagram
Wiring Diagram DANGER Electrical Shock Hazard ● Disconnect power before servicing. Failure to obey this warning could result in death or serious injury. ● Provide grounding in compliance with all applicable electrical codes. Failure to obey this warning could result in death or serious injury. COMPRESSOR GRN/YEL INDOOR... - Page 22 ● Email: support@furrion.com ©2007-2020 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for ® use by Furrion Ltd. and registered in the U.S. and other countries. CN ZL201830175933.3 and other patents pending (FACR13SA-PS, FACR13SA-BL, FACR14SA-PS, FACR14SA-BL, FACR15SA-PS, FACR15SA-BL) www.furrion.com...
