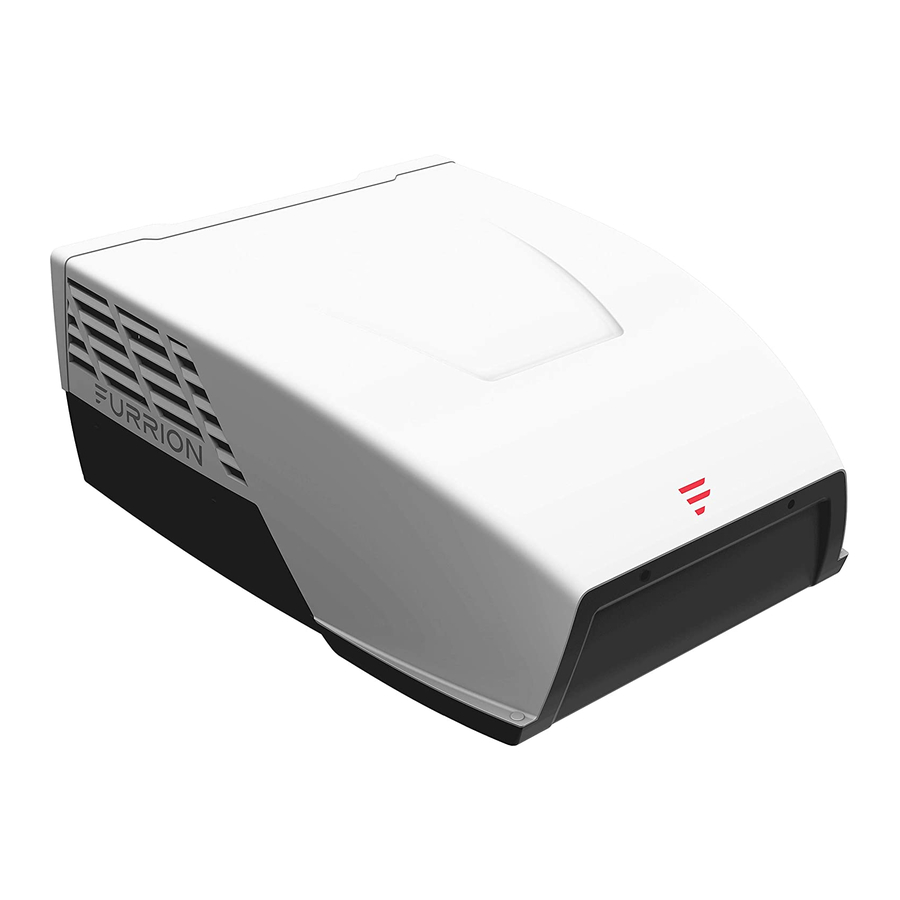

Rooftop Air Conditioner
Instruction Manual
FACR13SA-PS/FACR13SA-BL
FACR14SA-PS/FACR14SA-BL
FACR15SA-PS/FACR15SA-BL
FACT12LA-PS/FACT12LA-BL
FACT12SA-PS/FACT12SA-BL
(Sold Separately)
TM
Model:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FACR13SA-PS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Furrion FACR13SA-PS

  • Page 1 Rooftop Air Conditioner Model: FACR13SA-PS/FACR13SA-BL Instruction Manual FACR14SA-PS/FACR14SA-BL FACR15SA-PS/FACR15SA-BL FACT12LA-PS/FACT12LA-BL FACT12SA-PS/FACT12SA-BL (Sold Separately)
  • Page 2: Table Of Contents

    Thank you for purchasing this Furrion® Chill Rooftop Air Conditioner. Before operating your new product, please read these instructions carefully. This will ensure safe use and reduce the risk of injury. This instruction manual contains information for installation, operation, maintenance of the product and safe use.
  • Page 3: Important Safety Instructions

    − Electric shock Fire hazards − Injury − ● All Furrion product referenced in this manual is to be installed in accordance with local and national codes, including the latest editions of the following standards: USA: NFPA 1192 −...
  • Page 4: Handling Electrical Cables

    Handling Electrical CAUTION Cables ● The rooftop air conditioner must be installed securely so that it cannot WARNING fall down. ● Only operate the rooftop air The electrical power supply must only conditioner if you are certain that be connected by a qualified electrician. the housing and the cables are not damaged.
  • Page 5: Before Installing

    Before Installing ● Filter x 2 Read this installation manual completely ● Decoration Plate x 1 before installing the rooftop air ● Self-tapping Screws x 6 conditioner. ● PE foam x 1 The following tips and instructions must ● Instruction Manual x 1 be observed while installing the rooftop air conditioner.
  • Page 6 It is preferred that the air conditioner be ● Check the inside of the RV for installed on a relatively flat and horizontal return air kit obstructions. (i.e. door roof section measured when the RV is openings, room dividers, curtains, parked on a level surface.
  • Page 7: Roof Preparation

    3” (75mm) to 6” Section 2.7.2. (152mm). For other thickness, please 1. Mark a 141/4” x 141/4” (+1/2”) square on contact Furrion or Furrion authorized the roof and carefully cut an opening. service agent. Installing in an Existing Opening 1.
  • Page 8: Air Distribution Duct Sizing And Design

    2. Using the roof opening as a guide, cut Roof Cavity 3”-6” (75mm-152mm) a matching hole in the ceiling. Depth NOTE: Maintain structural integrity. Duct Cross 21 Sq. In. Min. Sectional Area Otherwise damage to product and/or RV could occur. Always observe the 11/2”...
  • Page 9: Air Distribution System Installation

    SIDE VIEW these alternate configurations and (TOWARD BACK OF RV) methods MUST be approved by Furrion in writing. Roof ● Duct size ● Duct layout Roof Opening ●...
  • Page 10: Laying The Connecting Cables

    Laying the Connecting 1. Refer to the applicable electric code guidelines for sizing the appropriate Cables wire gauge, length and type. 2. Route a 115VAC supply wire with The rooftop air conditioner must be ground wire from the time delay fuse connected to an electric circuit which is or circuit breaker box to the roof able to supply the required power supply...
  • Page 11: Installation

    Installation Installing the Rooftop Unit Installing the Wall Thermostat (model: CAUTION FACW12SA-BL/ FACW12PA-BL/ ● The rooftop unit weighs approximately 100 pounds (45 FACW12ZA-BL, kg). To prevent back injury, use a sold separately) mechanical hoist when lifting or moving the unit. Failure to obey this warning could result in injury.
  • Page 12: Installing The Air Distribution Box

    Installing the Air 3. Install the assembled mounting frame and the lower duct divider into the Distribution Box (for rooftop opening. Make sure the “THIS FACT12LA-PS/FACT12LA- WAY FRONT” mark is facing front (the direction of the vehicle) while BL/FACT12SA-PS/ installing. (Fig. 4) FACT12SA-BL models only, same for both ducted and non-ducted...
  • Page 13 5. Pull to remove the film off the double 8. Use self adhesive foil tape to seal sided sticky tape on the inner side of all remaining gaps around the duct the lower duct divider. (Fig. 6) divider, PE foam and roof opening, completely sealing duct edges as required.
  • Page 14 10. Loosen the strain relief on top of the 13. Lock the freeze sensor onto the pipe control box and let the 115VAC power of the evaporator. Connect the freeze cord pass through. (Fig. 10) sensor cable of the control box to the NOTE: Always follow the color code freeze sensor of the rooftop.
  • Page 15 15. Set up the control box dip switches as 16. Connect the wall thermostat cable indicated in the illustration and table and 12VDC power cable to the control below (Fig. 14): box.(Fig. 15) Wall Ther- 12V DC Power Cable mostat Cable LED Cable Fig.
  • Page 16 19. Install the Air Distribution Box (ADB) 22. Your new rooftop air conditioner has shroud over the mounting frame and now been fully installed in the RV roof. fix with 4 self-tapping screws. (Fig. 21) NOTE: Make sure the “THIS WAY FRONT”...
  • Page 17: Cleaning And Maintenance

    1. Remove the decoration plate from the air conditioning system by pushing Replacement return air filters can be the side tabs to release. (Fig. 22) ordered directly from Furrion. Fig. 22...
  • Page 18: Troubleshooting

    Freeze sensor has tripped. Outer temperature is too low or all air nozzles are closed. Abnormal shutdown Contact an authorized service agent or Furrion Refrigerant leakage (see the detail contact info at the back page of this manual). The rooftop air conditioner is Set the rooftop air conditioner to cooling.
  • Page 19: Specifications

    Specifications Specification PERFORMANCE FACR13SA-PS FACR14SA-PS FACR15SA-PS Model Number FACR13SA-BL FACR14SA-BL FACR15SA-BL Cooling Capacity (Btu/h) 13,500 14,500 15,500 Dehumidification (pint/h) Applicable vehicle length (feet) Refrigerant R410A R410A R410A Charge (Oz) 15.9 19.8 23.1 Roof top Unit Dimensions (L x W x...
  • Page 20: Wiring Diagram

    Wiring Diagram DANGER Electrical Shock Hazard ● Disconnect power before servicing. Failure to obey this warning could result in death or serious injury. ● Provide grounding in compliance with all applicable electrical codes. Failure to obey this warning could result in death or serious injury. COMPRESSOR GRN/YEL INDOOR...
  • Page 21: Multi Zone Wiring Diagram

    Multi Zone Wiring Diagram Air Conditioner 115VAC Input Rear Unit Four Conductor Communication Cable 12VDC Input 2 Furnace 2 Wires Wires Breaker Box Air Conditioner Four Conductor Communication Cable Furrion Thermostat 12VDC Input 2 Wires 115VAC Input Front Unit...
  • Page 22 ● Email: support@furrion.com ©2007-2020 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for ® use by Furrion Ltd. and registered in the U.S. and other countries. CN ZL201830175933.3 and other patents pending (FACR13SA-PS, FACR13SA-BL, FACR14SA-PS, FACR14SA-BL, FACR15SA-PS, FACR15SA-BL, FACT12LA-PS, FACT12SA-PS) www.furrion.com...
  • Page 23 Conversion kit / Installation Instructions Model: C-FACR15SA-A01 What's in the box The Scope of this manual is to support the installation of your new Furrion rooftop unit with your existing Air Distribution Box unit and control using the Furrion universal conversion kit.
