CHILL® CUBE 18K DUCTED RV ROOFTOP
AIR CONDITIONER
For Aftermarket Applications
MODEL (LIPPERT PN)
FACR18VSDA-BL-AM (2024039646)
FACT18VSDA-PS-AM (2024039645)
INSTRUCTION MANUAL
ADB (Required): FACT18VSDA-PS-AM (2024040312)
Single Zone Thermostat Kit (Optional): FACC13VSD-AM-KIT (2024047199)
(Included)
(Sold Separately)
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Furrion CHILL FACR18VSDA-BL-AM
Summary of Contents for Furrion CHILL FACR18VSDA-BL-AM

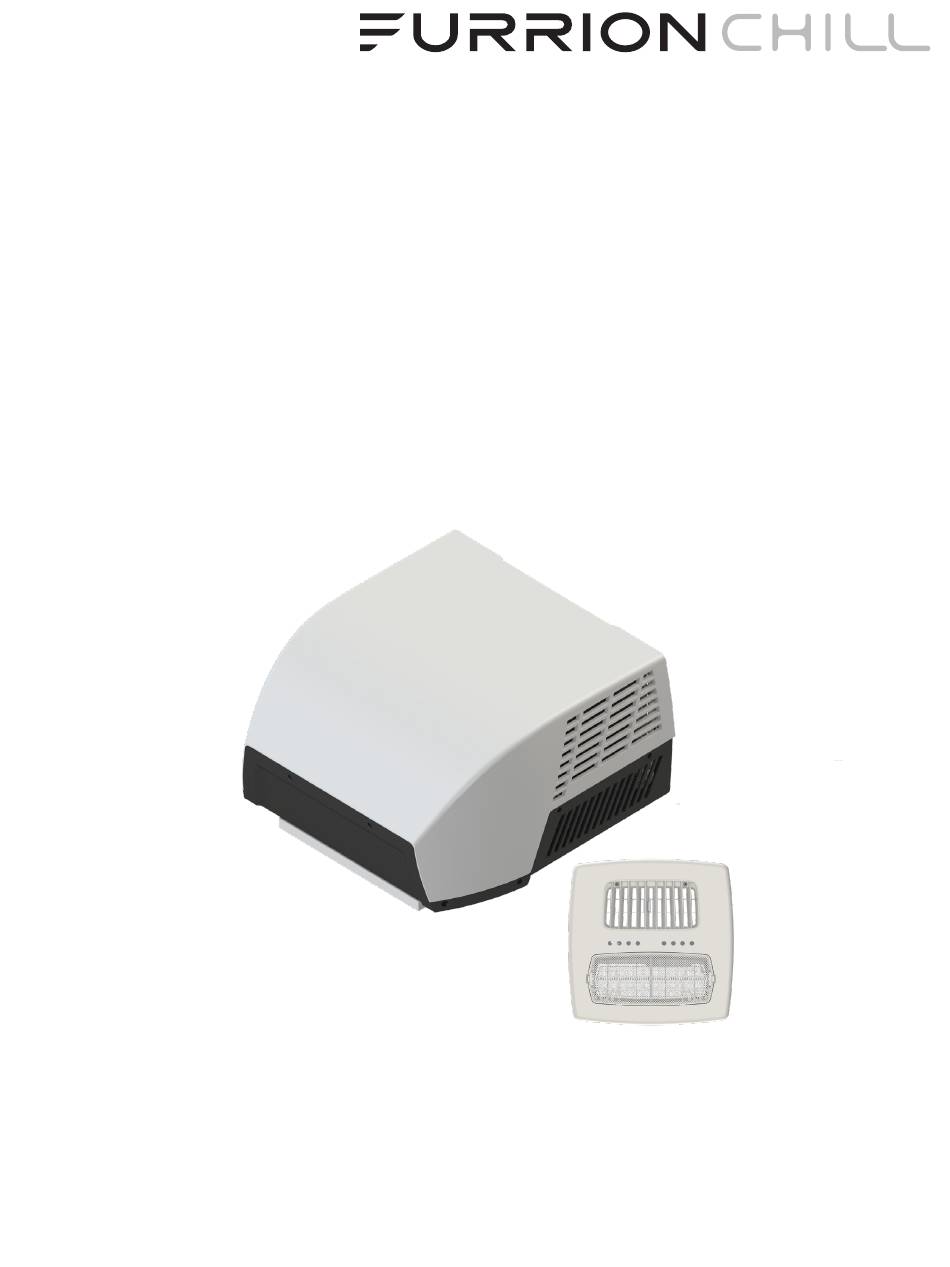

- Page 1 CHILL® CUBE 18K DUCTED RV ROOFTOP AIR CONDITIONER For Aftermarket Applications MODEL (LIPPERT PN) FACR18VSDA-BL-AM (2024039646) FACT18VSDA-PS-AM (2024039645) INSTRUCTION MANUAL ADB (Required): FACT18VSDA-PS-AM (2024040312) (Included) Single Zone Thermostat Kit (Optional): FACC13VSD-AM-KIT (2024047199) (Sold Separately)
-
Page 2: Table Of Contents
Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the appliance. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. -
Page 3: Explanation Of Symbols
• Injury in the event of a fire. Use approved extinguishing agents All Furrion product referenced in this manual is to be installed instead. Do not use water to extinguish fires. in accordance with local and national codes, including the... -
Page 4: Handling Electrical Cables
CAUTION CAUTION • Turn off he air conditioner and disconnect the power if you • Do not use device for any other purpose than its intended are not going to use it for a long time. use. • Turn off and unplug the unit during storms. •... -
Page 5: Before Installing
BEFORE INSTALLING Read this installation manual completely before installing the rooftop air conditioner. The following tips and instructions must be observed while installing the rooftop air conditioner. What’s in the Boxes Open and remove the components from the cartons. Make sure you have all the following items included in the packaging, if any item is missing, contact your dealer. -
Page 6: Roof Preparation
” (90mm) to 6” (152mm). For other thickness, please accordance with NFPA Standard 501C Section 2.7.2. contact Furrion or Furrion authorized service agent. 1. Mark a 14 ” x 14 ”... -
Page 7: Air Distribution Duct Sizing And Design
3. The opening created must be framed to provide adequate 5. Seal all corners and edges with adhesive-backed aluminum support and prevent air from being drawn from the roof tape. cavity. NOTE: Failure to seal corners and edges will result in 4. -
Page 8: Air Distribution System Installation
1. Prepare 4 wires to connect between the ceiling controller Preparing Wire Connections (roof opening) and wall controller/thermostat (wall opening). NOTE: 18AWG max should be used, Furrion recommends Each rooftop air conditioner opening must be prepared using a standard thermostat wire with at least 4-wires. -
Page 9: Installation
INSTALLATION Installing the Rooftop Unit Installing the Air Distribution Box (ADB) CAUTION The rooftop unit is fixed on the RV roof using 4 long bolts • The rooftop unit weighs approximately 85 pounds (39 kg). through the mounting frame from the interior of the RV ceiling. To prevent back injury, use a mechanical hoist when lifting or moving the unit. -
Page 10: Electrical Work
Electrical Work 3. Connect the insulated duct divider to the mounting frame and seal any cracks or gaps with adhesive-backed aluminum tape WARNING BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM. Wire Connection DANGER Electrical Shock Hazard •... -
Page 11: Adb Shroud Installation
ADB Shroud Installation Option B - Make the wire connections using the appropriate wire connector following the below color codes. Black - Hot 1. Reveal the 5 mounting screws inside the Air Distribution Box White - Neutral (ADB) shroud by removing the filter cover. Green/yellow - Ground Refer to NEC (National Electric Code) for proper sizing of wire gauge (awg) and wire connector based on cable length and... - Page 12 5. Place loose wires inside the electrical box, and close the 3. Remove wire mesh filter from the ADB to access the wires in electrical box panel door. Secure the panel door shut using the the return by removing the two screws and snapping the mesh screw provided.
-
Page 13: Operation
OPERATION Operating Panel Diagram NOTE: Different models may have different buttons and indicator lights. Not all the buttons and indicator lights described are available on all units. Please check the operating panel of your unit. The following graphics are for explanatory purposes only. Fan speed GEAR mode SLEEP mode... -
Page 14: Remote Diagram
Remote Diagram Button/ Effect Function Power Button Turns the unit on and off. Toggles between the operational modes of the unit. There are four modes: Auto, Cool, Dry, Heat and MODE button Fan. (Do not select HEAT mode if the unit is cooling- only. -
Page 15: Handling The Remote Control
Handling the Remote Control Using the Remote • The remote control must be used within 26.25 feet (8 meters) of the unit. NOTE: Remote not available for all units. • The unit will beep when remote signal is received. NOTE: Remote requires 2 AAA batteries. Some models come •... -
Page 16: Basic Function Operation
Basic Function Operation Advanced Function Operation Auto Mode Operation GEAR Operation 1. Set the unit to AUTO mode by pressing the MODE button 1. Press the GEAR button. The 75% LED will illuminate. In this until “AUTO” is selected. mode, the unit will operate at 75% max current limit. 2. -
Page 17: Operating The Timer Function
Operating the Timer Function To set the Auto-off time Press the TIMER ON button to set the auto-on time of the unit. 1. Press the TIMER OFF button. The remote control LCD Press the TIMER OFF button to set the auto off time of the unit display will read TIMER OFF, the last Auto-off setting time, and the letter “H”... - Page 18 TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful for turning the unit off automatically at a set time, such as after going to bed. The air conditioner will automatically start operating at the set time. Example: To stop the air conditioner after 10 hours - 1.
-
Page 19: Cleaning And Maintenance
The set temperature is Select a lower temperature. too high. The evaporator fan is Contact an authorized service agent or Furrion (see the detail contact info at the damaged. back page of this manual). Not cooling well The condenser fan is Contact an authorized service agent or Furrion (see the detail contact info at the damaged. -
Page 20: Specifications
SPECIFICATIONS FACR18VSDA-**-AM Nominal Cooling (Btu) 18,000 Refrigerant Charge (Oz) 19.75 Roof top Unit Dimensions (W x H x D) (inch) ” x 14 ” x 29” (735mm x 750mm x 369mm) ELECTRICAL Volts/Frequency 115V~/60Hz/1Ph Power Watts (Cooling) 1460W Amps (Cooling) 15.5A Power Cord Gauge Min. -
Page 21: Notes
NOTES - 21 - CCD-0009327 Rev: 10.29.24... - Page 22 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
