Summary of Contents for SIGLENT SSG6082A-V Series

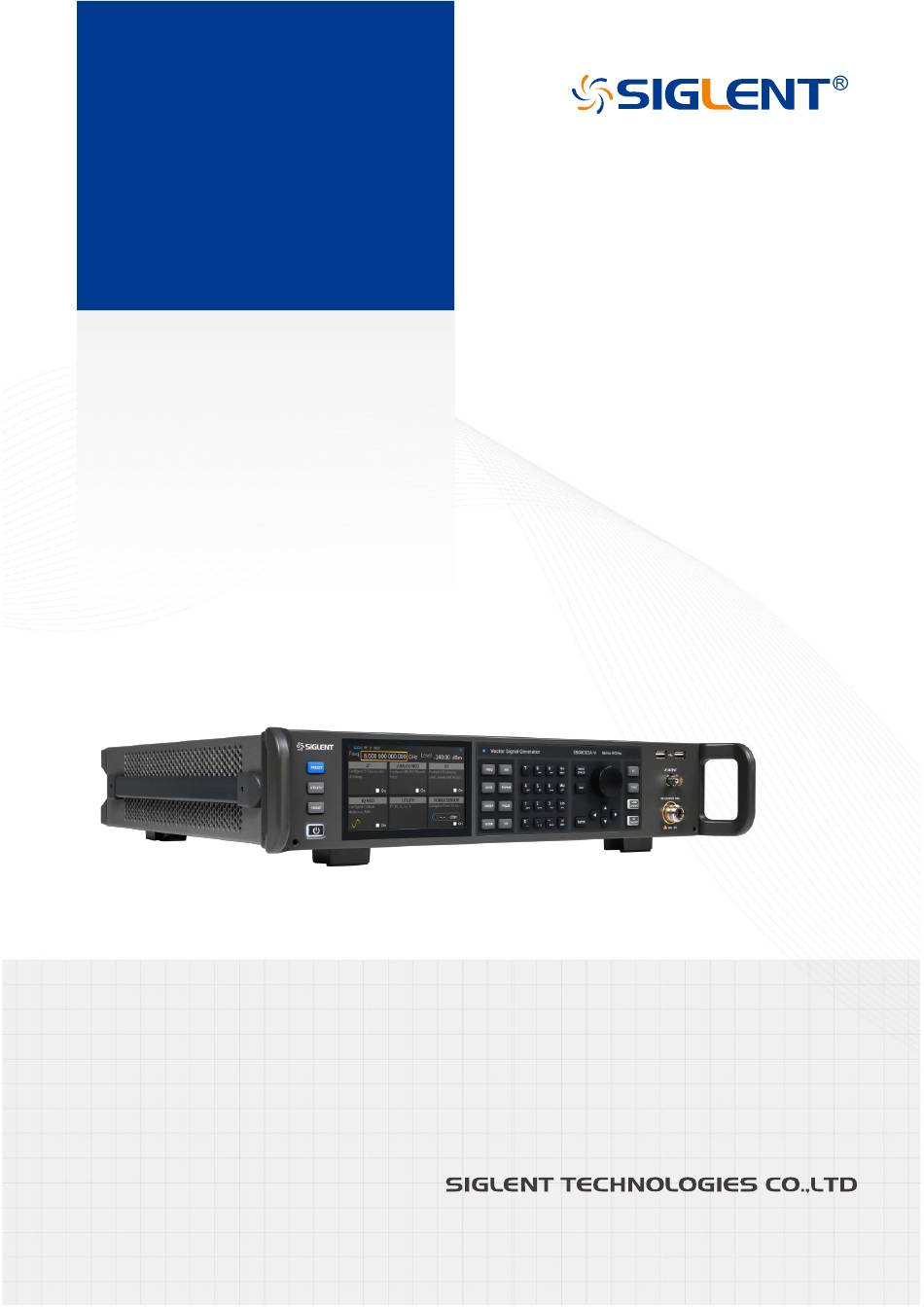

- Page 1 SSG6082A-V Series Vector Signal Generator Quick Start EN01B...
-
Page 3: Copyright Information
Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Table Of Contents
Preparation Before Use ....................... 10 Front Panel Introduction ...................... 12 Rear Panel Introduction ....................... 16 User Interface ........................19 Firmware Operations ......................21 Touch Operation ........................23 Help Information ........................24 Remote Control ........................24 More Information ......................... 25 SSG6082A-V Series Quick Start... -
Page 5: General Safety Summary
Avoid Exposed Circuits and Components Do not touch exposed contacts or components when the instrument's power is on. Use Only the Specified Fuse Do Not Operate Without Covers Do not operate the instrument with covers or panels removed. SSG6082A-V Series Quick Start... -
Page 6: Safety Terms And Symbols
Indicates potential injury or hazards that may happen. CAUTION Indicates potential damage to the instrument or other property that may happen. Symbols used in this product. These symbols may appear on the product: Hazardous Warning Protective Earth Ground Power Switch Voltage Earth Ground SSG6082A-V Series Quick Start... -
Page 7: Allgemeine Sicherheitsübersicht
Sorgen Sie daher für eine gute Belüftung und überprüfen Sie regelmäßig die Ansaugung und den Lüfter. Vermeiden Sie freiliegende Schaltkreise oder Komponenten Berühren Sie keine freiliegenden Kontakte oder Bauteile, wenn das Gerät eingeschaltet ist. Richtige Sicherung verwenden Verwenden Sie nur die angegebene Sicherung. SSG6082A-V Series Quick Start... - Page 8 Wenn Sie vermuten, dass das Gerät beschädigt ist, lassen Sie es vor dem weiteren Betrieb von qualifiziertem Servicepersonal überprüfen. Jegliche Wartung, Einstellung oder Austausch, insbesondere von Schaltkreisen oder Zubehör, muss von SIGLENT autorisiertem Personal durchgeführt werden. Nicht in feuchter Umgebung betreiben Um einen Kurzschluss im Geräteinneren oder einen elektrischen Schlag zu vermeiden, betreiben Sie das...
-
Page 9: Sicherheitsbegriffe Und Symbole
Protective Warning Terminal Ground Power Switch Voltage Earth Ground Wenn Sie solche Symbole auf dem Produkt finden, ziehen Sie das Handbuch zu Rate, um die Art der potenziellen Gefahr und die zu ergreifenden Maßnahmen zu erfahren SSG6082A-V Series Quick Start... -
Page 10: General Care And Cleaning
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement if the instrument has been damaged in shipment. ... -
Page 11: Mechanical Dimensions
Mechanical Dimensions Front View Top View SSG6082A-V Series Quick Start... -
Page 12: Preparation Before Use
> Interface > LAN Setting to set the LAN. The LAN configuration dialog box is shown below. After Connecting to the LAN successfully, the instrument can be remotely controlled by WebServer or by sending SCPI commands via NI-VISA, Telnet, or Socket. SSG6082A-V Series Quick Start... - Page 13 The display in this area is a copy of the instrument display. Using the mouse to operate in the area is equivalent to directly operating on the display of the instrument Click here to perform a screenshot Click here to perform a firmware upgrade SSG6082A-V Series Quick Start...
-
Page 14: Front Panel Introduction
During the parameter editing process, pressing this key will clear the input of the active function area and exit the parameter input state Press this key to return to local control if previously controlling the instrument remotely SSG6082A-V Series Quick Start... - Page 15 English uppercase and lowercase characters, numbers and common symbols (including decimal point, space, negative sign and ! , @, #, $, %, ^, &, *), mainly for editing the name of files or folders and setting parameters (refer to the "parameter setting" section). SSG6082A-V Series Quick Start...
- Page 16 During the parameter editing process, pressing this key will quit editing In the parameter input process, pressing this key will end the parameter input and ENTER add the currently set unit for the parameter SSG6082A-V Series Quick Start...
- Page 17 Output the LF (low frequency) signal. Type: female BNC. Impedance: 50 Ω. RF OUTPUT Output the RF signal. Type: female N. Impedance: 50 Ω. CAUTION Damage Levels: 50 Vdc, +30 dBm maximum RF power at frequency greater than 1 MHz. SSG6082A-V Series Quick Start...
-
Page 18: Rear Panel Introduction
Marker level ≈ 3.3 V (positive polarity selected), Marker level = 0 V (negative polarity selected). SIGNAL VALID When the RF output frequency or amplitude is modified, the RF output connector of the front panel outputs SSG6082A-V Series Quick Start... - Page 19 Used to input an external modulated I baseband signal when the external IQ modulation mode is on. 14. Q_IN Used to input an external modulated Q baseband signal when the external IQ modulation mode is on. 15. I_OUT SSG6082A-V Series Quick Start...
- Page 20 At this point the user interface status bar shows "Ext Ref". When an external reference is lost, exceeded, or disconnected, the instrument automatically switches to the internal reference, and the screen status bar will no longer display "Ext Ref". SSG6082A-V Series Quick Start...
-
Page 21: User Interface
SSG6082A-V output port to the input port of the DUT, thus completing the de-embedding of the device under test (DUT). ⚫ The identification is displayed when a USB disk is inserted. ⚫ LAN: LAN state. Indicates that LAN is successfully connected. Indicates that there is no network connection or network connection failed. SSG6082A-V Series Quick Start... - Page 22 ⚫ IQ MOD: I/Q modulation state and IQ modulation can be set. ⚫ UTILITY: System and file related parameters can be set. POWER SENSOR: Power sensor state and power sensor related parameters can be set. ⚫ SSG6082A-V Series Quick Start...
-
Page 23: Firmware Operations
When a license is successfully installed for a certain function, the remaining times will be shown as “--” and the type of the license will be permanent, which means users have unrestricted access to the function. SSG6082A-V Series Quick Start... - Page 24 Firmware Upgrade Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website www.siglentamerica.com http://www.siglent.com/ens https://www.siglenteu.com Extract and copy the .ADS file into the root directory of a USB disk. Press > Update , and select the update file.
-
Page 25: Touch Operation
The RF signal source provides a 5-inch capacitive touch screen to support various gesture operations, including: Click on the screen parameters or menu to pop up a virtual keyboard where you can edit the parameters. Left or right slide switches menus. Up or down slides the display menu. SSG6082A-V Series Quick Start... -
Page 26: Help Information
The generator supports communication with compatible computers via USB, LAN or GPIB-USB interface. By using these interfaces, in combination with programming languages and/or NI-VISA software, users can remotely control the signal generator. More information can be found in the SSG6082A-V Programming Guide available on the SIGLENT website. SSG6082A-V Series Quick Start... -
Page 27: More Information
You can obtain the instrument information and installation status of all options through UTILITY menu. For more information of this product, please refer to the following manuals (you can also download them from the SIGLENT web site): SSG6082A-V user manual: Provides detailed introductions of the functions of this instrument. - Page 28 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
