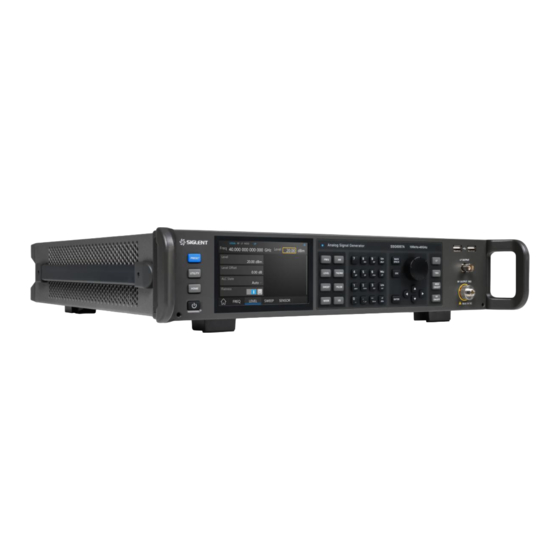

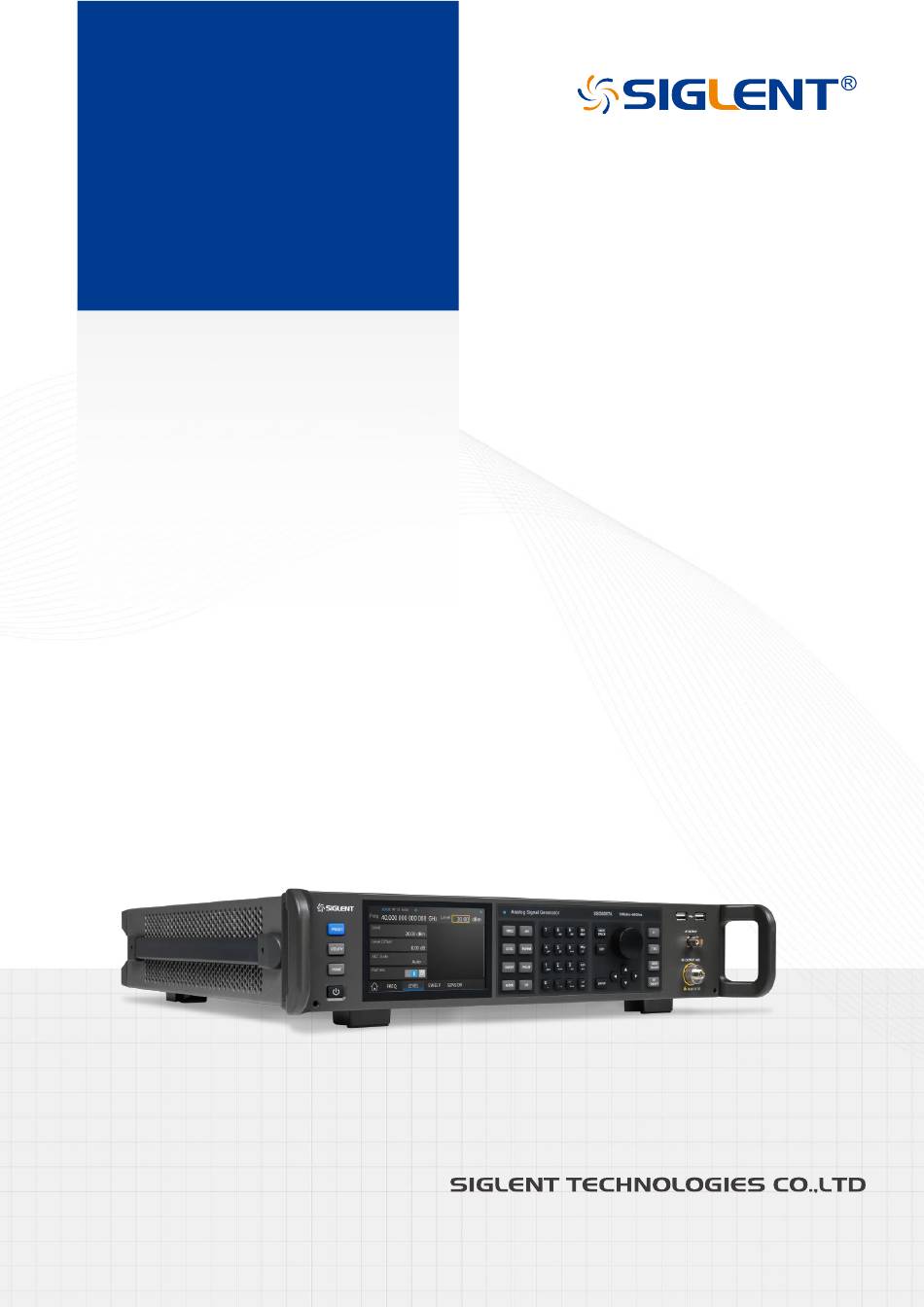

- Page 1 SSG6000A Series Microwave Signal Generator Quick Start EN01B...
-
Page 3: Copyright Information
Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at the company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Table Of Contents
Preparation Before Use ....................... 10 Front Panel Introduction ...................... 12 Rear Panel Introduction ....................... 16 User Interface ........................18 Firmware Operations ......................20 Touch Operation ........................22 Help Information ........................23 Remote Control ........................23 More Information ......................... 24 SSG6000A Series Quick Start... -
Page 5: General Safety Summary
Avoid Exposed Circuits and Components Do not touch exposed contacts or components when the instrument's power is on. Use Only the Specified Fuse Do Not Operate Without Covers Do not operate the instrument with covers or panels removed. SSG6000A Series Quick Start... -
Page 6: Safety Terms And Symbols
Indicates potential injury or hazards that may happen. CAUTION Indicates potential damage to the instrument or other property that may happen. Symbols used in this product. These symbols may appear on the product: Hazardous Warning Protective Earth Ground Power Switch Voltage Earth Ground SSG6000A Series Quick Start... -
Page 7: Allgemeine Sicherheitsübersicht
Sorgen Sie daher für eine gute Belü ftung und überprüfen Sie regelmäßig die Ansaugung und den Lü fter. Vermeiden Sie freiliegende Schaltkreise oder Komponenten Berü hren Sie keine freiliegenden Kontakte oder Bauteile, wenn das Gerät eingeschaltet ist. Richtige Sicherung verwenden Verwenden Sie nur die angegebene Sicherung. SSG6000A Series Quick Start... - Page 8 Wenn Sie vermuten, dass das Gerät beschä digt ist, lassen Sie es vor dem weiteren Betrieb von qualifiziertem Servicepersonal überprü fen. Jegliche Wartung, Einstellung oder Austausch, insbesondere von Schaltkreisen oder Zubehör, muss von SIGLENT autorisiertem Personal durchgeführt werden. Nicht in feuchter Umgebung betreiben Um einen Kurzschluss im Geräteinneren oder einen elektrischen Schlag zu vermeiden, betreiben Sie das...
-
Page 9: Sicherheitsbegriffe Und Symbole
Protective Warning Terminal Ground Power Switch Voltage Earth Ground Wenn Sie solche Symbole auf dem Produkt finden, ziehen Sie das Handbuch zu Rate, um die Art der potenziellen Gefahr und die zu ergreifenden Maßnahmen zu erfahren SSG6000A Series Quick Start... -
Page 10: General Care And Cleaning
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement if the instrument has been damaged in shipment. ... -
Page 11: Mechanical Dimensions
Mechanical Dimensions Front View Top View SSG6000A Series Quick Start... -
Page 12: Preparation Before Use
> Interface > LAN Setting to set the LAN. The LAN configuration dialog box is shown below. After Connecting to the LAN successfully, the instrument can be remotely controlled by WebServer or by sending SCPI commands via NI-VISA, Telnet, or Socket. SSG6000A Series Quick Start... - Page 13 The display in this area is a copy of the instrument display. Using the mouse to operate in the area is equivalent to directly operating on the display of the instrument Click here to perform a screenshot Click here to perform a firmware upgrade SSG6000A Series Quick Start...
-
Page 14: Front Panel Introduction
During the parameter editing process, pressing this key will clear the input of the active function area and exit the parameter input state Press this key to return to local control if previously controlling the instrument remotely SSG6000A Series Quick Start... - Page 15 English uppercase and lowercase characters, numbers and common symbols (including decimal point, space, negative sign and ! , @, #, $, %, ^, &, *), mainly for editing the name of files or folders and setting parameters (refer to the "parameter setting" section). SSG6000A Series Quick Start...
- Page 16 During the parameter editing process, pressing this key will quit editing In the parameter input process, pressing this key will end the parameter input and ENTER add the currently set unit for the parameter SSG6000A Series Quick Start...
- Page 17 Output the RF signal. Type: female 2.92 mm. Impedance: 50 Ω. CAUTION Damage Levels: 0 Vdc, +30 dBm maximum RF power at frequency greater than 1 MHz, +25 dBm maximum RF power at frequency greater than 6 GHz. SSG6000A Series Quick Start...
-
Page 18: Rear Panel Introduction
At this point the user interface status bar shows "Ext Ref". When an external reference is lost, exceeded, or disconnected, the instrument automatically switches to the internal reference, and the screen status bar will no longer display "Ext Ref". SSG6000A Series Quick Start... - Page 19 When PULSE trigger source is "Int ", the connector can be used to output the trigger signal. When the RF Sweep, LF Sweep, or PULSE trigger source is "Ext", the connector is used to input the external trigger signal. 11. Ground The system ground terminal. SSG6000A Series Quick Start...
-
Page 20: User Interface
Indicates that LAN is successfully connected. Indicates that there is no network connection or network connection failed. RF frequency RF output frequency setting. When the sweep type is "frequency" or "frequency & amplitude", the frequency scanning progress bar is displayed. SSG6000A Series Quick Start... - Page 21 RF: RF output state. Frequency and level can be set. SWEEP: RF Sweep state and related parameters can be set. UTILITY: System and file related parameters can be set. POWER SENSOR: Power sensor state and power sensor related parameters can be set. SSG6000A Series Quick Start...
-
Page 22: Firmware Operations
When the remaining time of a certain function is zero, the function will be disabled. When a license is successfully installed for a certain function, the remaining times will be shown as “--” and the type of the license will be permanent, which means users have unrestricted access to the function. SSG6000A Series Quick Start... - Page 23 Firmware Upgrade Follow this procedure to update the instrument firmware: Download the firmware package from an official SIGLENT website www.siglentamerica.com http://www.siglent.com/ens https://www.siglenteu.com Extract and copy the .ADS file into the root directory of a USB disk. Press > Update , and select the update file.
-
Page 24: Touch Operation
The RF signal source provides a 5-inch capacitive touch screen to support various gesture operations, including: Click on the screen parameters or menu to pop up a virtual keyboard where you can edit the parameters. Left or right slide switches menus. Up or down slides the display menu. SSG6000A Series Quick Start... -
Page 25: Help Information
The generator supports communication with compatible computers via USB, LAN or GPIB-USB interface. By using these interfaces, in combination with programming languages and/or NI-VISA software, users can remotely control the signal generator. More information can be found in the SSG6000A Programming Guide available on the SIGLENT website. SSG6000A Series Quick Start... -
Page 26: More Information
You can obtain the instrument information and installation status of all options through UTILITY menu. For more information of this product, please refer to the following manuals (you can also download them from the SIGLENT web site): SSG6000A user manual: Provides detailed introductions of the functions of this instrument. - Page 28 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
