Multi generator synchronization
July 19, 2019
1. Introduction
Multi-channel function generators are useful in many situations. For example, in Radar testing the
generator needs to output several phase coherent signals and for the phase to be independently
adjustable for each signal. In 3-phase power line harmonic distortion testing, a 4 channel generator is
required to simulate the multiple voltages and currents.
1.1 Problem
A standalone multi-channel generator can be very expensive.
1.2 Solution
Siglent provides the Multi-Device Synchronization function in the SDG1000X, SDG2000X, and SDG6000X
generators. This allows synchronization among several units in order to output signals with adjustable
steady phase relationships. Thus saving on cost.
2. Setup of Synchronization
2.1 Wiring
Multi-Device Synchronization will require the use of the Aux In/Out and 10 MHz In/Out rear-panel interfaces
to implement the synchronization. First, all the generators' Aux In/Out BNC connectors need to be
connected together. Next, connect the Master unit's 10 MHz Out to the Slave unit's 10 MHz In.
Please note that the SDG6000X family has separate 10 MHz In/Out outputs, so more than two units can
be synchronized. The wiring interconnection concept is shown in Figure 1.
© 2018 SIGLENT TECHNOLOGIES | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDG1000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGLENT SDG1000 Series

  • Page 1 A standalone multi-channel generator can be very expensive. 1.2 Solution Siglent provides the Multi-Device Synchronization function in the SDG1000X, SDG2000X, and SDG6000X generators. This allows synchronization among several units in order to output signals with adjustable steady phase relationships. Thus saving on cost.
  • Page 2 1) First connect two units’ Aux In/Out with BNC cable. See in Figure 2. Figure 2. Connect SDG2000X and SDG6000X Aux In/Out 2) Next connect the SDG6000X 10 MHz Out port with the SDG2000X 10 MHz In/Out port, as shown in Figure 3. © 2018 SIGLENT TECHNOLOGIES | 2...
  • Page 3: Parameter Settings

    In this example we are setting all 4 channels as a 1 kHz, 4 Vpp square wave. CH3, CH4 signals viewed on the SDS5000X oscilloscope are output by the Slave generator, note that the phase is drifting. Open the Display/ Persist function to track it on the scope, as shown in Figure 4. © 2018 SIGLENT TECHNOLOGIES | 3...

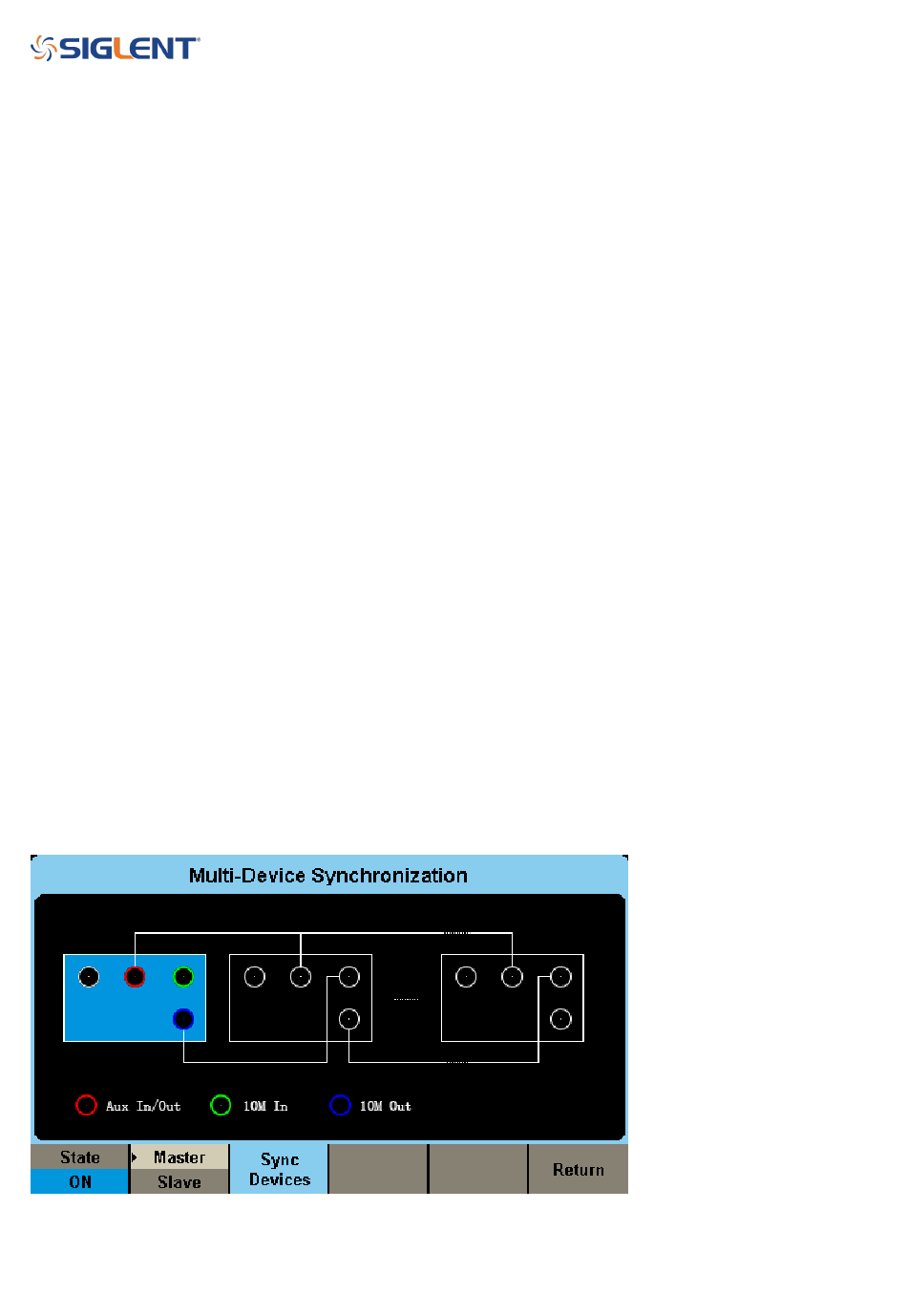

  • Page 4 2) Press the soft key under the screen to turn on/off this function and select it as either the Master or Slave. The Multi-Devices Synchronization menu will appear when turned on. When ”Master” appears © 2018 SIGLENT TECHNOLOGIES | 4...
  • Page 5 1) Enter into the Multi-Device Synchronization menu. Select it as Slave, Slave will be shaded in blue, as in Figure 7. As the device is set to a slave device its clock source is automatically set to external. Figure 7. Select the unit as Slave device © 2018 SIGLENT TECHNOLOGIES | 5...
  • Page 6 Slave Device Delay, ”Sync Devices” must be pressed to activate the new settings. 3. Measure on an Oscilloscope 3.1 Slave Device Delay measurement 1) Turn on Synchronization on both units, measure the Skew between CH1 and CH3. As in Figure 9. © 2018 SIGLENT TECHNOLOGIES | 6...
  • Page 7 See Figure 10. Figure 10. Eliminate the Slave Delay 3.2 Adjust phase relationship Set CH1 Phase as 0 degree, CH2, CH3, CH4 Phase as 180, 270, 360 degrees, respectively. The result is shown in Figure 11. © 2018 SIGLENT TECHNOLOGIES | 7...
  • Page 8 Figure 11. Adjust phase relationship © 2018 SIGLENT TECHNOLOGIES | 8...
  • Page 9 Asian Headquarters SIGLENT TECHNOLOGIES CO., LTD. Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101, China. Tel:+ 86 755 3688 7876 Fax:+ 86 755 3359 1582 sales@siglent.com www.int.siglent.com © 2018 SIGLENT TECHNOLOGIES | 9...
