SIGLENT SDG6000X Series Quick Start Manual

Pulse/arbitrary waveform generator

Hide thumbs

Table Of Contents

Quick Links

Download this manual

SDG6000X Series

Pulse/Arbitrary

Waveform Generator

Quick Start

Table of Contents

Need help?

Do you have a question about the SDG6000X Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGLENT SDG6000X Series

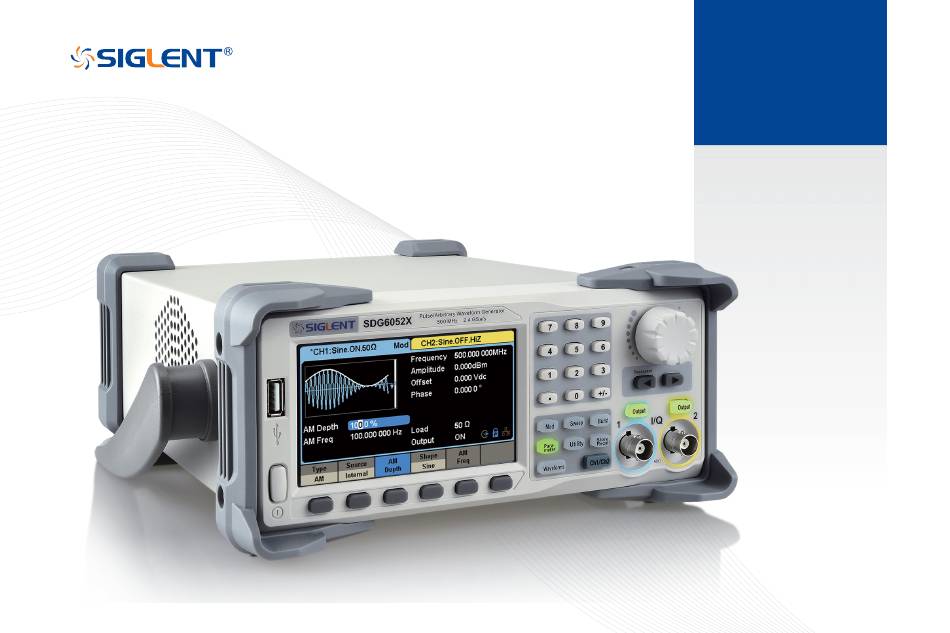

Page 1 SDG6000X Series Pulse/Arbitrary Waveform Generator Quick Start...
Page 2 SIGLENT TECHNOLOGIES CO., LTD. All rights reserved. Information in this publication replaces all previous corresponding material. SIGLENT reserves the rights to change the specifications and the price. Without permission, contents in this manual are not allowed to be copied, extracted or translated.
Page 3 General Safety Summary Carefully read the following safety precautions to avoid any personal injuries or damages to the instrument and any product connected to it. To avoid potential hazards, please use the instrument as specified. Only the qualified technician can service the instrument. Avoid fire or personal Injure.
Page 4: Table Of Contents
Content Copyriht..............General Safety Summary.......... Adjust the Handle............ The Front Panel ............The Rear Panel............Touch Screen Display..........Use Built-In Help System.......... Introduction of EasyWaveX........Introduction of EasyIQ..........Contact SIGLENT............. 1-SDG6000X Quick Start...
Page 5: Adjust The Handle
Adjust the Handle When using the instrument, users can adjust the handle to a needed position which makes it easier to operate and observe. Carrying Position Horizontal Position Figure 1 Adjust the Handle SDG6000X Quick Start -2...
Page 6: The Front Panel

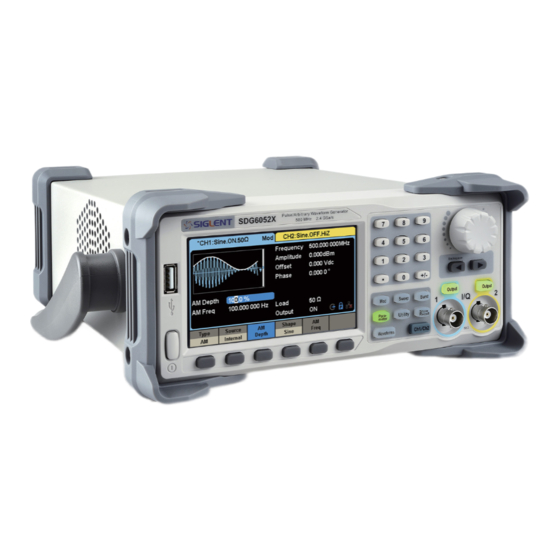

The Front Panel 1. Power Key 2. USB Host 3. Touch Screen Display 4. Numeric Keyboard 5. Knob 6. Arrow Keys 7. CH1/CH2 Control/ Output Port 8. Channel Select Key 9. Function Keys 10. Waveform Option 11. Menu Keys Figure 2 SDG6000X Front Panel 3-SDG6000X Quick Start...
Page 7 1.Power Key This key is used to turn on/off the AWG. When the power key is off, the AWG is in the power off state. 2.USB Host SDG6000X supports USB memory devices (U-Disks) using the FAT format. An external USB memory device can be used to store and recall waveforms or state files for use with the instrument.
Page 8 7.Channel Control Area CH1 Control/Output Key The Output key on the left is used to turn on/off the CH1 output. The nominal output impedance of the BNC connector is 50Ω. When pressing Output (the key backlight turns on), the connector outputs the waveform according to the current configuration of CH1. CH2 Control/Output Key The Output key on the right is used to turn on/off the CH2 output.
Page 9 9.Function Keys Mod ----Modulation This key is used to enable the modulation screen and allow for several types of modulation. It generates AM, DSB-AM, FM, PM, ASK, FSK and PWM modulated signals. • It supports “Internal” and “External” modulation sources. •...
Page 10 Utility ----Utility Functions and System Settings This key is used to set system parameters and check version information. • Press this key and then press the help softkey to obtain built-in help information about the product. • The corresponding key backlight will turn on when this function is selected. Store/Recall ----Store and Recall Through this key, users can store/recall the instrument’s state or arbitrary waveform data edited by users.
Page 11 Waveforms ---- Ramp Provide ramp waveform output which ranges from 1 μHz to 5 MHz. • The backlight of Waveforms will turn on when this function is selected. • “Frequency/Period”, “Amplitude/High level”, “Offset/Low level”, “Phase” and “Symmetry” of the ramp waveform can be adjusted. Waveforms ---- Pulse Provide pulse waveform output with frequencies that range from 1 μHz to 150 MHz.
Page 12 Waveforms ---- IQ Provide IQ waveform output with center frequencies ranging from 0 Hz to 500 MHz. • Support modulation types including 2ASK, 4ASK, 8ASK, BPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 2FSK, 4FSK, 8FSK, 16FSK, MSK, Multi-tone •...
Page 13: The Rear Panel
The Rear Panel Figure 3 SDG6000X Rear Panel SDG6000X Quick Start -10...
Page 14 1.Counter BNC connector. The input impedance is 1MΩ. This connector is the input connection to the frequency counter. 2.Aux In/Out BNC connector. The function of this connector is determined by the current operating mode of the instrument. • Sweep/Burst trigger signal input port of external trigger. •...
Page 15 6.AC Power Supply Input SDG6000X can accept two different types of AC input power. AC power: 100-240V, 50/60Hz or 100-120V, 400Hz Fuse: 1.25A, 250V 7.USB Device Used when connecting the instrument to an external computer to allow waveform editing (such as EasyWaveX and EasyIQ) and remote control. 8.LAN Interface Through this interface, the generator can be connected to your computer or network for remote control.
Page 16: Touch Screen Display
Touch Screen Display SDG6000X can only display the parameters and waveform type of one channel at a time. The picture below shows the interface when CH1 has been configured to source an AM modulation of a sine waveform. The information displayed may vary depending on the function selected. The entire screen of the SDG6000X is a touch screen.
Page 17 1.Waveform Display Area Shows the currently selected waveform of each channel. The key backlight will turn on when this area of the touch screen is pressed. 2. Channel Status Bar Indicates the selected status and output configuration of the channels. Touch this area of the screen to switch to the corresponding channel. If you touch again, the shortcut menus of function keys will be recalled: Mod、Sweep、Burst、Parameter、Utility and Store/Recall.
Page 18 Clock Source Icon Indicates the clock source is internal Indicates the clock source is external Indicates the clock source is external, but not available 6. Menu Touch here for the menu corresponding to the displayed function. For example, the picture above shows the parameters of “AM modulation”. After touching the menu on the touch screen to choose the corresponding parameter, use number keys or knob to change the parameter value.
Page 19: Use Built-In Help System
Use Built- In Help System To obtain built-in help information of the product, please press Utility key first, then press Page 1/2 and Help, use the knob to choose the help item you want, finally press Select to obtain help information. SDG6000X Quick Start -16...
Page 20: Introduction Of Easywavex
EasyWaveX The SDG6000X series includes arbitrary waveform editing software called EasyWaveX. This software is a platform for easily creating, editing, and transferring waveforms to the generator. It provides 11 standard waveforms such as Sine, Square, Ramp, Pulse, Noise and DC, which meets most engineers’ basic needs.
Page 21: Introduction Of Easyiq
Introduction of EasyIQ The IQ waveform editing software EasyIQ supports generating IQ data with 2ASK, 4ASK, 8ASK, BPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 2FSK, 4FSK, 8FSK, 16FSK, MSK, Multi-tone modulation, and custom data to the instrument. Figure 6 EasyIQ Interface SDG6000X Quick Start -18...
Page 22: Contact Siglent
Contact SIGLENT Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com USA:...
Page 23 www.siglent.com...

This manual is also suitable for:

Sdg6032x Sdg6022x Sdg6052x
