Summary of Contents for Bartscher 105.932

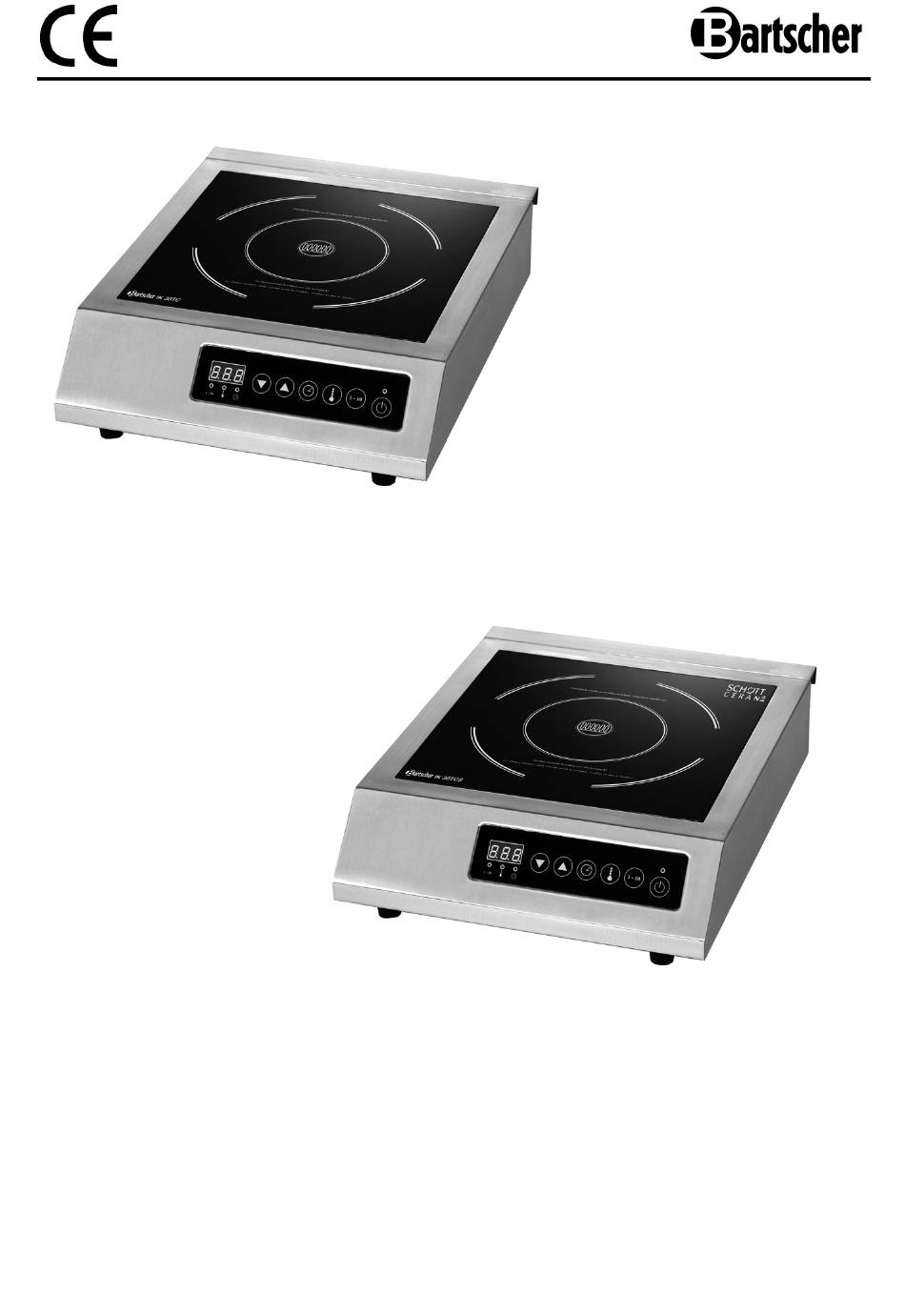

- Page 1 IK 30TC / 105.932 IK 30TCS / 105.932S V1/1110...
-
Page 2: Table Of Contents
6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 6.3 Safety instructions for maintenance 7. Possible Malfunctions 31-32 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 17 -... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device. -
Page 7: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Touch Control panel ② ⑤ ③ ④ ⑥ ⑦ ① ⑧ ⑪ ⑩ ⑨ ① LED Display ② button: to reduce the time, temperature or power ③ button: to increase the time, temperature or power ④ Time set button ⑤... -
Page 9: Technical Specifications
4.2 Technical specifications Name Induction cooker 105.932 / IK 30TC 105.932S / IK 30TCS Article no: Cooking surface: glass Schott glass Temperature range: 60° to 240° C Power levels: 1 - 10 (400 to 3000 W) Power: 230 V ~ 50 Hz... -
Page 10: Safety Instructions
• The device will detect if the appropriate cookware is placed on the heating plate. If the cookware is not appropriate for induction hotplates, energy will not flow. The device will turn off after approx. 30 seconds. • When operating the cooking zone with empty cookware, a temperature sensor turns it off automatically. -
Page 11: Suitable And Unsuitable Cookware
• We recommend not placing any metal kitchen utensils, cookware or pan lids, knives or other metal objects on the cooking zone. These may heat up when the device is turned on. • Remember that items of jewelry such as rings, watches etc. can get hot if they are close to the heating surface. -
Page 12: Installation And Connection
2.7 litres ● Ø 18 cm ● height 11.0 cm 5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm Bartscher order no. A130.442 Unsuitable cookware pots/pans with a diameterof less than 12 cm;... -
Page 13: Operating
• The device is not adaptable for use with an external timer or remote control. • The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips. •... - Page 14 2. Setting the temperature Press the button once. The preset temperature level 120° C is displayed and the device turns on. With the button you can change at any time the setting in the range of 60 – 240° C. (Temperature range: 60, 80, 100, 120, 140, 160, 180, 200, 220 and 240°...
-
Page 15: Cleaning And Maintenance
CAUTION! Do not place empty cookware on the cooking surface. Heating an empty pot or pan will activate the overheating protection mechanism, a signal will sound and the device will turn itself off. The LED will display the error message "E05". If this occurs, disconnect the device from the outlet and leave it for a few minutes to cool. -
Page 16: Safety Instructions For Maintenance
6.3 Safety instructions for maintenance o Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers. o In case of damage or malfunction, please contact your stockist or our customer service centre. -
Page 17: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
